Alpitronic hypercharger HYC50 - Overvoltage Protection; Figure 50: Attach Touch Protection

HYC50 - Operation and Installation Guide
Version 2-2
4 HYC50 installation and commissioning
Page 67 of 102
All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

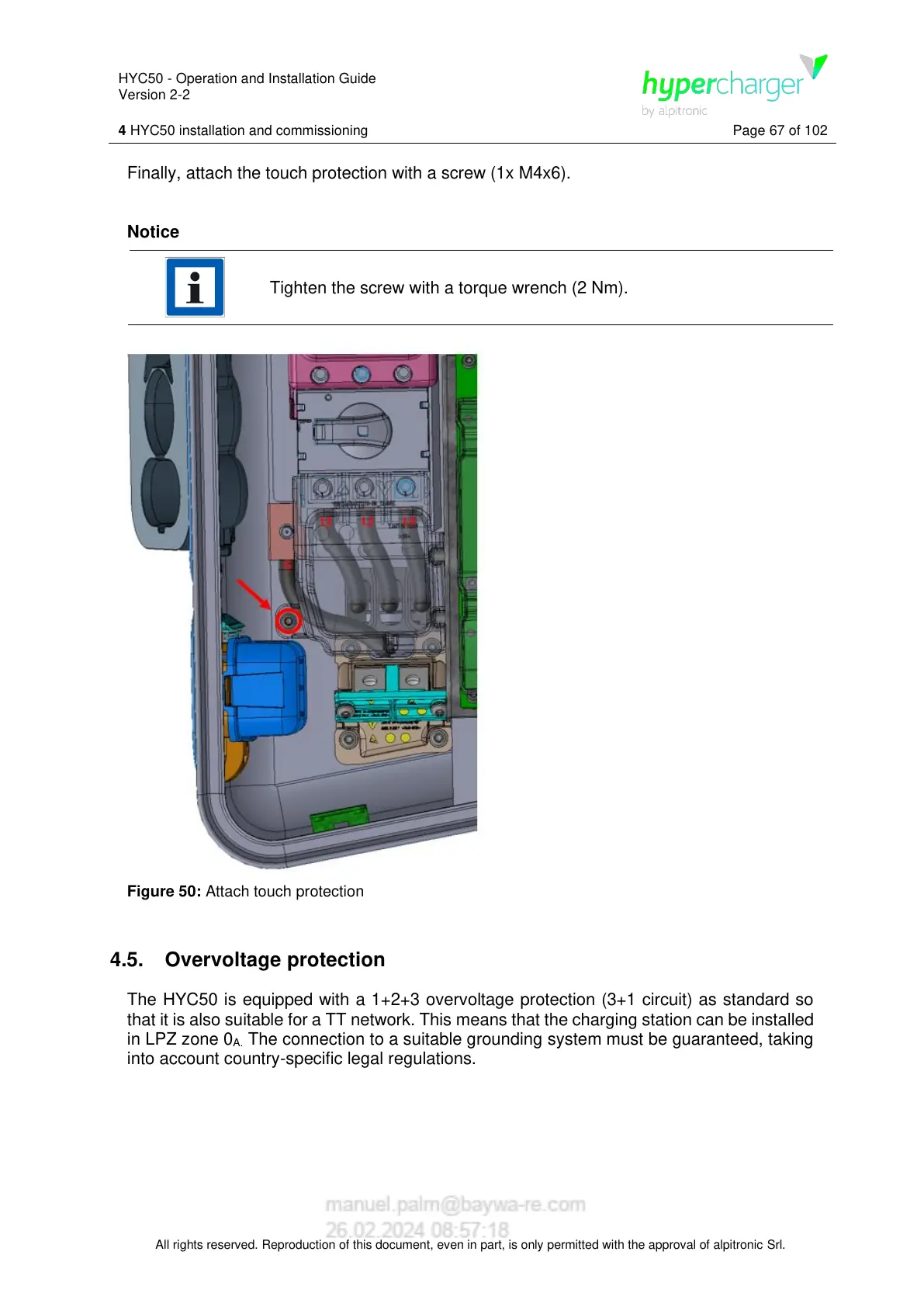

Finally, attach the touch protection with a screw (1x M4x6).
Notice
Tighten the screw with a torque wrench (2 Nm).
Figure 50: Attach touch protection
4.5. Overvoltage protection
The HYC50 is equipped with a 1+2+3 overvoltage protection (3+1 circuit) as standard so
that it is also suitable for a TT network. This means that the charging station can be installed
in LPZ zone 0
A.
The connection to a suitable grounding system must be guaranteed, taking
into account country-specific legal regulations.
