HYC50 - Operation and Installation Guide

Version 2-2

Page 80 of 102

6 Operation of the HYC50

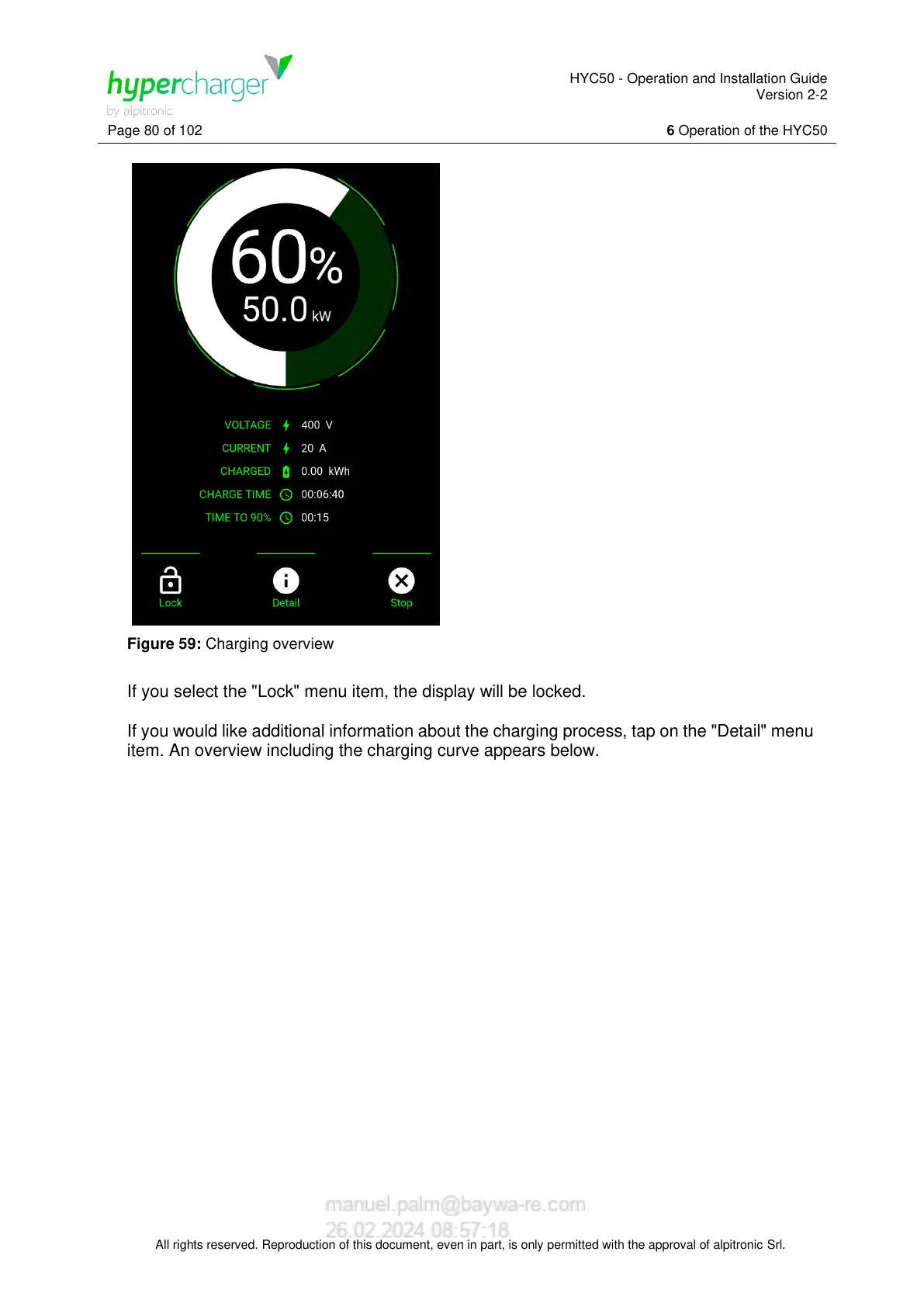

Figure 59: Charging overview

If you select the "Lock" menu item, the display will be locked.

If you would like additional information about the charging process, tap on the "Detail" menu

item. An overview including the charging curve appears below.
