HYC50 - Operation and Installation Guide

Version 2-2

Page 86 of 102

6 Operation of the HYC50

As soon as you are authorised to stop charging, you will be prompted to unplug the charging

cable from the vehicle. Plug it back into the designated cable plug holder on the charging

station.

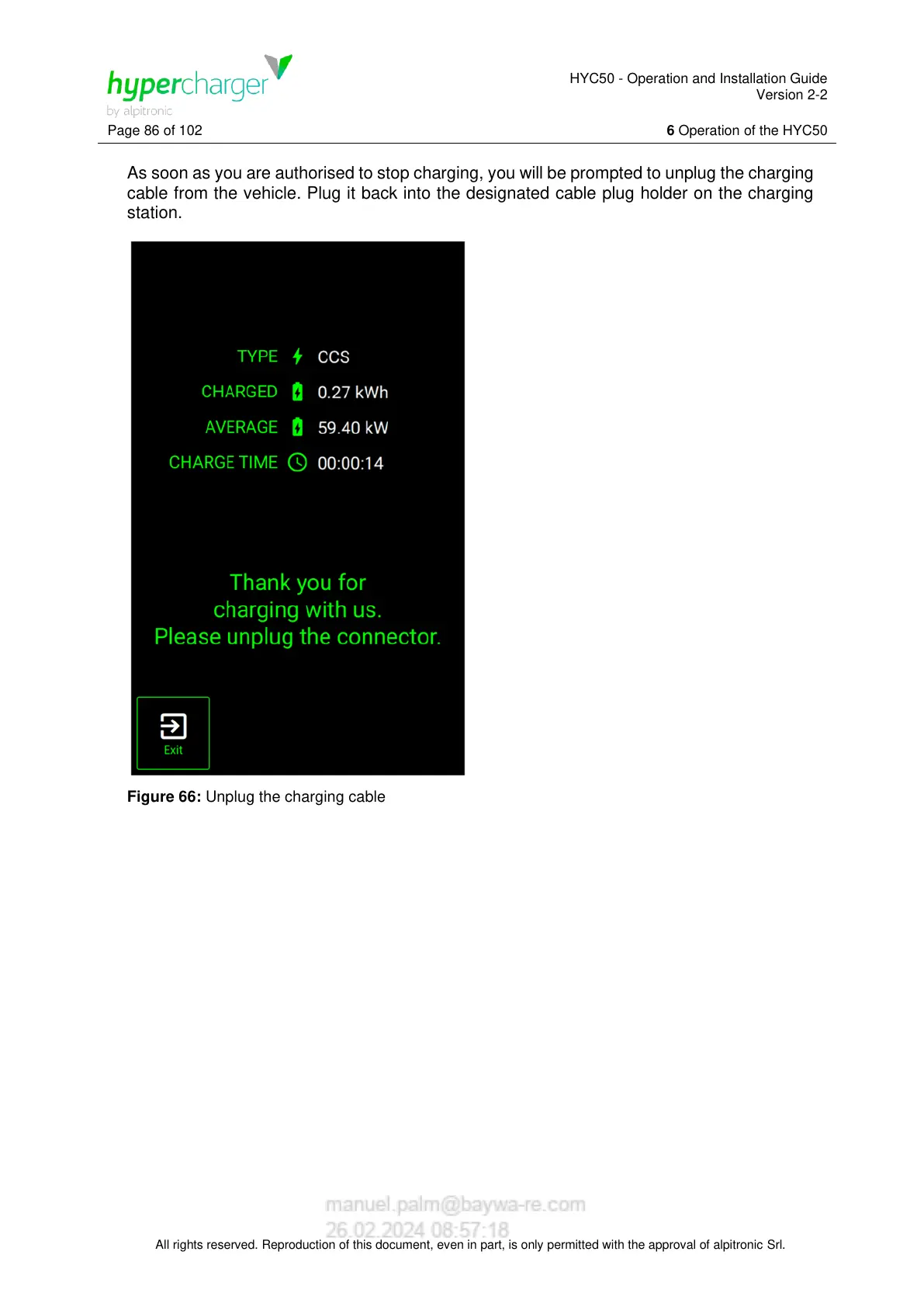

Figure 66: Unplug the charging cable
