120 Series 90B ANNUNCIATOR INSTALLATION AND CONFIGURATION MANUAL
windows (Enable WEB-PB) or have the web pushbuttons only control the web page (Disable WEB-
PB). In all cases, the pushbuttons pressed on the Annunciator itself or wired to the rear terminals will
control the web page as well.
Home Page Editable Fields
In this section, please refer to the links directly below the top bar. The items on the right, Serial
Number, Number of Device Inputs and Software/Firmware Version, are configured at the factory.
Links that you can edit are underlined, such as: Station ID, Device ID, Who to contact, Customer.
When you click on a link in this section, a small dialog box will appear where you can enter the
appropriate information (see Fig. E–3). After typing in a name, for instance, you simply click the save
button. All editable fields, i.e. Station ID, may contain up to 32 alphanumeric characters.

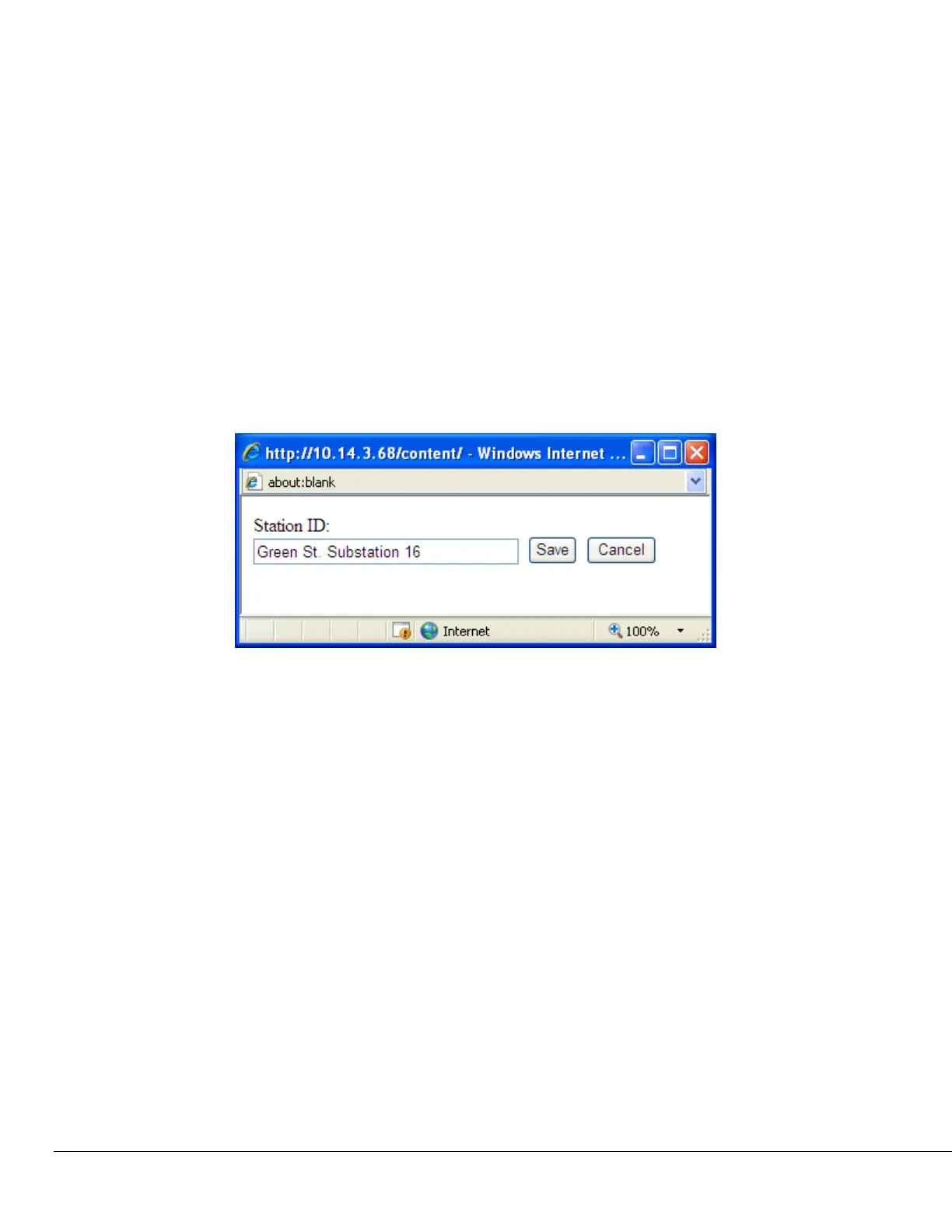

Figure E–3. Pop-up Dialog Box
Station ID
Click this link to enter a specific location name for the unit. i.e. Green St. Substation 16. This name
will be reported in the Active Alarms and Events list, event download, ASCII output and printouts.
Device ID
This name is more specific, i.e. to identify a single unit in a substation containing many units. It
should be used to identify a SERIES 90B unit or group of alarms connected to the unit. i.e. SERIES
90B Device 1 or Breaker XYZ. The device ID will be reported in the Alarms and Events list, event
download, ASCII output and printouts.
Who to Contact
This field is used to identify a contact such as in case of emergency.
Customer
Here is where you enter the customer’s name.
