Integral Power Supply
The Integral Power Supply is installed in slot 5 of the I/O or CSM Cell depending
on the configuration and input power required. The Integral Power Supply
provides a 5VDC output used for the Annunciator Logic and LED’s. There are
three different types of Integral Power Supplies available:
24VDC
48VDC
Universal 125VDC/120/230VAC.
Integral Power Supply Cell Locations
Customer Input Power
CSM Cell with
Integral
Pushbuttons
CSM Cell with
one I/O
Module
I/O Cell with
one I/O
Module
I/O Cell with
two I/O
Modules
24 VDC
X
X
X
X
48 VDC
X
X
X
X
125 VDC or 120/230
VAC
X
X

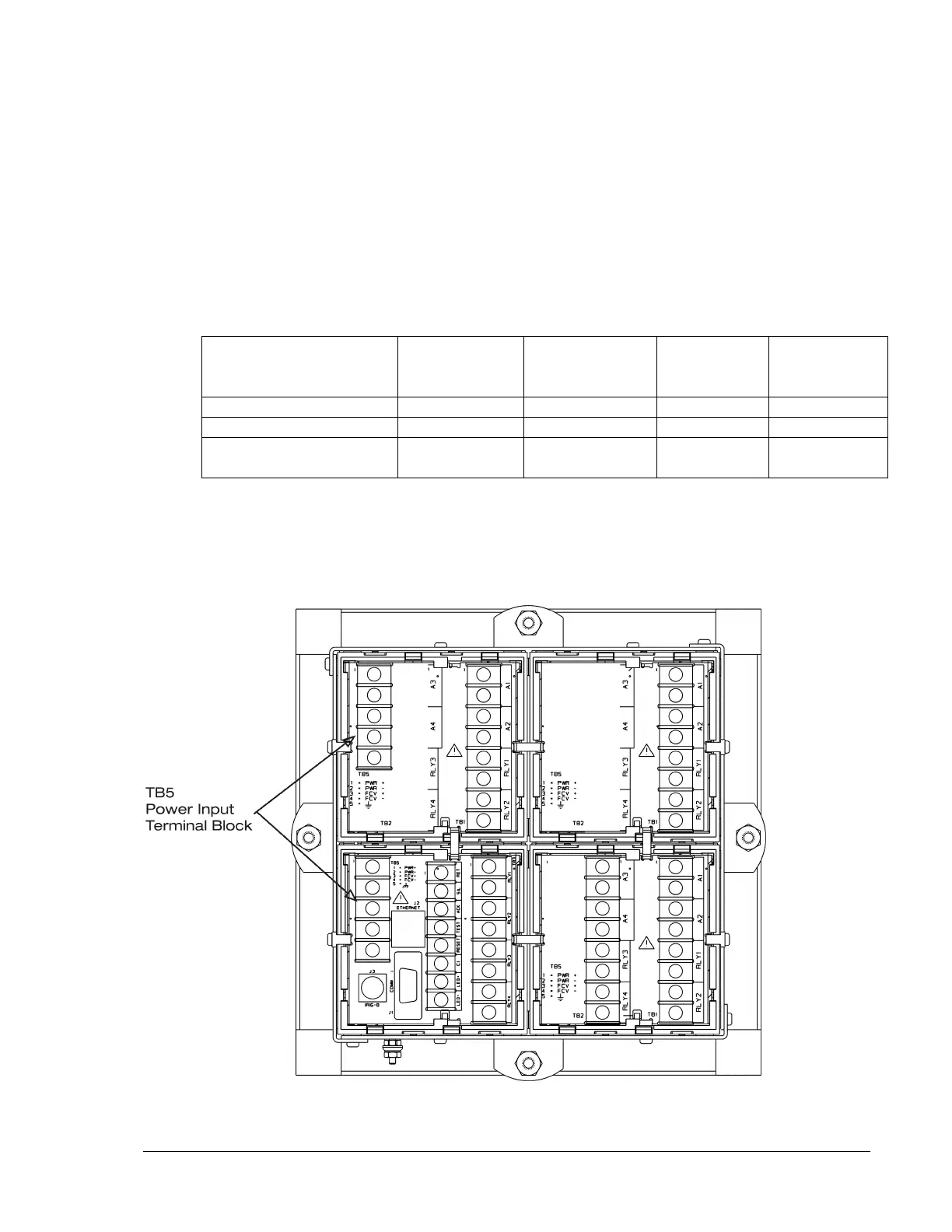

Based on the size of the system, there could be several integral power supplies
within the Annunciator. The location of integral power supplies within the
Annunciator can be noted by the five position terminal block, TB5.
