2 Series 90B ANNUNCIATOR INSTALLATION AND CONFIGURATION MANUAL
Module Cell
The Annunciator is a modular construction made from individual cells, allowing
any size high or wide up to 13. All cards are removable from the front of the unit,
after removing the window or pushbutton assembly.

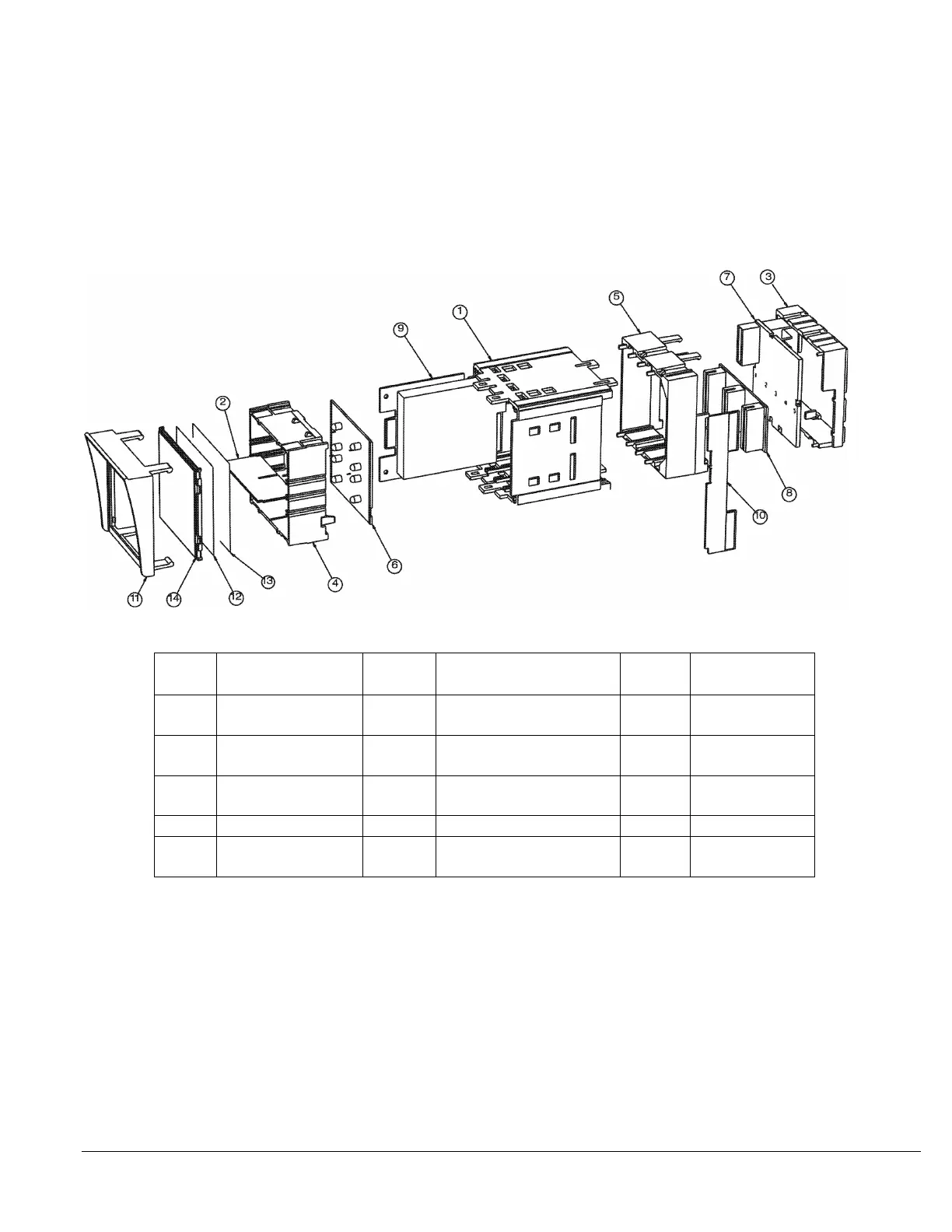

Cell Assembly
Item
#
Part
Description
Item #
Part Description
Item #
Part
Description
1
Module Cell
6
Display Board
11
Window
Housing
2
Window Divider
7
Back-plane Assembly
12
Window
Legend
3
Back-plane
Housing
8
Interconnect Board
13
Color Diffuser
4
Display Housing
9
Module (see list)
14
Window
5
Rear Cell
Housing
10
Row Interconnect
Board
Available Modules:
 I/O Input / Output Module, with optional Repeat Relays
 LED LED Display Module
 CSM Common Service Module & Sequential Events Recording
CSM
 COMM Communication Module: Serial & Ethernet
 PS Power Supply: Integral AC/DC Universal, Integral DC/DC
 FCV Supply Field Contact Voltage Supply: Integral AC/DC Universal
 IRIG-B Time Synchronization Input Module used for Sequential
Events Recording
 Ground Fault Ground Fault Detector Module
