22 Series 90B ANNUNCIATOR INSTALLATION AND CONFIGURATION MANUAL

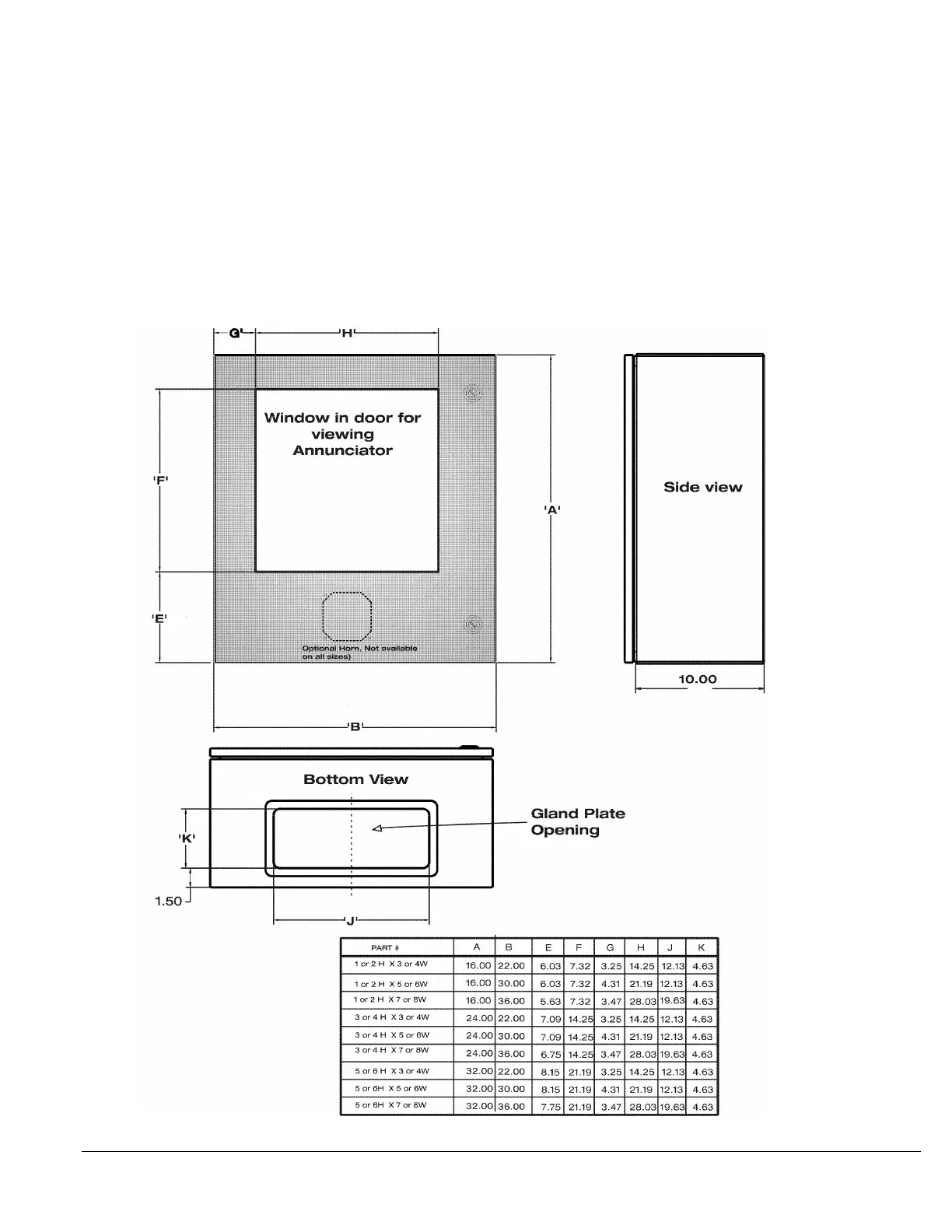

Nema Enclosure (option N4, N4PB)
The dimensions given in the chart below are for both options (N4, N4PB). Only
the N4 is shown. Both options may also include a horn mounted on the face of
the door. The Annunciator is mounted on a swing frame behind the door and is
viewed through a window installed in the door. The swing frame allows access
to the wiring behind the Annunciator.
Caution: In order to prevent tipping, the NEMA enclosure must be securely
fastened to a surface before attempting to open the door or the swing panel.
