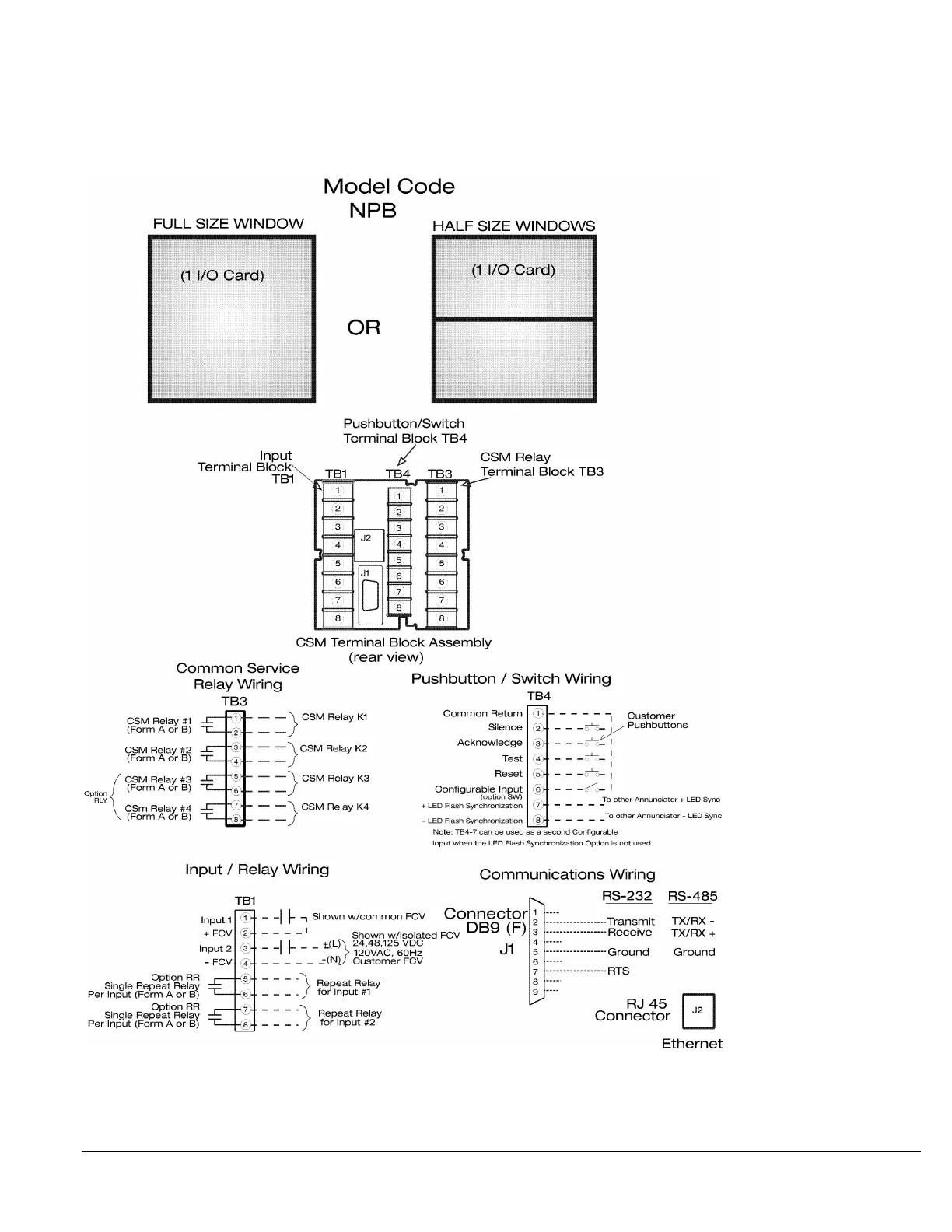

Com
m
on
Service Wiring (wit
h I/O Modules)
Option Code LPPB and NPB
NOTE: W
hen wiring an external horn o
r other audible
device to the CSM ou
tput relays,
it is recomme
nded that th
e interconne
ct wires be physically isolated from an
y other
input or outp
ut wiring.
