18 Series 90B ANNUNCIATOR INSTALLATION AND CONFIGURATION MANUAL
Field Contact Voltage Supply Modules
Several Integral FCV Supply Modules are available depending on the system
input power and field contact voltage selection. There are no configurable
jumpers on these modules. Refer to the power connection in this manual for the
power supply images.
IRIG-B Module
The optional IRIG-B Module is used for External time synchronization of the
SER Option. This must be installed in Card Slot 5 of the CSM Cell. (When used,
the Integral Power Supply must be moved to a different cell.)
J P 1, JP 2
AC/DC
1
2
3

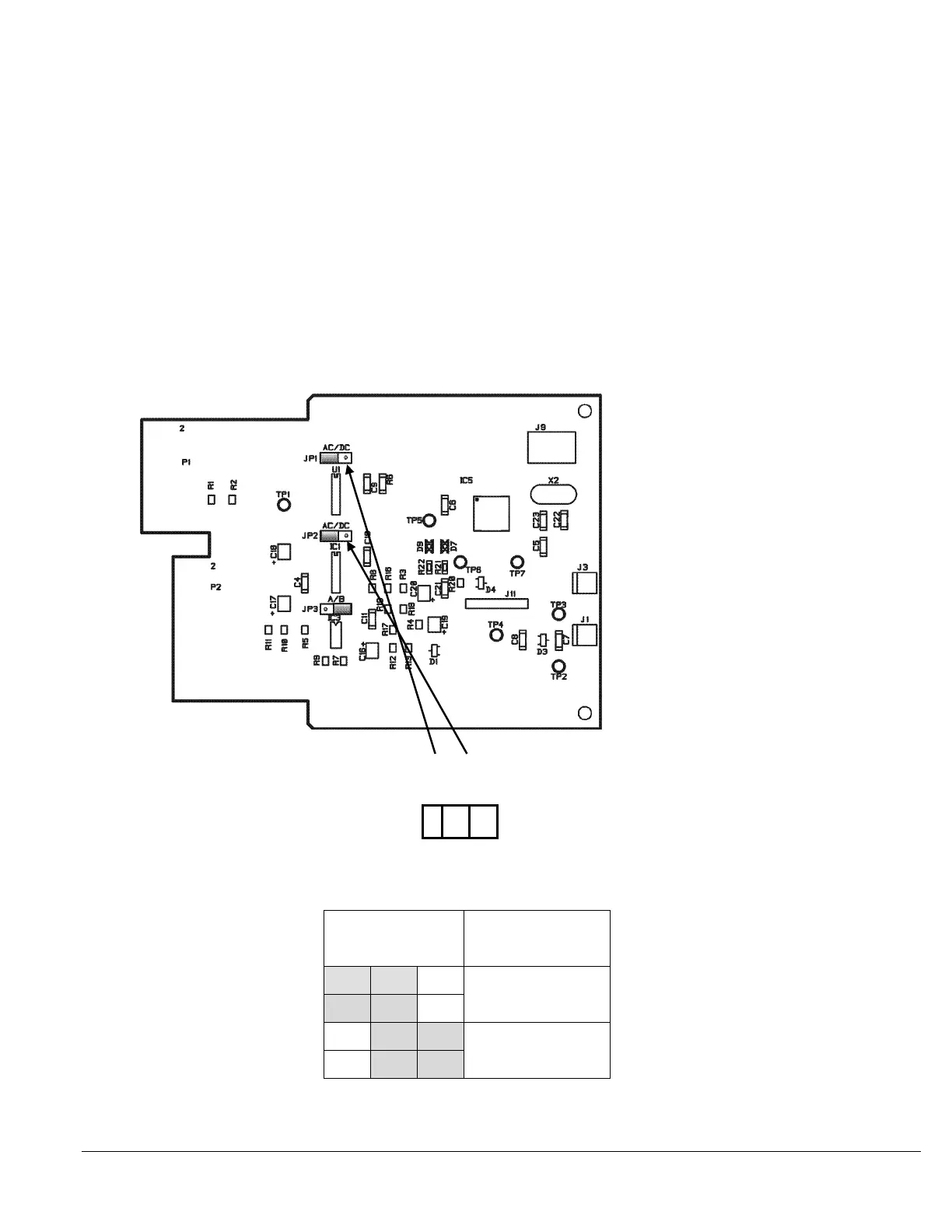

IRIG-B MODULE SETUP
Jumper
Position
INPUT TYPE
JP1
1
2
3
Modulated(AC)
JP2
1
2
3
JP1
1
2
3
Demodulated (DC)
JP2
1
2
3
