126 Series 90B ANNUNCIATOR INSTALLATION AND CONFIGURATION MANUAL
Event Sorting and Filtering
Event Sorting
The column headings are active elements, meaning you can click on the column heading to change
the sorted order of the events. It works similar to the column headings in Windows explorer. An arrow
will appear, next to the heading title, toggling up and down each time you click the heading. For
example, each time you click the Date column heading, the events are resorted chronologically or in
reverse. Depending on the number of events, this could take a few seconds to change.
Filter Events by:
The Event Log can be filtered to only show alarms within a given date and time, specific event types
and specific inputs.
You can combine 2 filters at one time to obtain an even more selective set. The following
combinations of filters can be entered:
Date & Time and Descriptor
Date & Time and Point Number
When a filter is active, the filter criteria are displayed above the events table.
Date & Time Filter
To set date/time filters, click the Date & Time button on the page. This brings up the dialog box
shown in the following figure. The events will be displayed according to your selection criteria. The
default entry shows the current Date/Time range of the events currently in view.

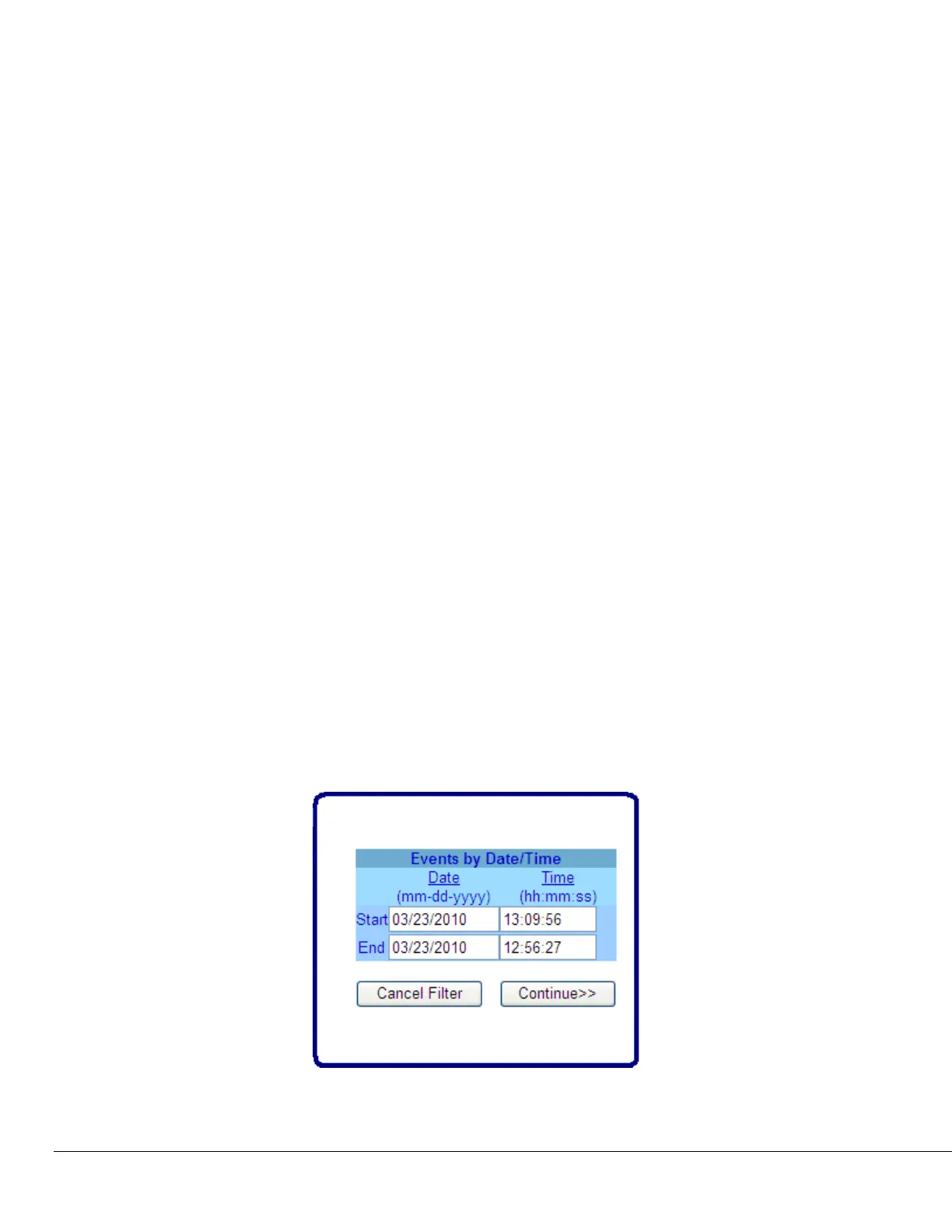

Figure E-8. Date/Time Filter Dialog Box
