Series 90B ANNUNCIATOR INSTALLATION AND CONFIGURATION MANUAL

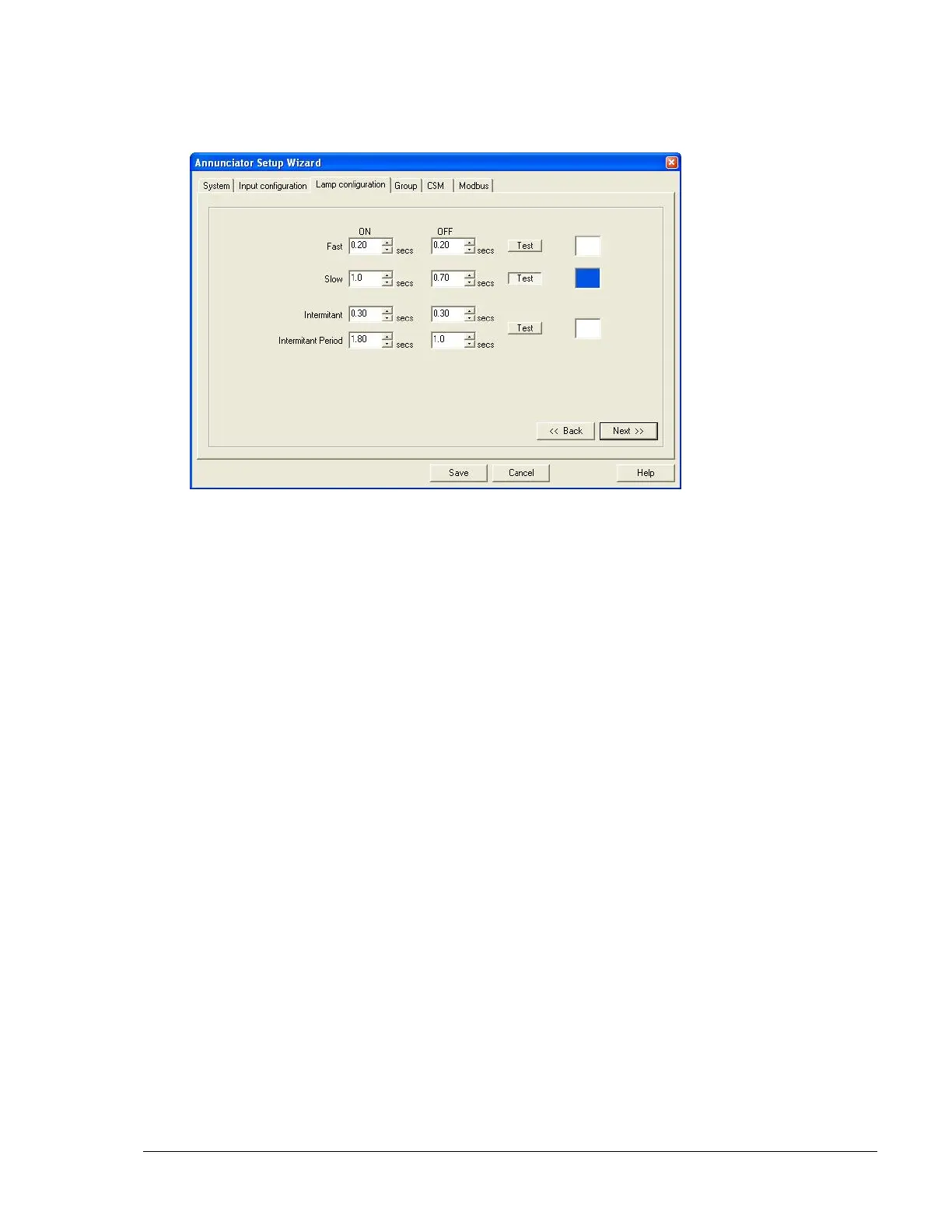

Lamp Configuration
The lamp flash rates are defined in this page. The operational sequence chosen
determines whether a slow, fast or intermittent flash rate is used. For example;
Sequence F3A uses all three rates while Sequence A uses only the slow flash
rate.
Click on the up or down arrows beside each number to increment or decrement
it. Click and hold on the arrows to scroll up or down. Click on the ‘Test’ button to
check the appearance of each flash rate.
Fast & Slow flash rates
The ON and OFF times are set up with a resolution of 0.1s. The maximum times
are 4s.
Intermittent rate
The Intermittent period values will be automatically adjusted to ensure they are
integer multiples of the sum of the Intermittent ON and OFF times. The
maximum Intermittent Period ON and OFF values are 25s.
Note:
The intermittent on period may be adjusted automatically by the wizard so that
it is set to at least one full intermittent on - off cycle.
