Physical StatusPhysical Status
Alarm/Error StatusAlarm/Error Status
Monitor ButtonMonitor Button
The status summary displayed for the DS3 layer consists of the following
information:
The topmost part of the status area gives you access to information about the
current physical status of the selected interface. A summary consisting of the
most relevant status indicators is displayed constantly. By touching the topmost
part, you can launch a display that contains the detailed status information.
The second part of the status area gives you access to alarm and error
information for the selected interface. The current status is indicated by the
lamp color.
A summary consisting of the most relevant alarm/error indications is displayed
constantly. By touching the second part, you can launch a display that contains
all alarms/errors.
At the bottom of the status area are a number of buttons that give you access to
various capture/monitor information. By touching a button, you can launch the
corresponding information dialog.
AlignmentAlignment
55..66..33..22 Physical DetailsPhysical Details
Refer to Physical Details in "E1 Setup and Status". The nominal bit rate of DS3
is 44 736 000 bps.
55..66..33..33 Alarms and ErrorsAlarms and Errors

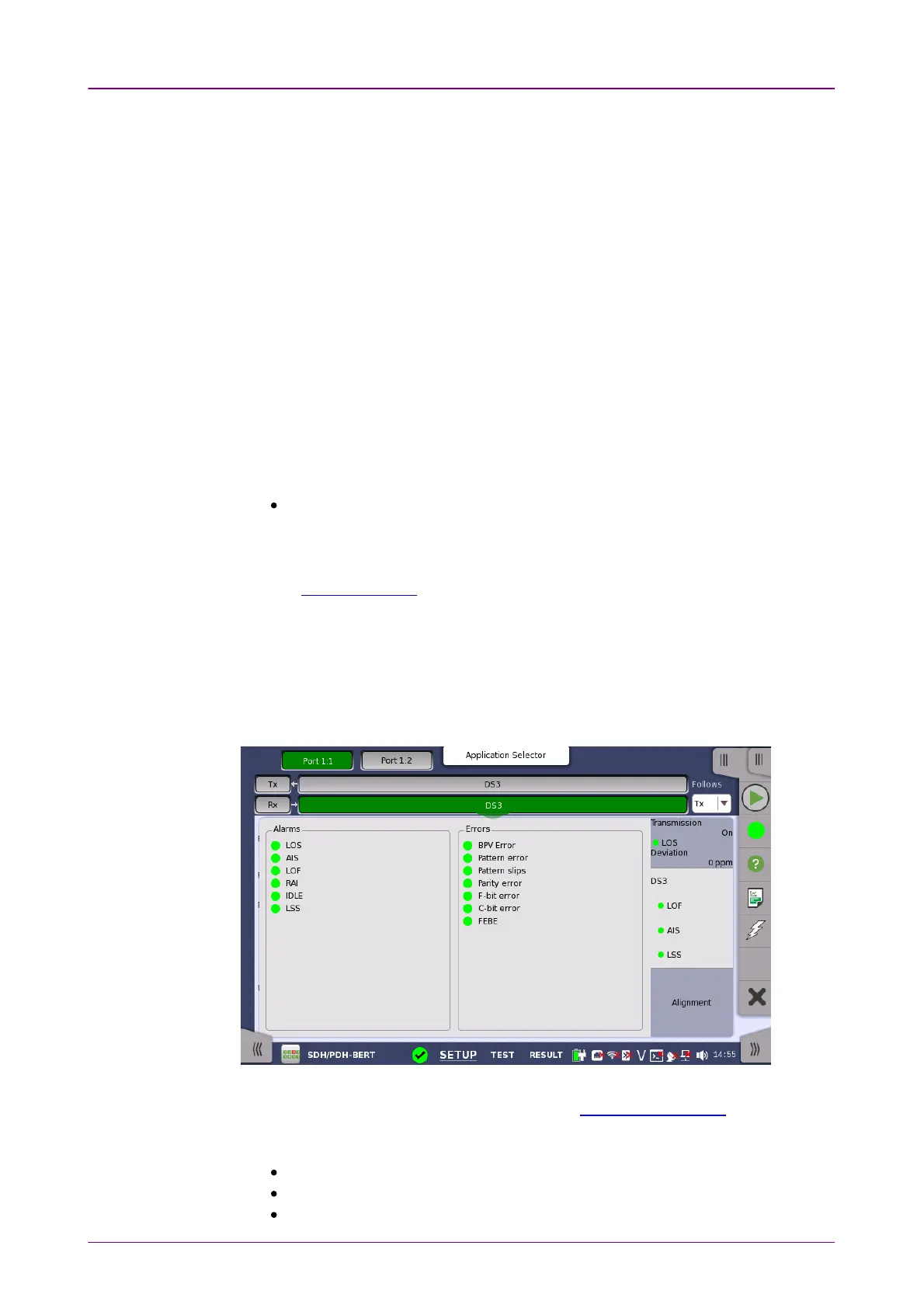

Touching the middle summary box in the status area of the Ports SetupPorts Setup screen
allows you to launch the screen shown below.
This dialog box contains detailed alarm and error information related to the
DS3 interface. Status is indicated by the use of colored Lamp icons.
Alarms
LOSLOS: Loss of Signal
AISAIS: Alarm Indication Signal
LOFLOF: Loss of Frame
