UnframedUnframed

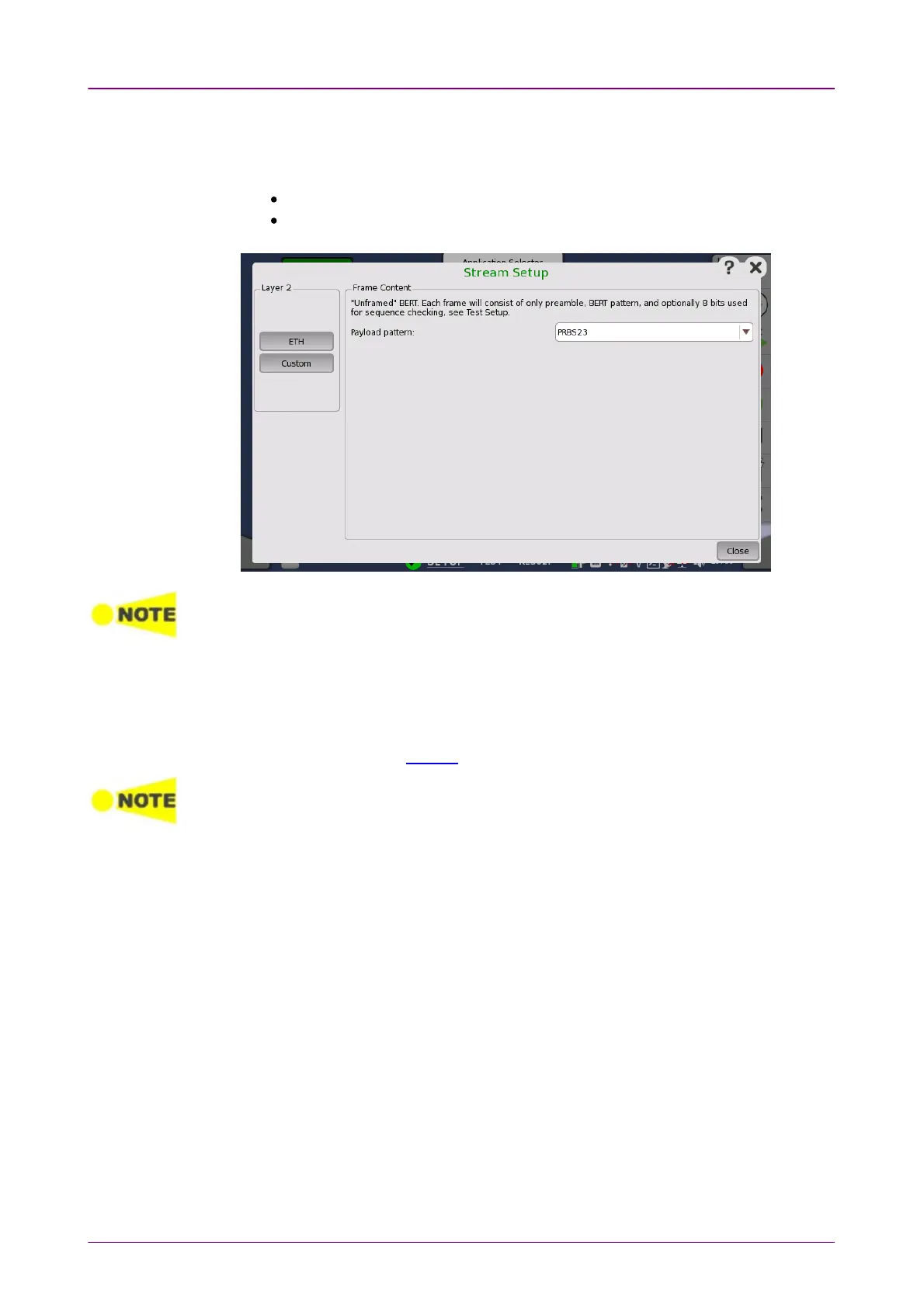

Following operation on Steam Setup dialog box will display the parameter of
the unframed stream. The frames of Unframed stream do not contain MAC
header, but are consisted from the preamble and the payload pattern.
Touching the ETHETH button on green in Layer 2
Touching the CustomCustom button on green in Layer 2
CustomCustom button appears for BERT application only.
Frame ContentFrame Content
Touch the Payload pattenPayload patten field to set the pattern for the bit error rate test. Each
frame consists of only preamble and payload pattern.
One byte for the sequence check will be appended by selecting EnableEnable
sequence checkingsequence checking on Stream screen of Test Setup.
The UnframedUnframed is available when the interface bit rate is 100 Gbps or less.
