MPLSMPLS

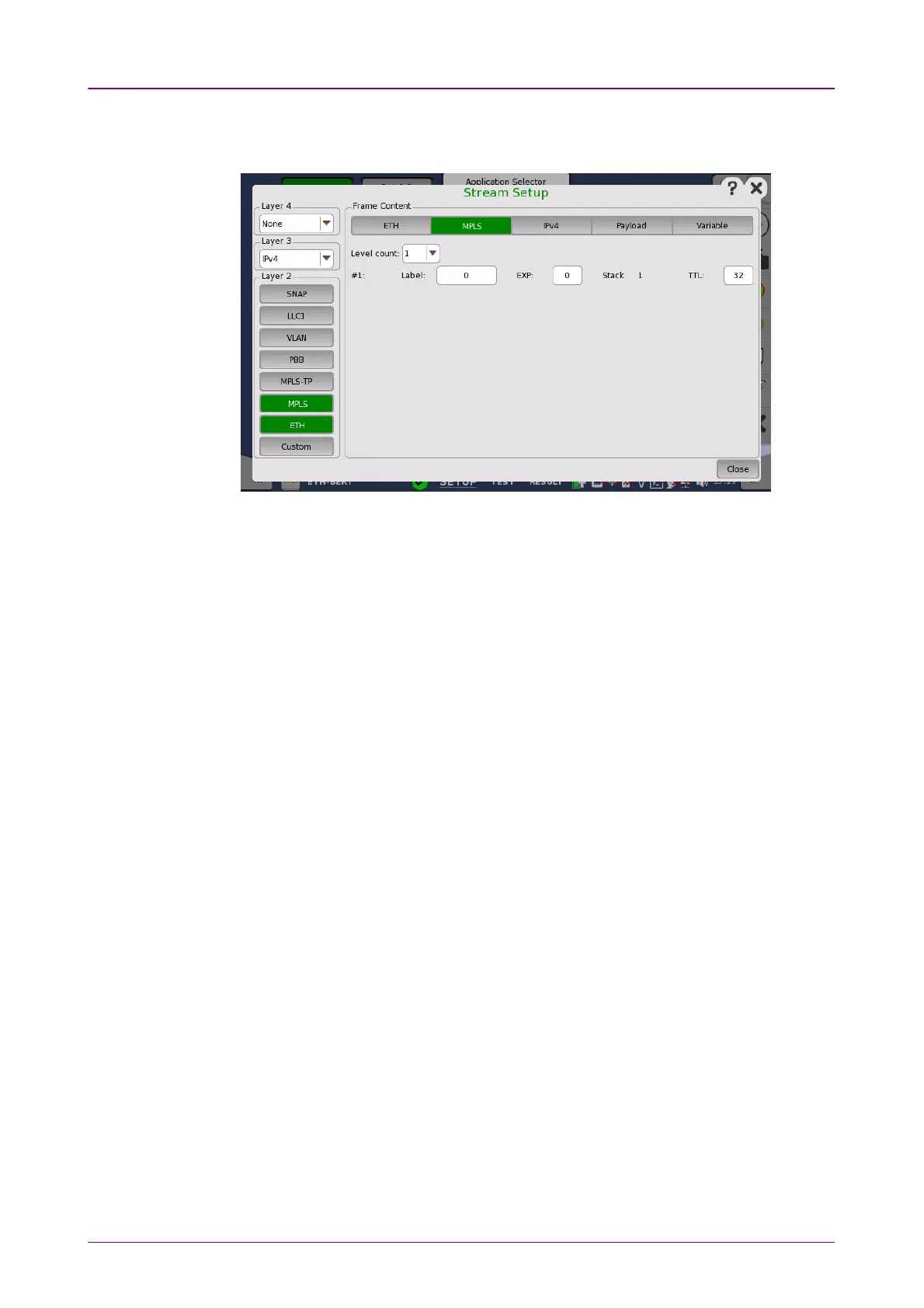

Touching the MPLSMPLS layer button displays the parameters available for the
MPLS protocol layer.
Level countLevel count
Up to eight levels of MPLS fields can be inserted in the frame.
Up to four levels of MPLS fields can be inserted when the interface bit rate is
200 Gbps or 400 Gbps. The number of MPLS fields is selected through the
Level countLevel count drop-down menu, and each level is set up individually.
LabelLabel
Allows you to set up a denoting of the MPLS.
EXPEXP
Allows you to set up the 3 bit value EXP (Experimental - used in MPLS to
support differentiated services (priority)).
TTLTTL
Allows you to set up the 8 bit value TTL (Time To Live).
