VLAN affects the Ping and RFC2544/Router Latency test, i.e. when VLAN is enabled,
the Network Master accepts only frames with VLAN tag. Furthermore, Ping replies will
only be sent if the Ping request contains the same VLAN ID as the one selected.
Level countLevel count
Up to eight levels of VLAN can be inserted in the frame. Up to four levels of
VLAN can be inserted when the interface bit rate is 200 Gbps or 400 Gbps. The
number of VLAN fields is selected through the Level countLevel count drop-down menu,
and each level is set up individually.
For Ping application, the VLAN level count is supported up to 2.
When the VLAN level count is 2, the two VLAN levels will be designated S-VLAN and C-
VLAN. S-VLAN is short for Service provider VLAN and C-VLAN is short for Customer
VLAN.
IDID

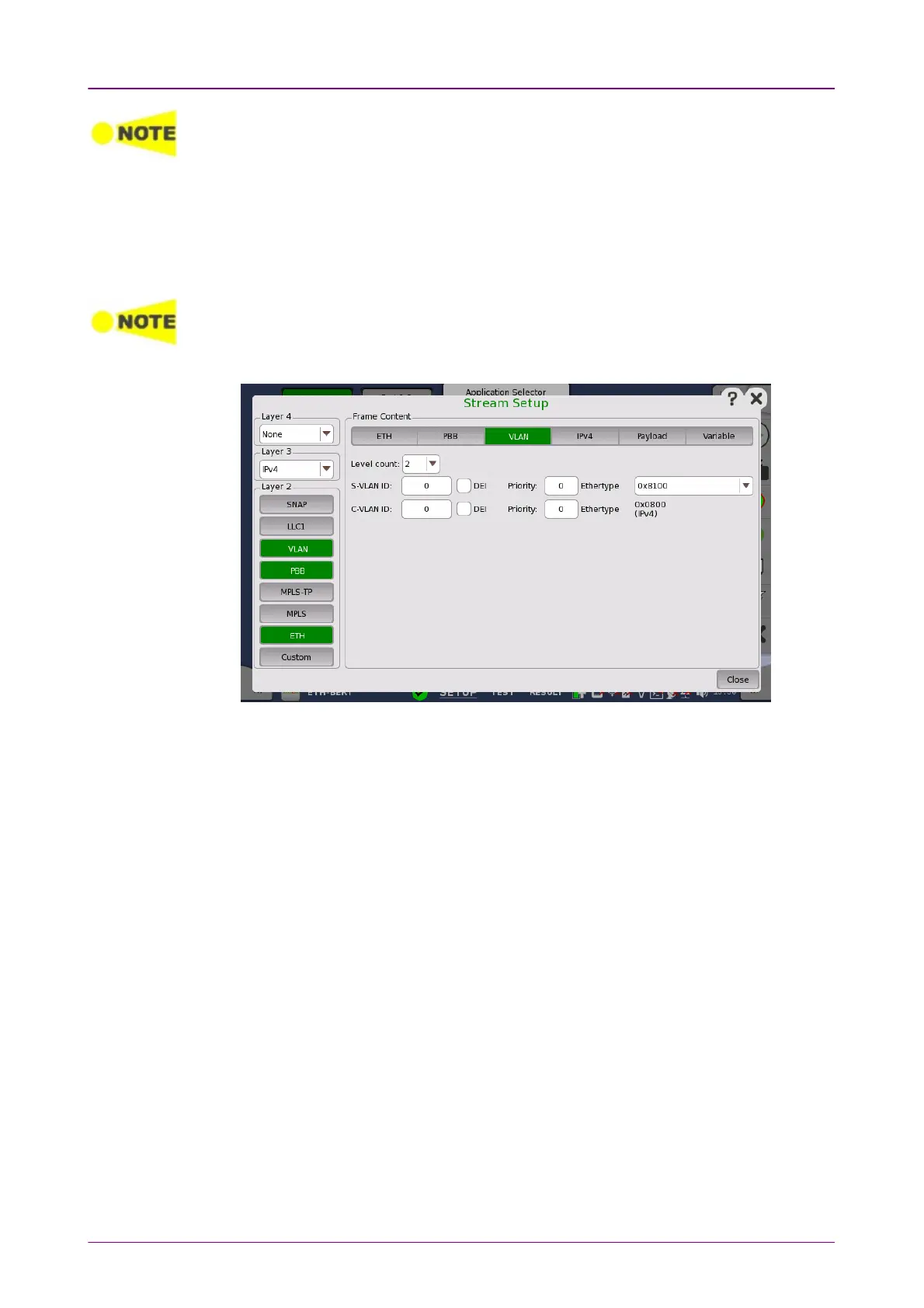

Touching the IDID (VLAN ID) button launches a setup dialog box from which it
is possible to set up a denoting of the virtual LAN.
DEIDEI
Selecting the DEIDEI check box sets a 1-bit flag denoting whether MAC addresses
inside the frame are in canonical format.
PriorityPriority
It is possible to set up the priority level of each frame.
EthertypeEthertype
When the Level countLevel count is more than one, select the type from 0x81000x8100, 0x88A80x88A8,
0x91000x9100 or 0x92000x9200.
When IPv4IPv4 or IPv6IPv6 is set to Layer 3, the Ethertype of the highest level is
automatically defined, based on the layer 3 protocol. When NoneNone is set to
Layer 3, it can be set between 0x05DD to 0xFFFF.
