LLC1LLC1
SNAPSNAP

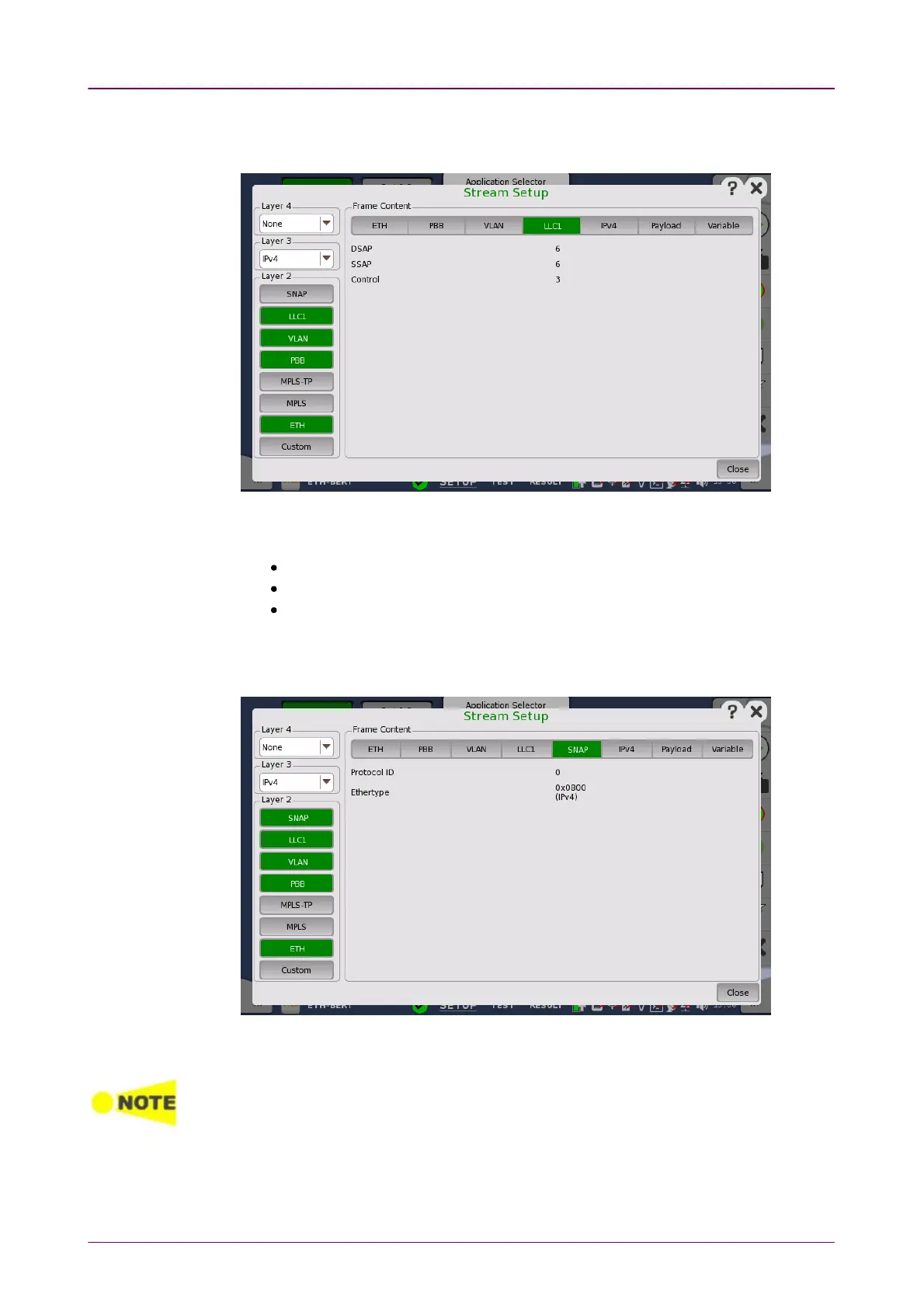

Touching the LLC1LLC1 layer button displays the parameters available for the
Logical Link Control protocol layer.
The DSAPDSAP, SSAPSSAP and ControlControl fields are set automatically, based on the upper
protocol layer.
DSAPDSAP: Destination Service Access Point value (8 bits)
SSAPSSAP: Source Service Access Point value (8 bits)
ControlControl: Control field value (8 bits or 16 bits)
Touching the SNAPSNAP layer button displays the parameters available for the Sub
Network Access Protocol protocol layer.
The Protocol IDProtocol ID is fixed to 00, and the EthertypeEthertype field depends on the upper
protocol layer.
SNAPSNAP is not possible without LLC1LLC1.
The SNAP layer is available when the interface bit rate is 100 Gbps or less.
