66..11..22..33 SwapSwap

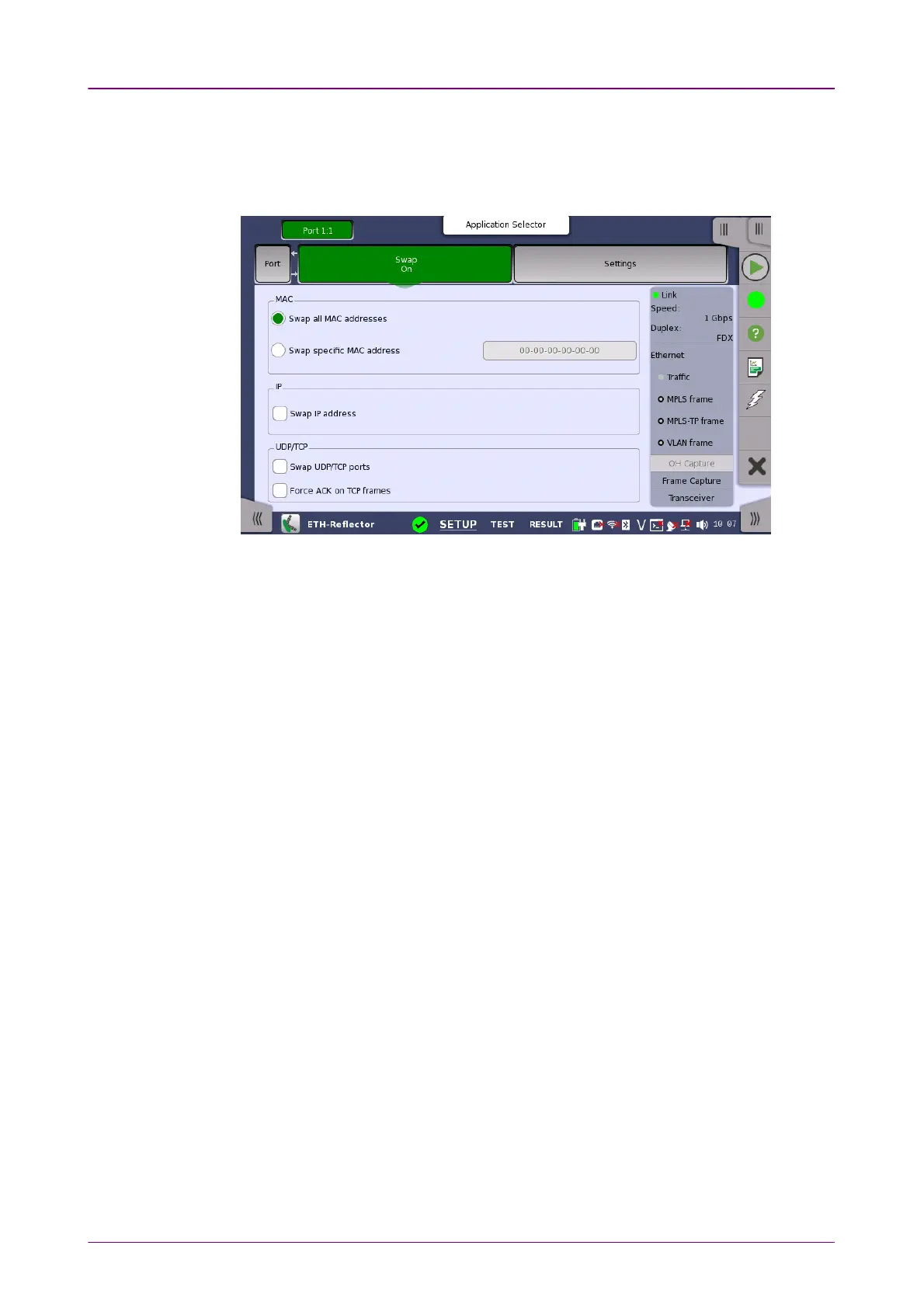

Touching the SwapSwap button in the navigation area displays the following screen.
SwapSwap button appears in Reflector application.
This screen is where you configure the traffic loop by specifying how addresses
and/or ports are to be swapped and reflected.
Selecting Swap all MAC addressesSwap all MAC addresses will transmit/reflect all received frames with
their MAC addresses swapped. Use Swap specific MAC addressSwap specific MAC address to swap and
reflect only the frames with a specific MAC address.
The IP addresses and UDP/TCP ports may also be swapped inside the reflected
frames. Additionally, the ACK flag may be forced set inside reflected TCP
frames.
The check boxes of UDP/TCP can be set when the interface bit rate is 100
Gbps or less.
