LAN StatusLAN Status
PCS StatusPCS Status
Ext. ref. 1PPSExt. ref. 1PPS
Green: The external 1 PPS reference signal is available.
GPSGPS
Green: The GPS input is available.
Red: The GPS input is not available. If "Sync for 30s" is displayed, it takes 30
seconds from inputting the GPS signal to turning the indicator green. In case it
stays in red after 30 seconds elapsed, confirm the connection between the
Network Master and the GPS.
66..11..33..33 InterfaceInterface

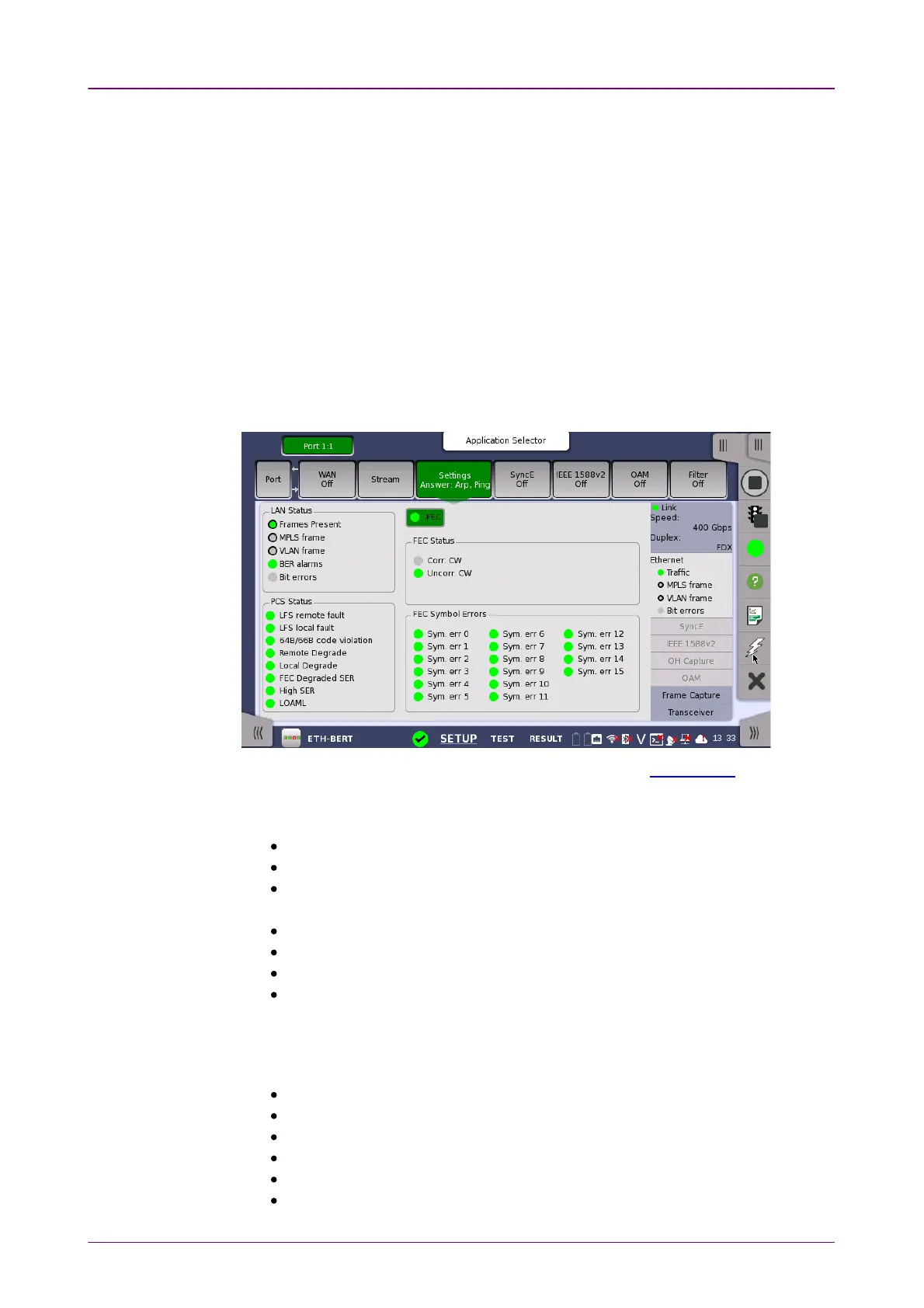

Touching the middle summary box in the status area of the Ports SetupPorts Setup screen
displays the status shown below.
This screen presents key interface status indicators, with Lamp icons showing
the current status. These indicators give a quick overview of the condition of
the lines.
Frame PresentFrame Present: Ethernet frames are detected.
MPLS frameMPLS frame: Label of MPLS (Multi-Protocol Label Switching) is detected.
MPLS-TP frameMPLS-TP frame: Label of MPLS-TP (Multi-Protocol Label Switching Transport
Profile) is detected.
VLAN frameVLAN frame: Virtual LAN tag is detected.
Multi stream frame lossMulti stream frame loss: Multi stream frame loss is detected.
BER alarmsBER alarms: BER Alarms are detected.
Bit errorsBit errors: Bit errors are detected.
Multi stream frame lossMulti stream frame loss appears in case of Mon./Gen. application.
PCS Status appears when the Interface Type bit rate is 10 Gbps or higher
LFS local faultLFS local fault: Local fault is detected.
LFS remote faultLFS remote fault: Remote fault is detected.
64B/66B code violation64B/66B code violation: 64B/66B code violation is detected.
LOBLLOBL: Loss of Block Lock is detected.
Remote DegradeRemote Degrade: Remote Degrade alarm is detected. *
Local DegradeLocal Degrade: Local Degrade alarm is detected. *
