TransportTransport
PatternPattern
Pattern Error insertionPattern Error insertion

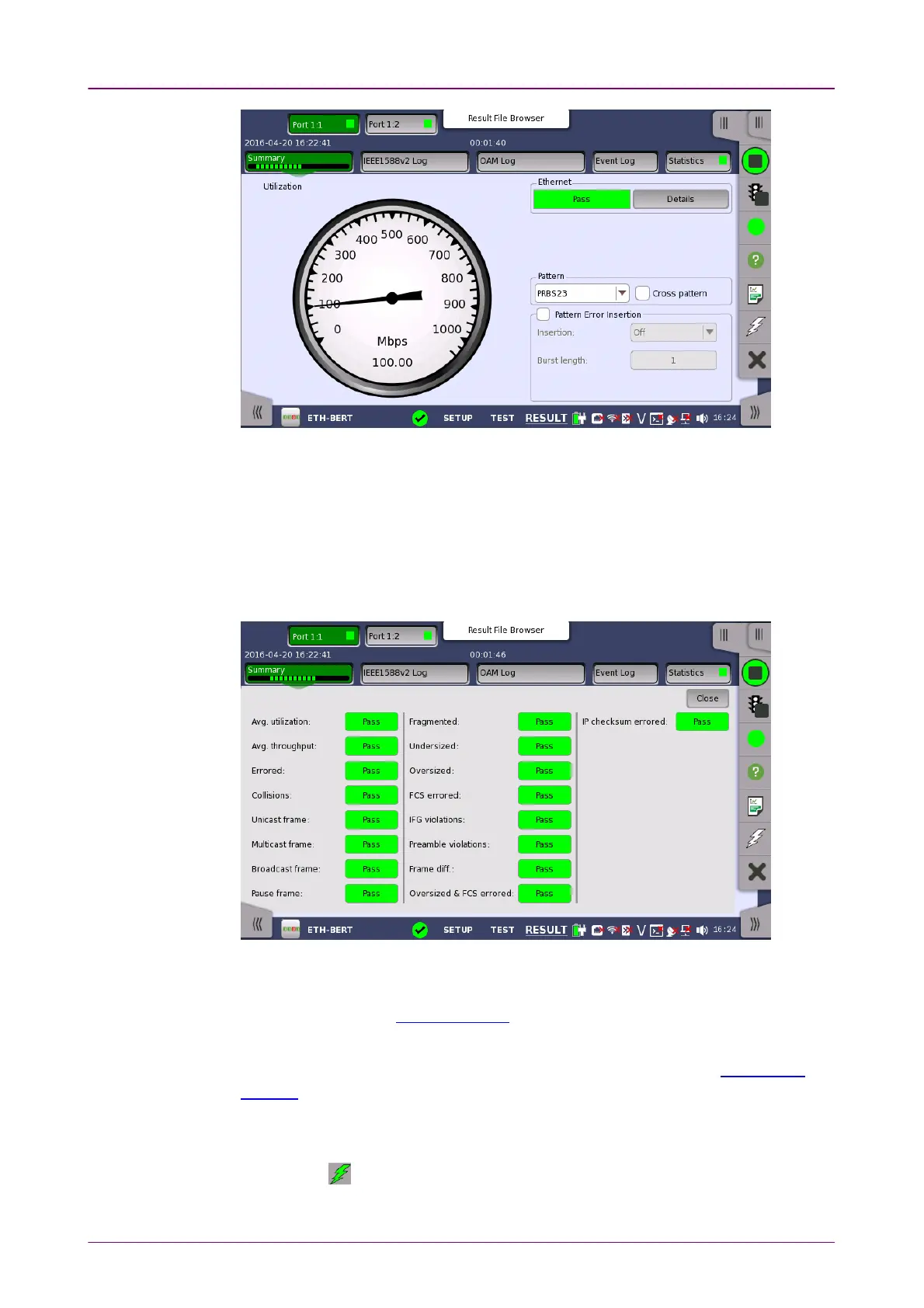

To view throughput information, select ThroughputThroughput in the drop-down menu
and then expand the dial. Use the drop-down menu above the expanded dial to
select the relevant layer.
When EthernetEthernet is selected on 'Threshold' of the Test Setup screen, the EthernetEthernet
information appears in the upper right-hand corner, shows pass/fail status
summary. Touching the DetailsDetails button allows you to inspect the individual
pass/fail status.
Displays the results of Transport test. This result appears if 'Transport' check
box is selected in the Test Setup screen.
Allows to change the payload pattern. Cross patternCross pattern check box is the same as
Cross pattern at successive framesCross pattern at successive frames of Payload pattern setting.
This provides the same Error insertion as
Stimuli setup options
in Application
Toolbar.
InsertionInsertion
If selecting ManualManual, error(s) are inserted when you touch the Alarm/ErrorAlarm/Error
InsertInsert icon ( ) button.
