To view throughput information, select ThroughputThroughput in the drop-down menu
and then expand the dial. Use the drop-down menu above the expanded dial to
select the relevant layer.

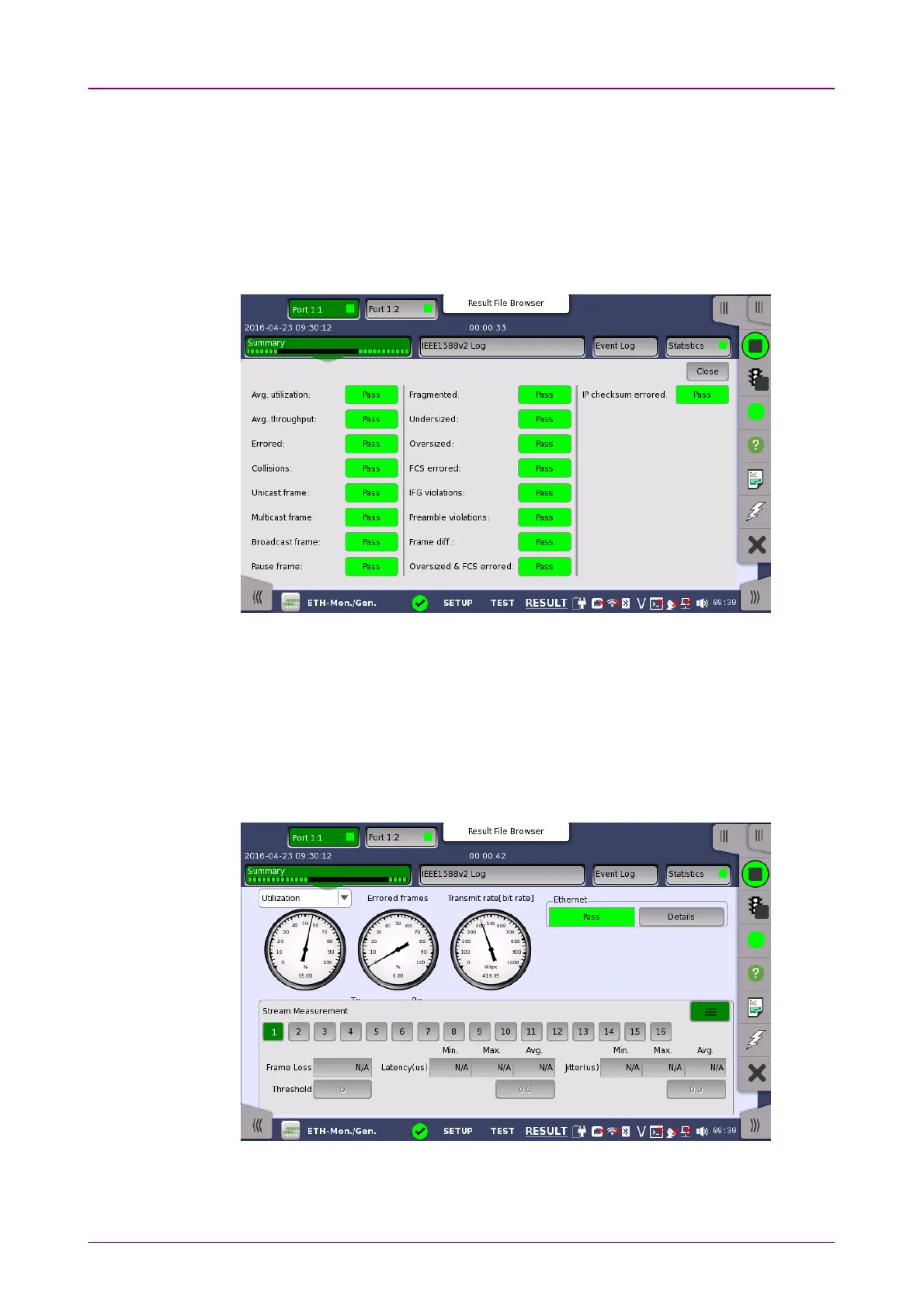

When EthernetEthernet is selected on Threshold of the Test Setup screen, the EthernetEthernet
information appears in the upper right-hand corner, shows pass/fail status
summary. Touching the DetailsDetails button allows you to inspect the individual
pass/fail status.
TransportTransport
Displays the results of Transport test. This result appears if TransportTransport check box
is selected in the Test Setup screen.
The stream slide-up at the bottom of the screen allows you to configure and
inspect the measurements of each individual stream. Display/Hide the slide-up
by touching the handle icon. You can set up thresholds for frameloss, latency
and jitter for each stream as well as inspect the measurement results.
66..55..33..22 IEEE1588v2 LogIEEE1588v2 Log
