EMIXEMIX

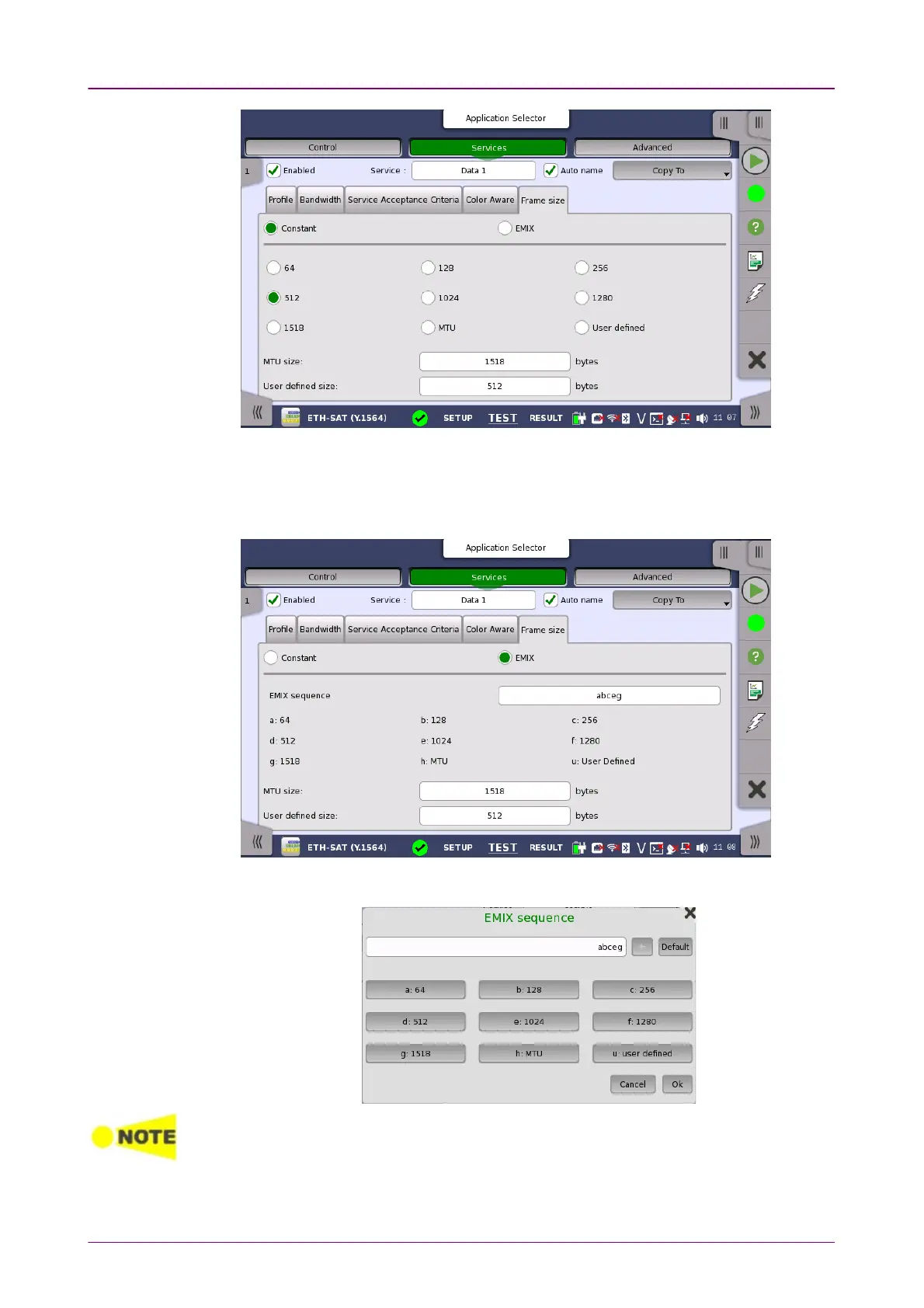

Allows you to set up a repeating frame size pattern. The pattern must consist of
at least 1 frame size and at most 16.
Touching EMIX sequenceEMIX sequence field opens the dialog box.
Frame size is protocol headers and payload combined. Frame size does not include
preamble and interframe gap.
Ethernet ApplicationsEthernet Applications
