Test resultsTest results
When Test Sync. Mode is set to GPSGPS on Control screen, status
for the GPS time synchronization is displayed at the top of the
screen with colored Lamps - one Lamp for the local side and
one for the remote side.
Green GPS synchronization is OK.
Yellow GPS synchronization has been lost for 10 seconds or more. FTD and
FDV results could be compromised.
66..1111..33..22 Configuration TestConfiguration Test

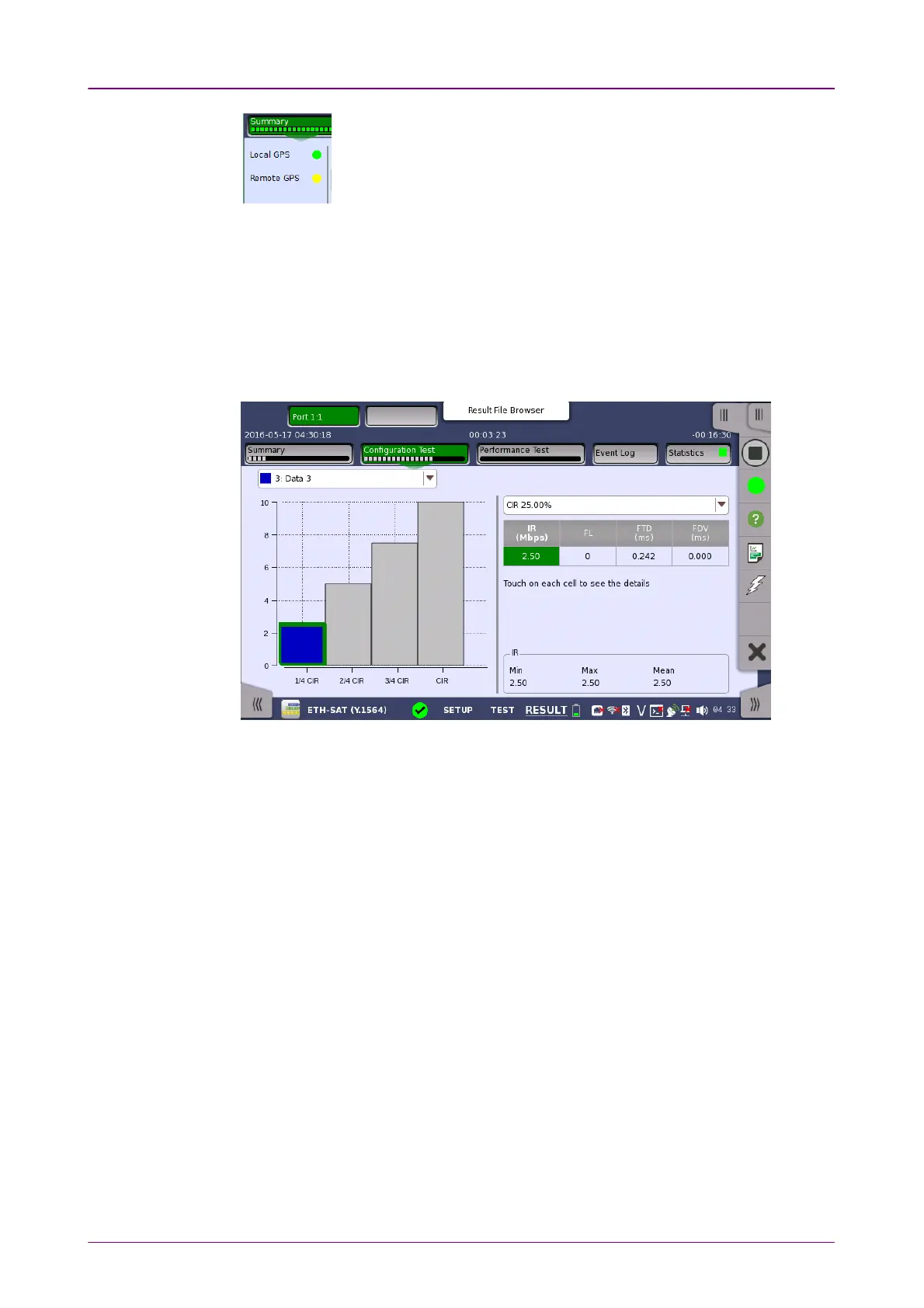

Touching the Configuration TestConfiguration Test button in the navigation area will display the
screen shown below.
This screen presents the detailed Configuration Test results for a specific
service. Use the drop-down menu at the top of the screen to select which
service to view.
The results are presented in a table and are related to a specific CIR%. Select
the relevant CIR% either by selecting the corresponding bar in the bar graph or
by using the CIR drop-down menu.
Touching a cell in table displays Minimum, Maximum, Mean value and the
Threshold, at bottom of screen.
Select a cell in the results table to see the details. The following information is
presented:
IR / ULRIR / ULR
Shows the minimum, mean and maximum bit rate in Mbps. Depending on the
test setup, the bit rate is either Information Rate (IR) or Utilized Line Rate
(ULR).
FLFL
Shows the number of lost frames and the frame loss ratio. The frame loss ratio
is frames lost divided by frames transmitted.
FTD / RT FTDFTD / RT FTD
