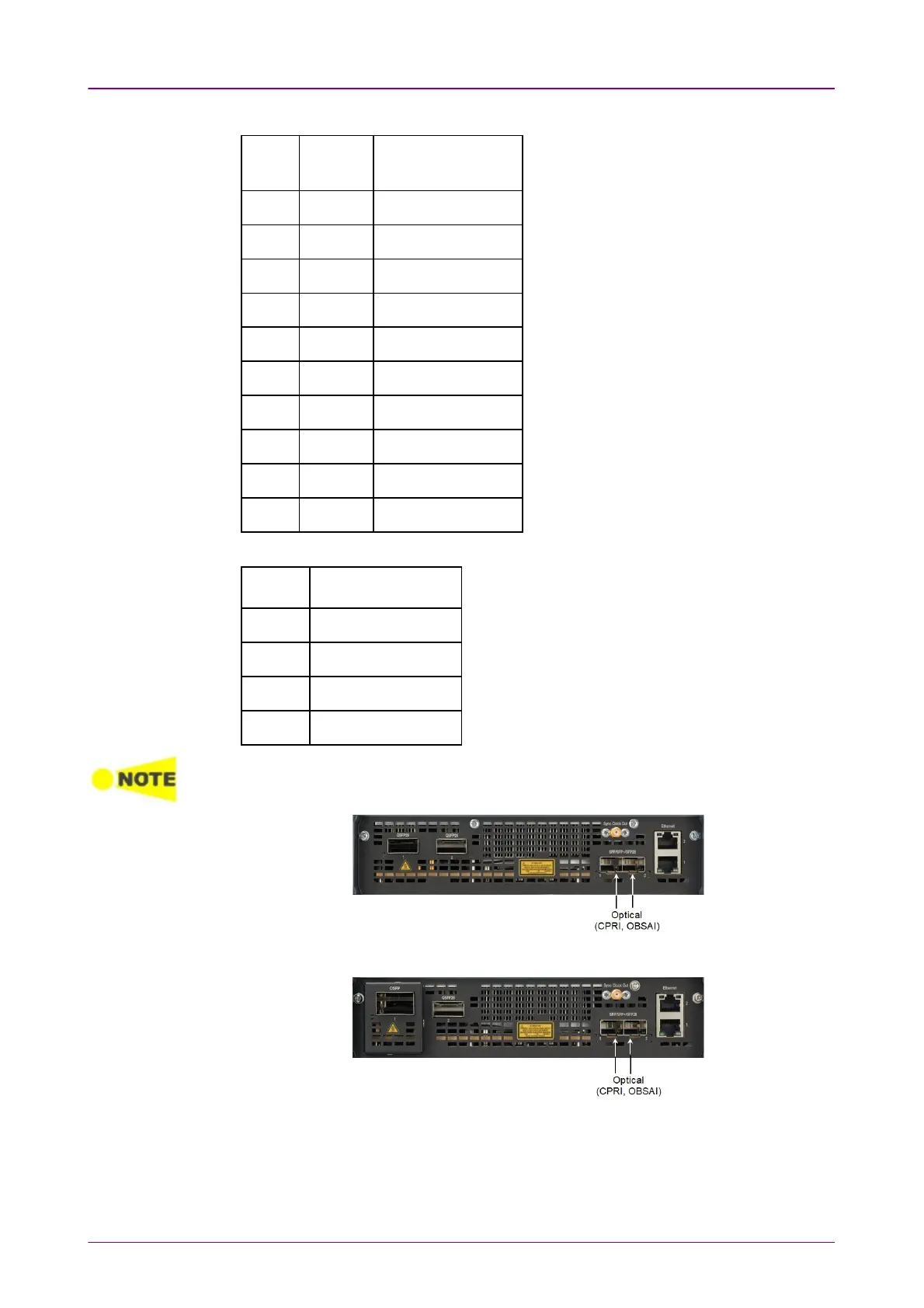

CPRI Line bit ratesCPRI Line bit rates
OptionOption
Bit Rate Bit Rate
(Mbit/s)(Mbit/s)
Multiplier × Multiplier ×
Reference bit rate × Reference bit rate ×
Coding (Mbit/s)Coding (Mbit/s)
1 614.4 1 × 491.52 × 10/8
2 1228.8 2 × 491.52 × 10/8
3 2457.6 4 × 491.52 × 10/8
4 3072.0 5 × 491.52 × 10/8
5 4915.2 8 × 491.52 × 10/8
6 6144.0 10 × 491.52 × 10/8
7 9830.4 16 × 491.52 × 10/8
8 10137.6 20 × 491.52 × 66/64
9 12165.12 24 × 491.52 × 66/64
10 24330.24 48 × 491.52 × 66/64
OBSAI Line bit ratesOBSAI Line bit rates
Bit Rate Bit Rate
(Mbit/s)(Mbit/s)
Multiplexer × Multiplexer ×
Base bit rate (Mbit/s)Base bit rate (Mbit/s)
768 1 × 768
1536 2 × 768
3072 4 × 768
6144 8 × 768
The CPRI/OBSAI uses the SFP/SFP+/SFP28 ports.
MU104011A, MU104014A Connector PanelMU104011A, MU104014A Connector Panel
MU104015A Connector PanelMU104015A Connector Panel
CPRI/OBSAI Setup and StatusCPRI/OBSAI Setup and Status
