Selecting the intervalSelecting the interval
timetime
Selecting type ofSelecting type of
resultsresults
Studying a specificStudying a specific
resultresult
Selecting notationSelecting notation
Selecting which results to viewSelecting which results to view
Touch the TotalTotal button to switch the total values measured in all interval times.
The start time of measurement is displayed on the button.
Touching the button in left side BackBack field shows the measured values in the
interval time. The end time of the interval is displayed on the button.
The CurrentCurrent button is displayed at left bottom when the measurement is
running. Touching the CurrentCurrent button shows the measured values in the current
interval time. The start time of the current interval is displayed on the button.

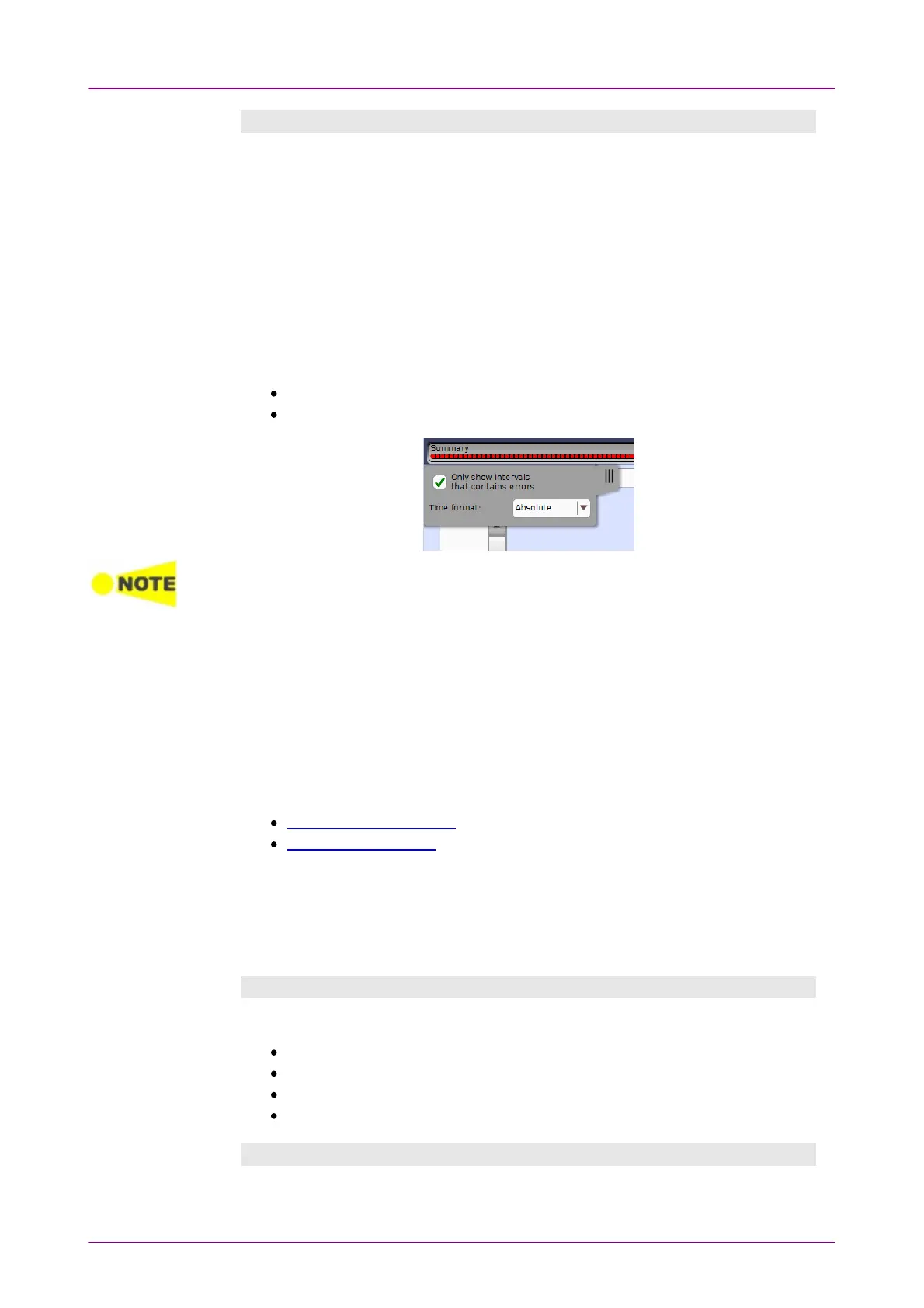

The slide-out panel on the left-hand side of the screen contains the following
functions:
Only show intervals that contains errors
Time format
If you have stopped measurement during the interval time, the measurement results of
the current interval are discarded. The log of the current interval is not displayed in BackBack
field.
In this case, result data are re-calculated excluding the data of the current interval
when the measurement is stopped. This causes that "Count" and "Ratio" displayed
after the measurement will be different from that of during measurement.
The sum of interval time (multiplied interval time by the number of back logs) may
not match the differential time between displayed time at left top and right top after
the measurement.
Open the middle drop-down menu in the top row of buttons to select which
results you want to display on the screen.
No frame - Alarm/ErrorsNo frame - Alarm/Errors
No frame - FrequencyNo frame - Frequency
Touch a specific cell in a result table to zoom in on the corresponding result
item. The CountCount and RatioRatio fields are displayed on a ZoomZoom tab. A Time vs.Time vs.
StatisticsStatistics tab is also available. Use the BackBack button or touch the zoom filed to
return to the statistics screen.
Selecting how results are displayedSelecting how results are displayed
Select the required notation for the results from the notation drop-down menu.
UnformattedUnformatted - e.g. 71892
SI prefixSI prefix - e.g. 71.891 k (k means "kilo")
EngineeringEngineering - e.g. 71.892E3
ScientificScientific - e.g. 7.1892E4
ResultsResults
Results are displayed according to your choice.
