10-3 Web Remote Control Interface Web Remote Control
10-6 PN: 10580-00318 Rev. P S412E UG
Menu Bar
Remote Control
Opens “Remote Control” on page 10-7.
Capture Screen
Captures a JPEG image of the instrument display and saves it directly to internal memory. A
file name is automatically created using the current date and time stamp. Only the
instrument display will be pictured on the Web page under the menu bar. See Figure 10-4. In
Windows, you can right-click on the screen and select Copy. With iOS, press and hold on the
picture. This makes it easy to create documentation using screen captures.
Capture Trace
Opens an input dialog to enter a name for the trace to be saved. See Figure 10-5. After
clicking Save, a confirmation dialog opens to indicate the trace was successfully saved to the
instrument.

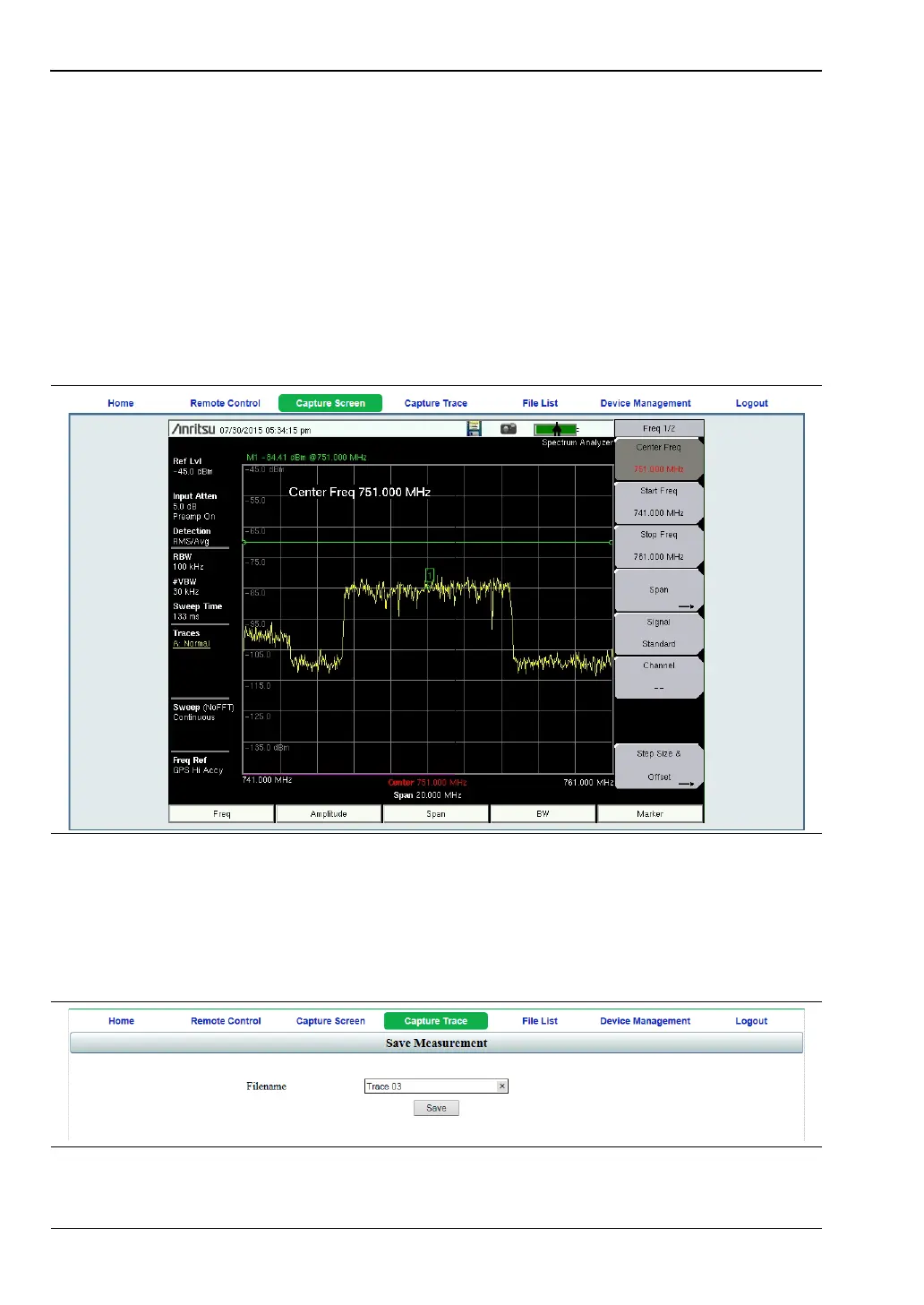

Figure 10-4. Capture Screen Page
Figure 10-5. Capture Trace Page
