Error Messages B-3 Self Test
S412E UG PN: 10580-00318 Rev. P B-3
Application Self Test
VNA Mode Self Test (Vector Network Analyzer mode only)
To run the application self test, press Shift and System (8) and then Application Self Test from
within the desired mode. When you are in Vector Network Analyzer mode, you will see the
results window that is shown in Figure B-2 (note that your instrument display may differ
from this image), which summarizes the status of several key functions that are specific to
this application.
If the Overall Status shows Failed, then one or more elements of the Application Self Test
have failed. This self test consists of 2 subtests:
Frequency Sweep: Lists any frequency range over which errors in the sweep are occurring
EEPROM: Indicates whether reading or writing (or both) to the EPPROM has failed
If any of the subtests shows FAILED, then check that the battery level is adequate for
operation or that temperature is within acceptable limits. Reset to factory defaults with
either Factory Defaults (Esc+On), or Master Reset (System+On).

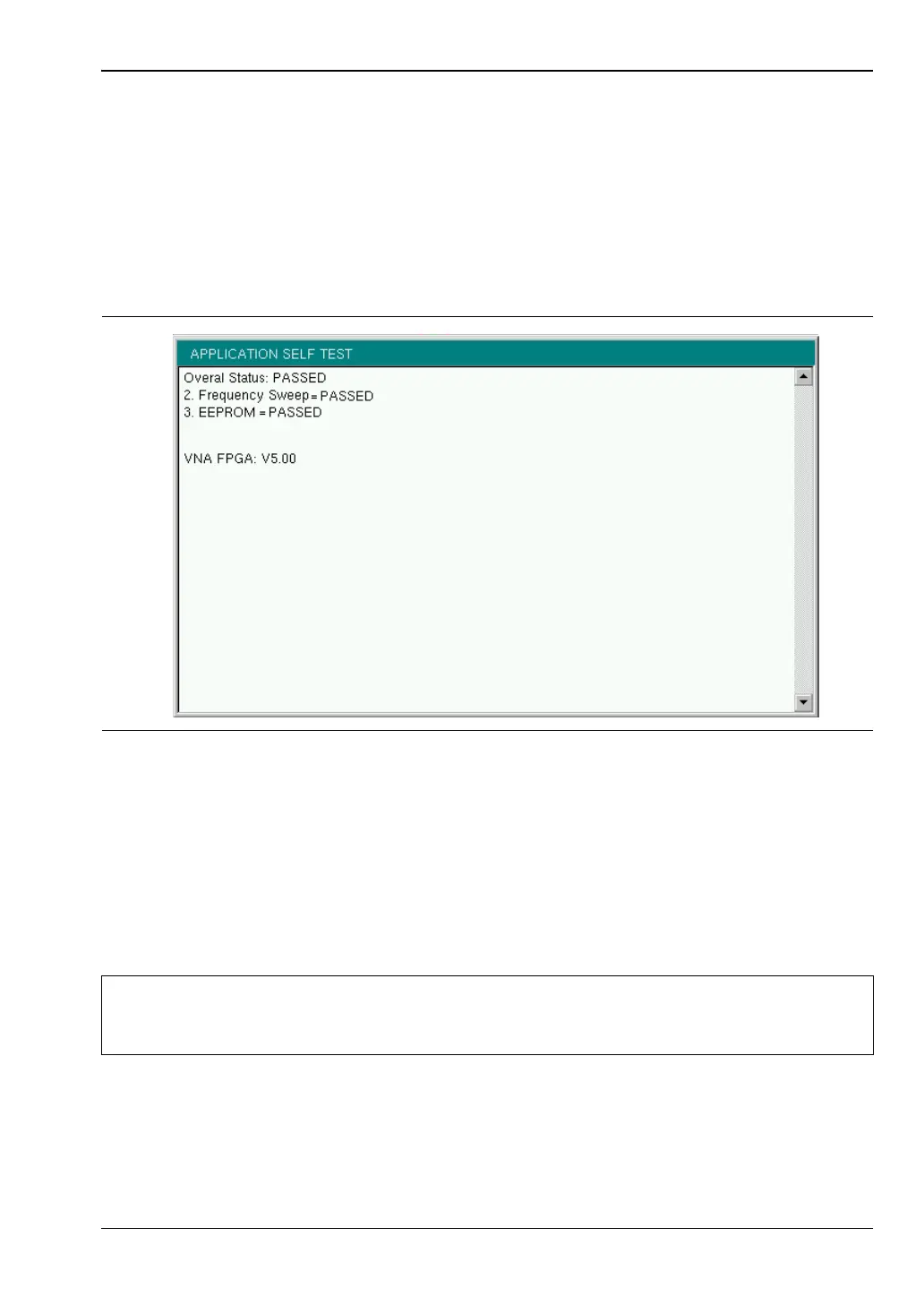

Figure B-2. Application Self Test
Caution
Use of Master Reset (System+On), will erase all user saved setups and
measurement traces and will return the LMR Master to a full Factory Default
condition. If the error persists, contact your Anritsu Service Center.
