Instrument Overview 2-3 Front Panel Overview
S412E UG PN: 10580-00318 Rev. P 2-3
Front Panel Keys
Menu Key
Press this key to display a grid of shortcut icons for installed measurement modes and any
user-selected menus and setup files that may have been added.

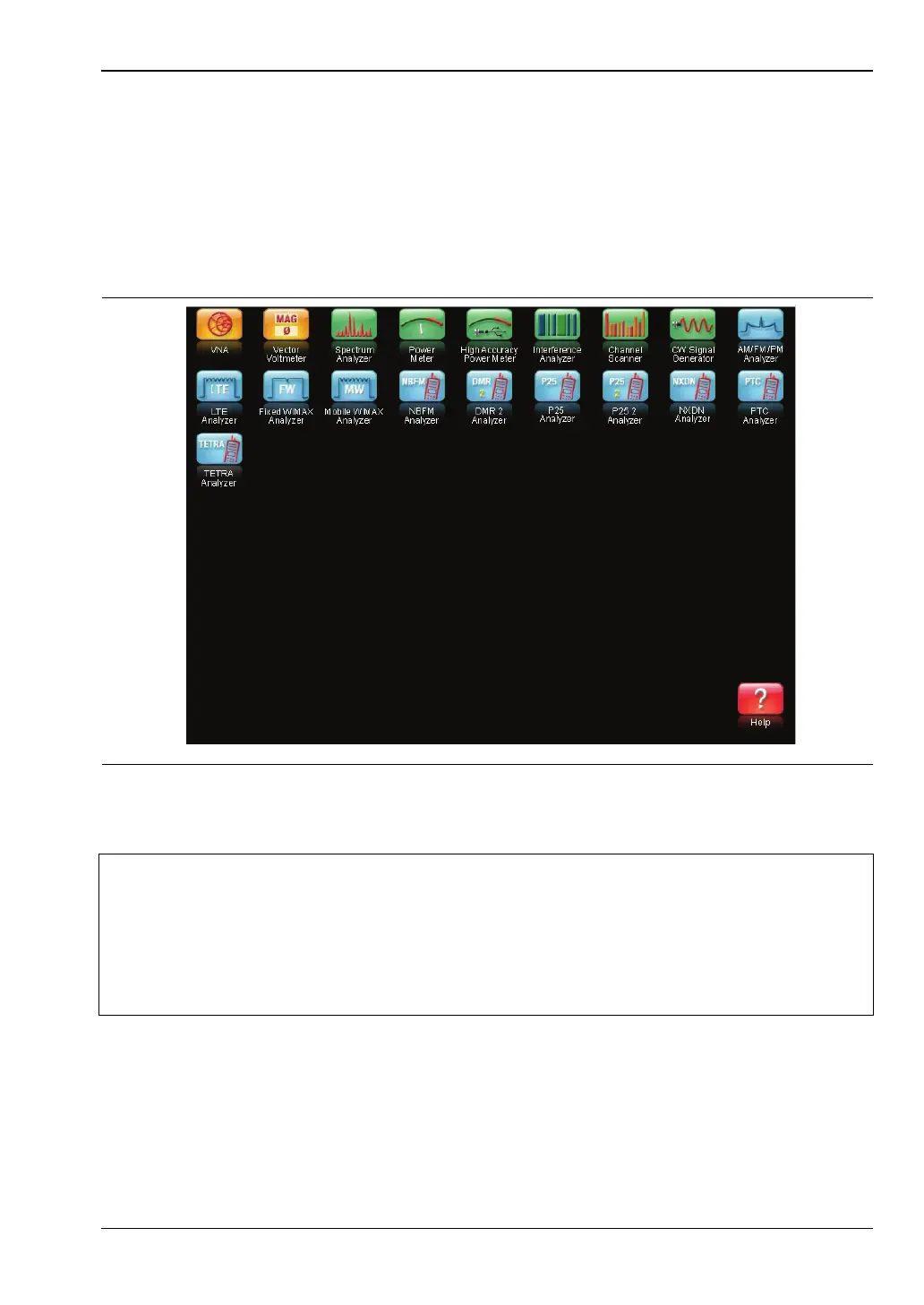

Figure 2-2 shows the Menu key screen with shortcut icons for the installed measurement
modes. Touch one of the icons in the top row to change modes. These top-row icons are
preinstalled and cannot be moved or deleted.
Figure 2-2. Menu Key Screen, Icons for Installed Measurements
Note
The display of the Menu screen varies depending on your LMR Master model and
installed options.
Only the Esc key and the touch screen icons are functional in the Menu screen.
The instrument must be in a measurement mode to execute a function that is
indicated in blue text above the number key. They do not function from the Menu
screen.
