2-5 Test Panel Connector Overview

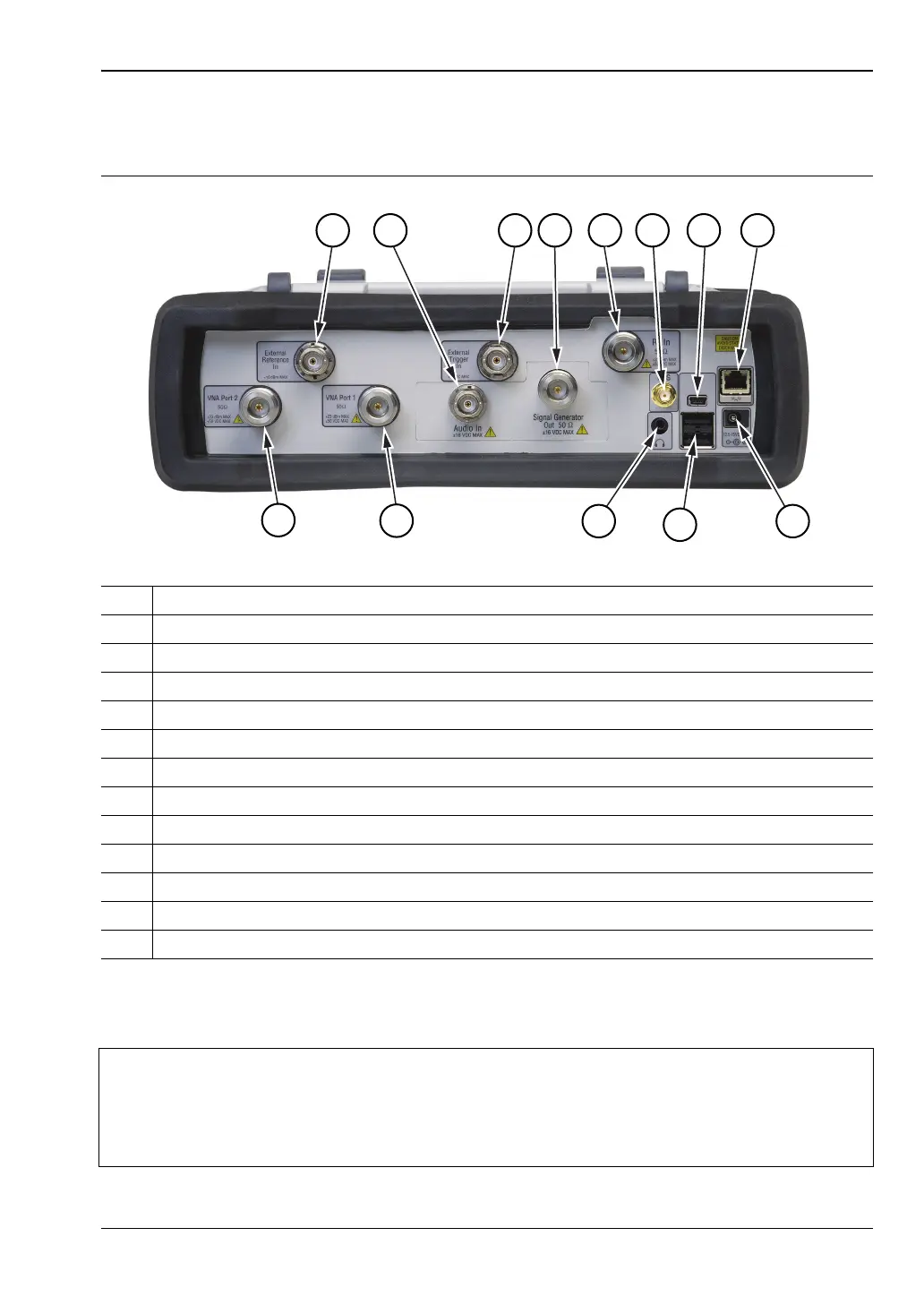

Test panel connectors for the LMR Master S412E is shown in Figure 2-8.
1 External Reference In
2Audio In
3 External Trigger In
4 Signal Generator Out
5RFIn
6 GPS Antenna (with Option 31)
7 USB Mini-B (Full Speed, USB 2.0)
8 RJ-45 LAN Connection
9 External Power
10 USB Type A (Full Speed, USB 2.0)
11 3.5 mm Headset Jack
12 VNA Port 1 50 ohm
13 VNA Port 2 50 ohm
Figure 2-8. Test Panel Connectors
Note
This instrument is equipped with Type N connectors. To prevent damage, do not
use pliers or a plain wrench. Do not over tighten.
Recommended torque: 1.36 N·m to 1.70 N·m (12 lbf·in to 15 lbf·in).
Do not twist cable or accessory body. Rotate the coupling nut only.
