3-6 NBFM Analyzer Quick Start Guide
3-16 PN: 10580-00318 Rev. P S412E UG
NBFM Coverage Measurement
1. Press the Measurement main menu key, then press the NBFM Coverage submenu key
twice (Figure 3-13).
2. Refer to the Land Mobile Radio Measurement Guide listed in Appendix A for details on
creating a map and coverage mapping.
NBFM Quieting and NBFM SINAD Measurements
Refer to the Land Mobile Radio Measurement Guide listed in Appendix A for details on radio
sensitivity testing using the 12 dB SINAD and 20 dB Quieting methods.

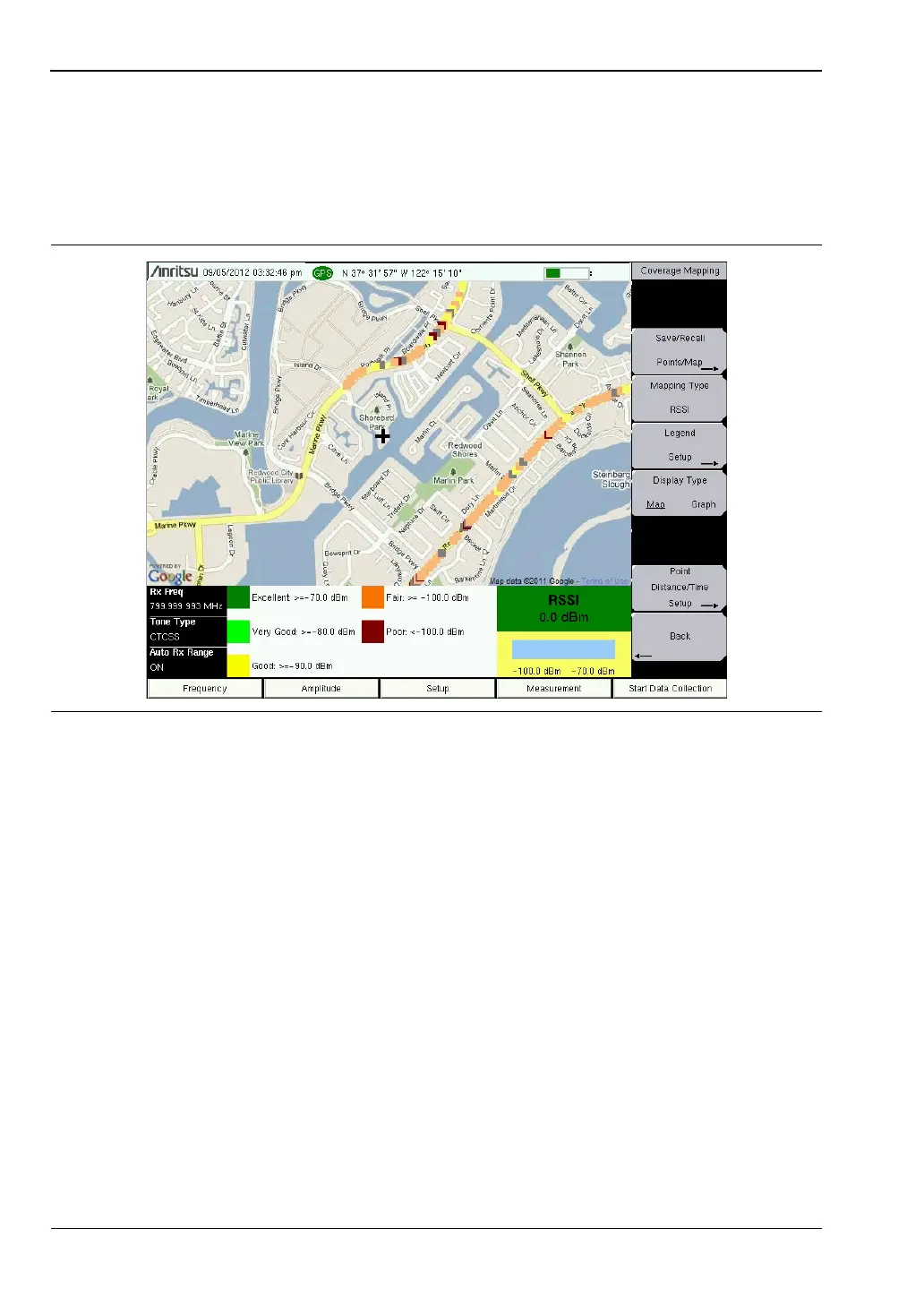

Figure 3-10. NBFM Coverage Measurements
