Options Performance Verification 4-4 Spectrum Analyzer Frequency Accuracy with GPS On
Model MS20xxB MM PN: 10580-00303 Rev. D 4-7
3. Turn on both the 10 MHz Reference Standard and the Synthesized Signal Generator.
4. Set the MG3692X output to 3.9 GHz CW for MS2034B or to 5.9 GHz CW for MS2035B, with an RF output
level of –30 dBm.
5. Install the 34RKNF50 Adapter to the output of the MG3692X Generator and connect the 15NN50-1.5C
RF Coaxial Cable between the Adapter and the RF In connector of the VNA Master.
6. Press the On/Off key to turn on the VNA Master.
7. Press the Shift key and then the Mode (9) key. Use the rotary knob to highlight Spectrum Analyzer and
then press the Enter key to switch to Spectrum Analyzer mode.
8. Press the Shift key and then the Preset (1) key. Press the Preset button on the touch screen submenu to
set the instrument to the factory preset state.
9. Press the Amplitude button on the touch screen main menu and then the Reference Level button on the
touch screen submenu.
10. Use the numeric keypad to enter –10 and press the dBm submenu button.
11. Press the Span submenu button.
12. Use the numeric keypad to enter 10 and then press the kHz submenu button.

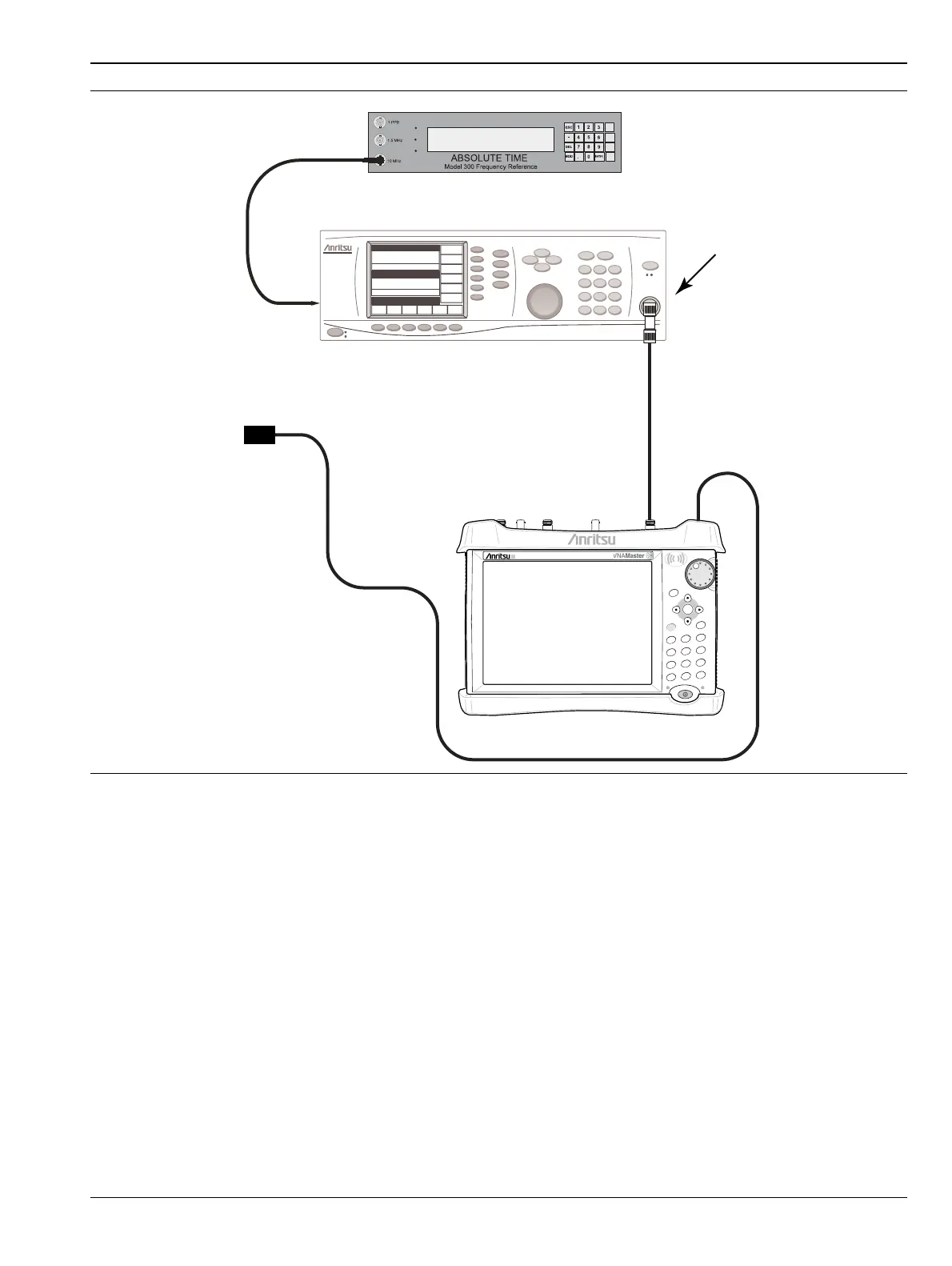

Figure 4-1. Spectrum Analyzer Frequency Accuracy with GPS On
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
Signal Source
10 MHz Reference
GPS
Antenna
Adapter
VNA Master
To Next Page
