Anritsu VNA Master MS2024B Maintenance Manual

Removal and Replacement 6-3 Internal Anatomy of MS202xB
Model MS20xxB MM PN: 10580-00303 Rev. D 6-9

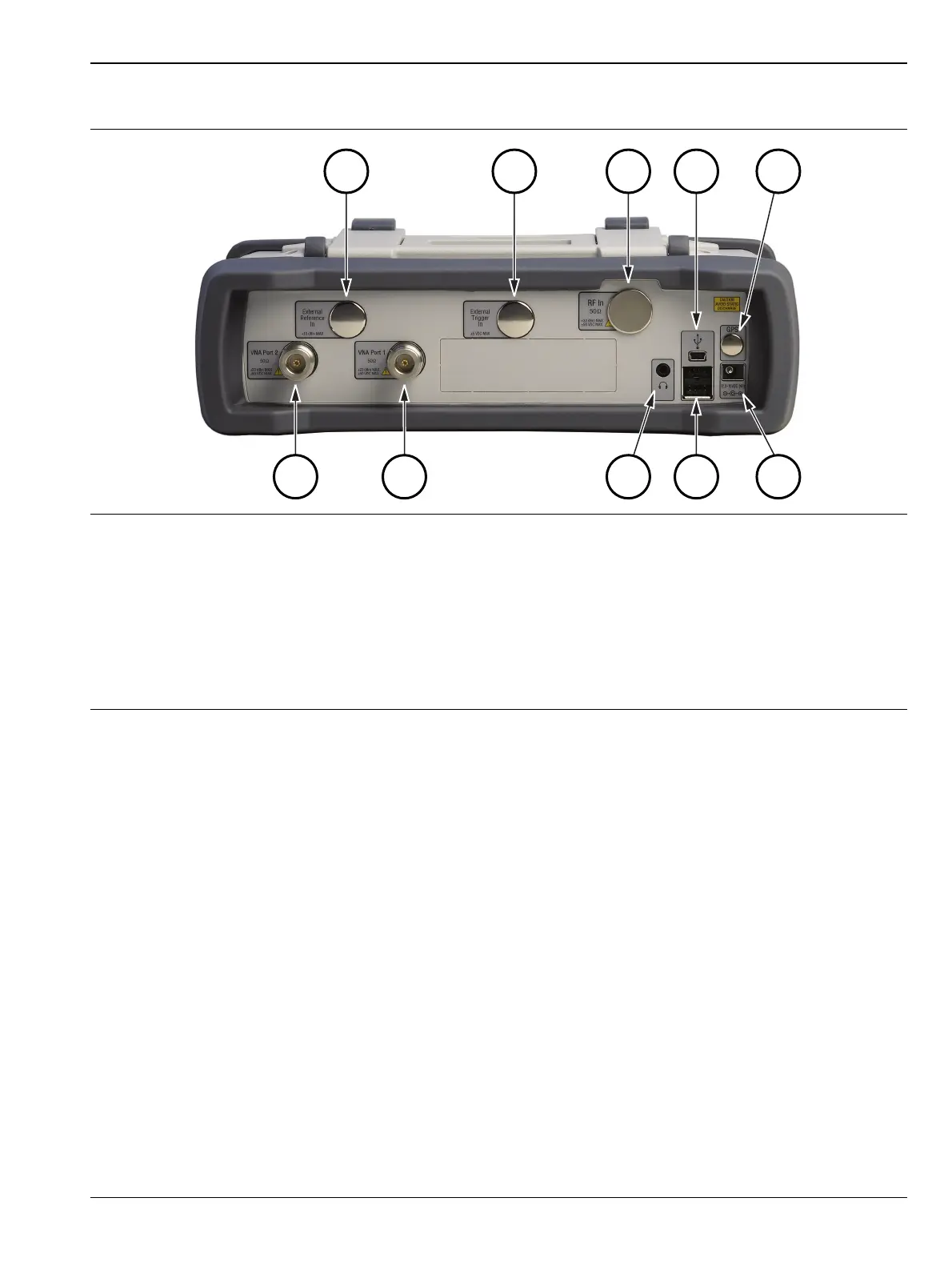

MS202xB Connector Panel
1. External Reference In (not installed in MS202xB models)
2. External Trigger In (not installed in MS202xB models)
3. RF In (not installed in MS202xB models)
4. USB Mini-B (Full Speed, USB 2.0)
5. GPS Antenna (location when installed with Option 31)
6. External Power
7. USB Type A (Full Speed, USB 2.0)
8. Headphone
9. VNA Port 1 50 ohm (Green LED indicates the Port is Transmitting Power)
10.VNA Port 2 50 ohm (Green LED indicates the Port is Transmitting Power)
Figure 6-7. MS202xB Connector Panel
1
3
7
9
8
2
5
4
6
10
