5-2 Battery Pack Removal and Replacement Battery Information
5-2 PN: 10580-00303 Rev. D Model MS20xxB MM
5-2 Battery Pack Removal and Replacement
This section provides instructions for the removing and replacing the battery pack.
1. With the instrument standing upright on its base and standing on a stable surface, locate the battery
access door, as illustrated in Figure 5-1.
2. Place a finger on the actuator in the recess at the top of the battery access door and press downward
toward the bottom of the instrument and also outward. The door must be moved against spring pressure
in order to release the upper catch.
3. Remove the battery access door.
4. With the battery access door completely removed, grasp the flexible handle of the battery and pull the
battery straight out of the instrument (refer to Figure 5-2 on page 5-3).
5. Replacement is the opposite of removal. Note the orientation of the battery contacts (refer to Figure 5-3
on page 5-3), and be sure to insert the new battery with the contacts facing the bottom of the instrument.

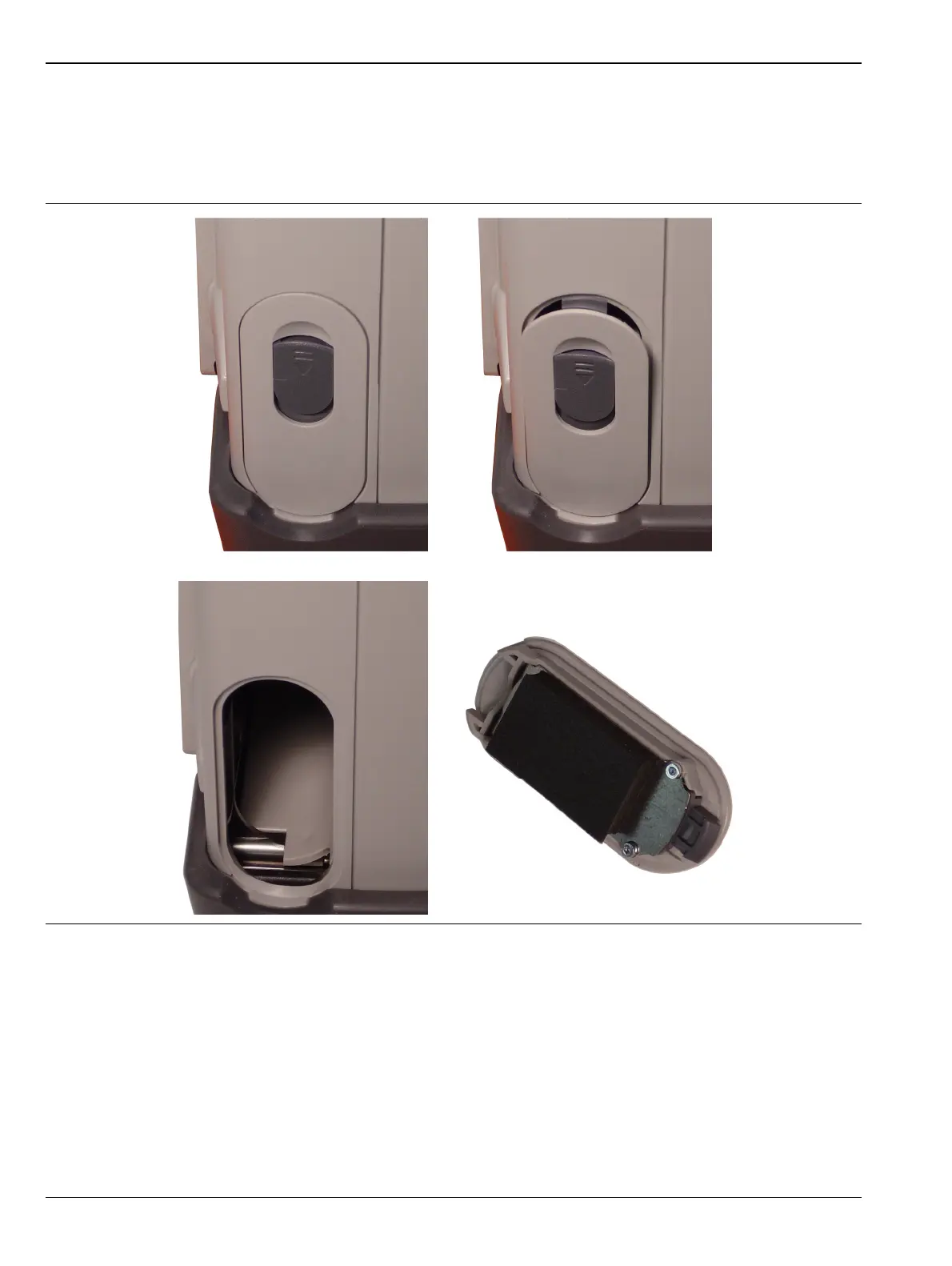

Figure 5-1. Battery Access Door
