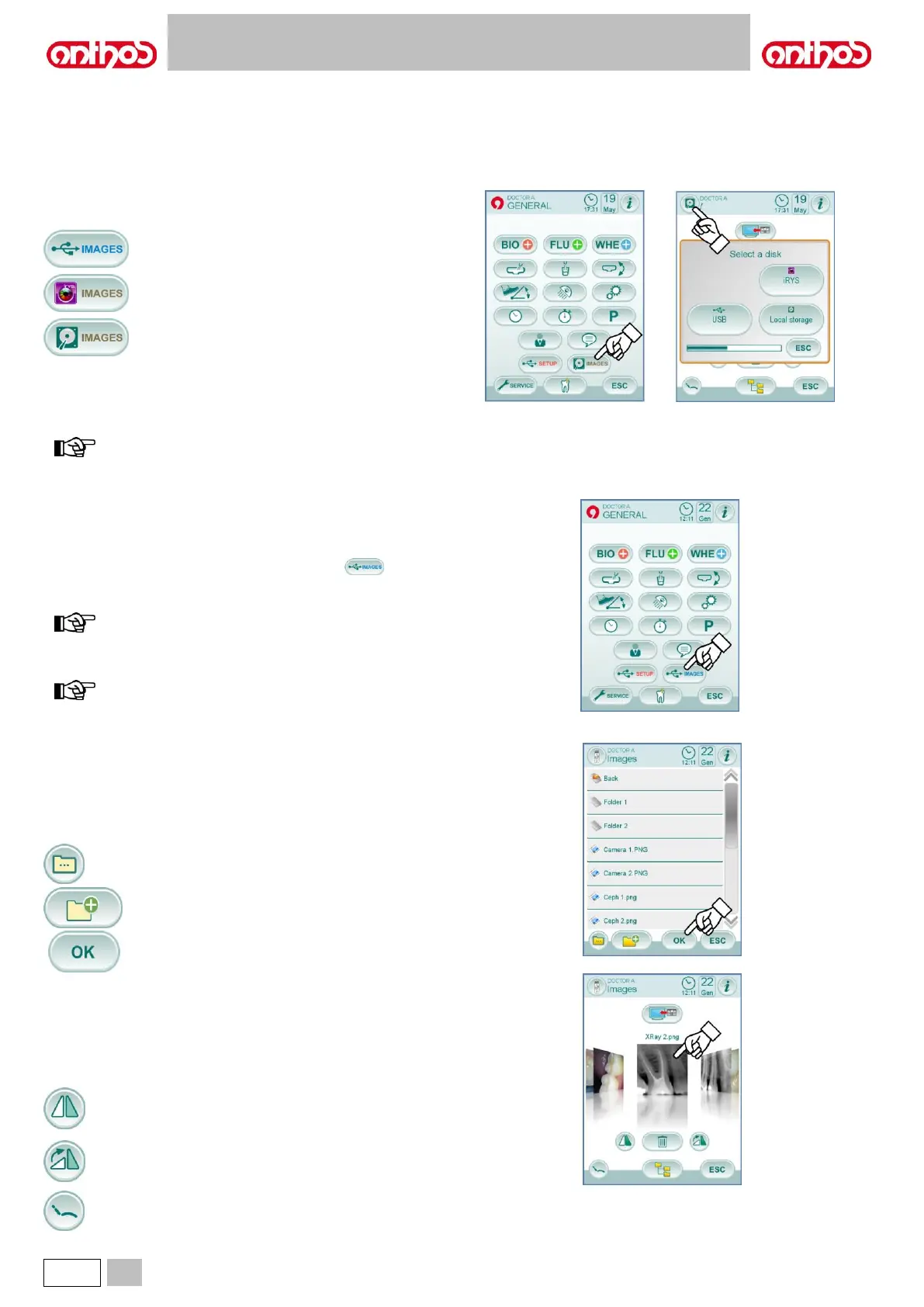

5.1.1.2.16. IMAGE MANAGEMENT
The dental image displaying and processing mode can be entered through the "Image management" screen.
The images present in the dental unit local memory or in a USB key can be managed and the MYRAY iRYS image management software can be
interfaced with (see paragraph 5.1.1.2.16.1.).
PNG formats, both at 8 bit / pixel and at 16 pit / pixel, JPG or TIFF formats with resolutions between 640x480 and 2500x2500 pixels are supported.
Memory used.
According to the memory used, the following icons are displayed:
USB key connected.
PC connection through iRYS.
Local memory.
Changing the memory used.
The memory used can be changed as follows:
• Touch the icon in the top left corner of the display.
• Choose the desired memory.
NOTE:
the icon in the top left corner displays the currently used
memory.
Operation with USB key.
Proceed as follows:
Insert a USB key inside the special port on the dentist's board console
(see paragraph 5.).
From the MAIN SETTINGS menu, touch icon button to access
the USB IMAGES sub-menu.
Flash drive contents will be scanned to show a list of folders .
NOTE:
the operation might require a few minutes to be completed,
based on the size of the flash drive and on the number of
images it contains.
NOTE:
while consulting the images, do not disconnect the USB flash
drive.
"List" screen.
• Touch a folder to display the list of the images it contains.
• Touch the sidebar to scroll the image list.
• Touch the BACK element, always on top of the list, to go back to
previous folder.
• Available controls:
Display other available options.
Create a new folder.
Display the images contained inside current folder as
thumbnails.
"Thumbnail" screen.
• Scroll image thumbnails by touching on the left or on the right of the
central image.
• Touch the image to display it in full screen mode.
• Available controls:
Overturn image.
Turn image clockwise.
Recall main controls of main screen.
