Anthos A7 Plus - Power Pedal Foot Control

A7 Plus – OPERATOR'S MANUAL
36
EN
Right-hand button operation ( 5 ).
Operation:
• Holding down the button for at least 2 seconds with the instruments in
rest position:
Activation of the “Automatic dental chair return” programme.
• Holding down the button for at least 2 seconds with instrument
extracted:
Water Clean System Control: sends a jet of running water to
instruments such as the Turbine, the Micromotor and the Scaler for
rinsing the spray ducts.
Water is delivered by pressing the button. Water is no longer delivered
as soon as the button is released and air is automatically blown to
eliminate any drops of liquid remaining inside the spray ducts.
• Press the button shortly with the instrument extracted:
Activation or deactivation of instrument spray.
WARNING:
A short acoustic signal warns of the switching.
When the LED ( 6 ) is on, it indicates operation with
spray.
Wireless version.
This foot control can also be supplied in WIRELESS version (see
"WIRELESS foot control" paragraph).
Protection against liquid penetration.
The foot control is protected against liquid penetration. Degree of
protection: IPX1.
Cleaning.
Clean the foot control using a suitable product (see Paragraph 1.4).
NOTE:
if the foot control slips on the floor, remove any dust from the
slip-proof rubber found under the base with a dry cloth.

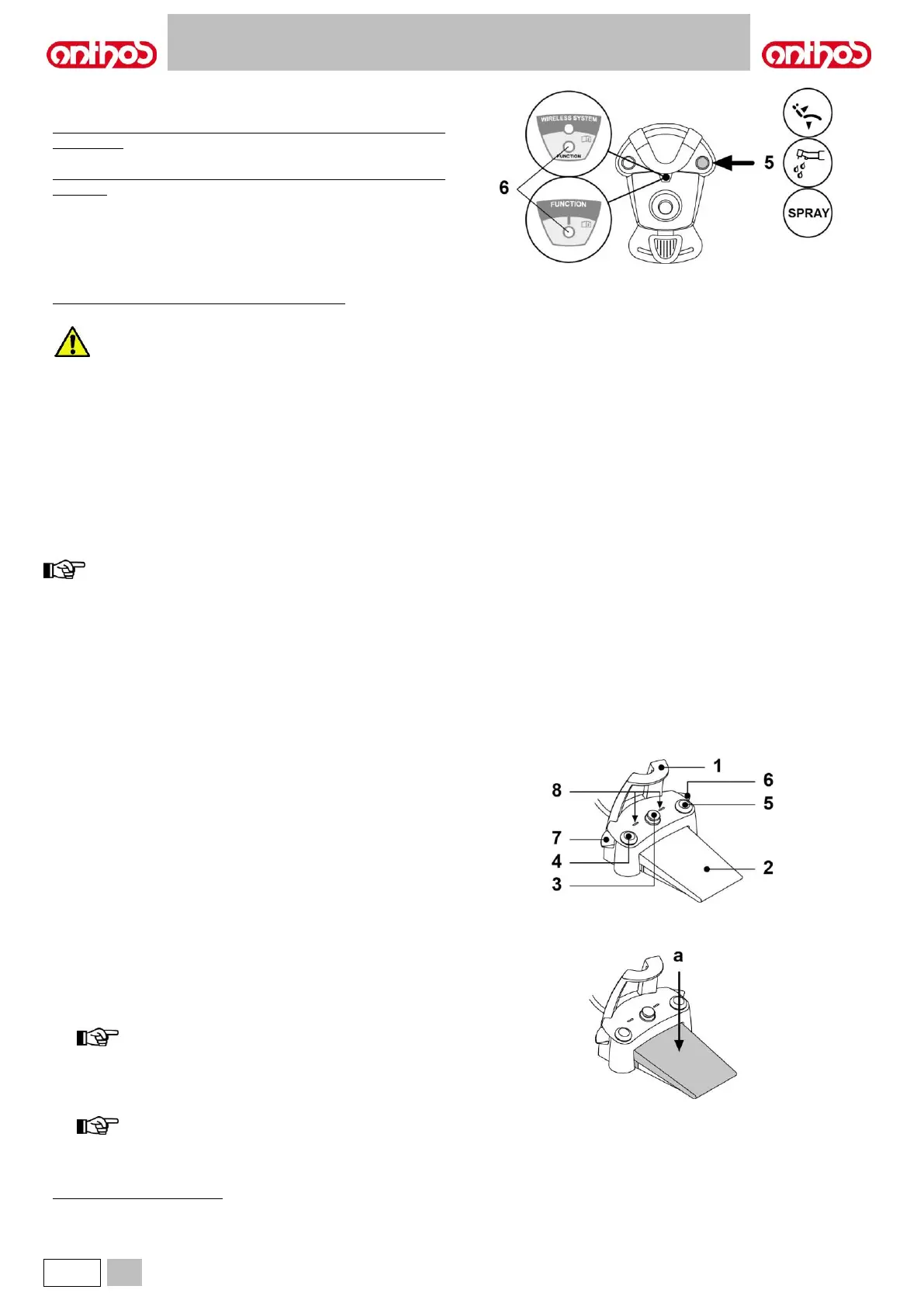

5.2.3. "POWER PEDAL" FOOT CONTROL
Description of the parts.
1 Handle.
2 Foot control.
3 Dental chair movements.
4 Chip-air control or activation/deactivation of instrument spray function.
5 Water Clean System control or activation/deactivation of instrument
spray function.
6 Programme "B" recall or automatic dental chair return activation.
7 Programme "A" recall or patient rinse position activation.
8 Spray operation LED.
Foot control operation ( 2 ).
• With instrument removed
- Pushing the pedal ( a ), the instrument is started.
The instrument rpm (or power) can be adjusted by varying the
pressure exerted on the foot control.
NOTE:
the foot control adjusts the speed/power of the instrument
from the minimum to maximum value set from the
instrument board.
- Release the foot control to stop instrument operation.
NOTE:
with the spray active, at the end of the operation a blast of
air is automatically activated to remove any residual drops
of liquid in the spray ducts.
• With instrument in rest position
When the foot control is pressed, all automatic dental chair
movements are automatically blocked.
