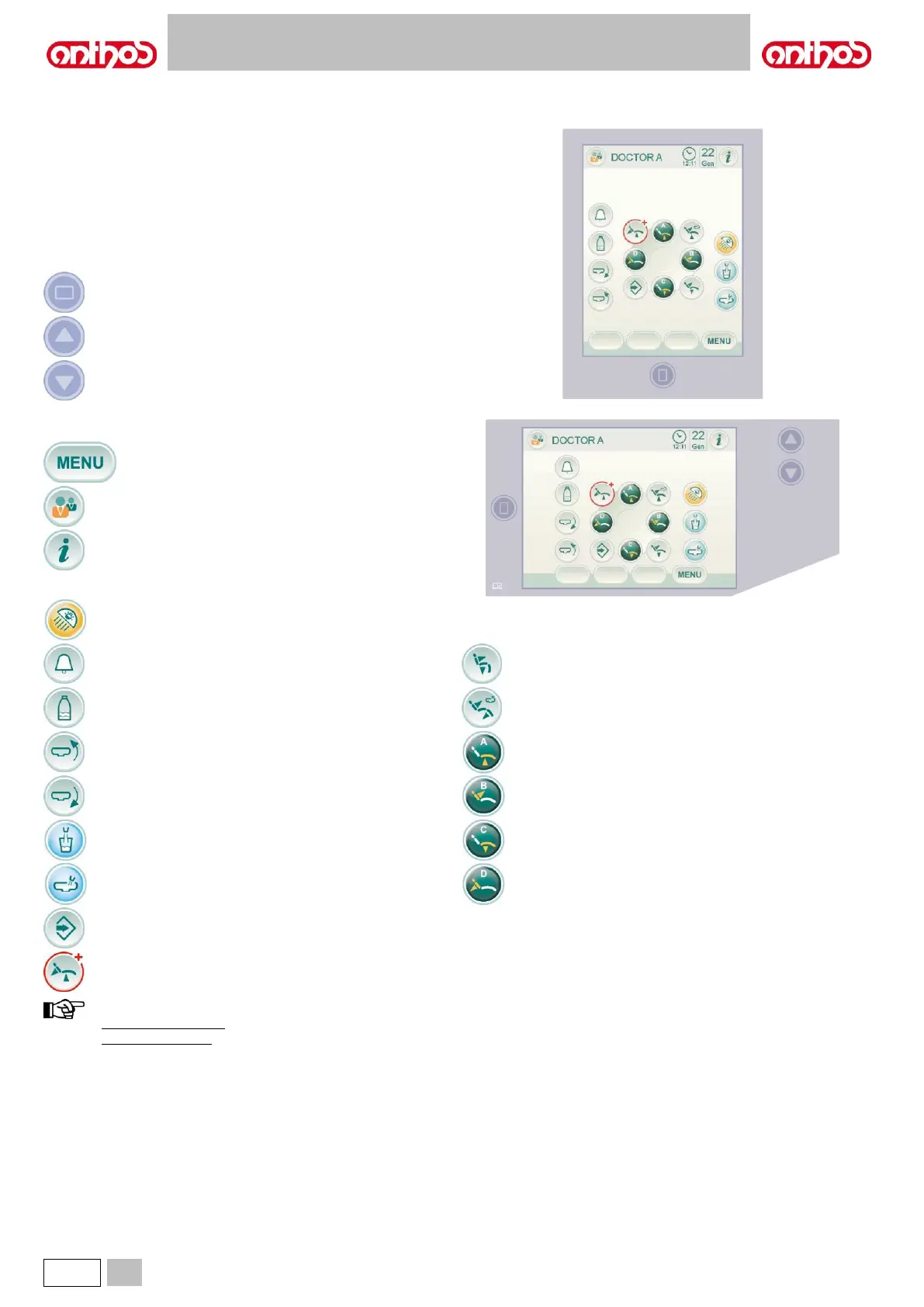

5.1. DENTIST’S CONTROL CONSOLE
Dental units A7 are equipped with a dentist's console with touch-screen
interface, consisting of a backlit multi-touch glass capacitive touch panel
and a wide 5.7" colour TFT display, with LED backlighting, 640x480 pixel
resolution and 16.7 million colour imaging.
(1) Control pad for the following models:
A7 CONTINENTAL
(2) Control pad for the following models:
A7 INTERNATIONAL
Description of capacitive buttons:
Touch-screen lock button.
Dentist’s instrument board ascent button (INTERNATIONAL
versions).
Dentist’s instrument board descent button (INTERNATIONAL
versions).
Description of icon buttons displayed on the touch panel:
MAIN SETTINGS menu recall.
Operator change.
Warning icon displaying.
1)
2)
Operating light On/Off.
Assistant's call.
S.H.S. system enabling/disabling
Bowl counter-clockwise movement control
(active with motor-driven bowl, only).
Bowl clockwise movement control
(active with motor-driven bowl, only).
Water-to-cup control.
Water-to-bowl control.
Dental chair function saving.
Emergency position recall.
Reset position recall.
Rinsing position recall.
Seat up and programmed position A recall.
Backrest up and programmed position B recall.
Seat down and programmed position C recall.
Backrest down and programmed position D recall.
NOTE: operation of dental chair buttons.
• Button pressed shortly: automatic recall of set position.
• Button held pressed: manual positioning.
