• When the ZEN-Xi sensor is turned off or set to standby mode, the
screen with the X-ray images taken is still shown on the TOUCH
DISPLAY, to go back to main screen, simply touch icon button .
X-ray image displaying.
The X-ray image displaying function is the same already described for
the images taken by the C-U2 camera (see paragraph 5.8.).
X-ray image transfer.
The X-ray image transfer function is the same already described for the
images taken by the C-U2 camera (see paragraph 5.8.).
This device allows dispensing a saline solution through a disposable line
without contact.
This device can be installed only if coupled with micromotor.
when used with micromotor, contra-angles with outer cooling or
for hollow drills (type R20-L) must be used.

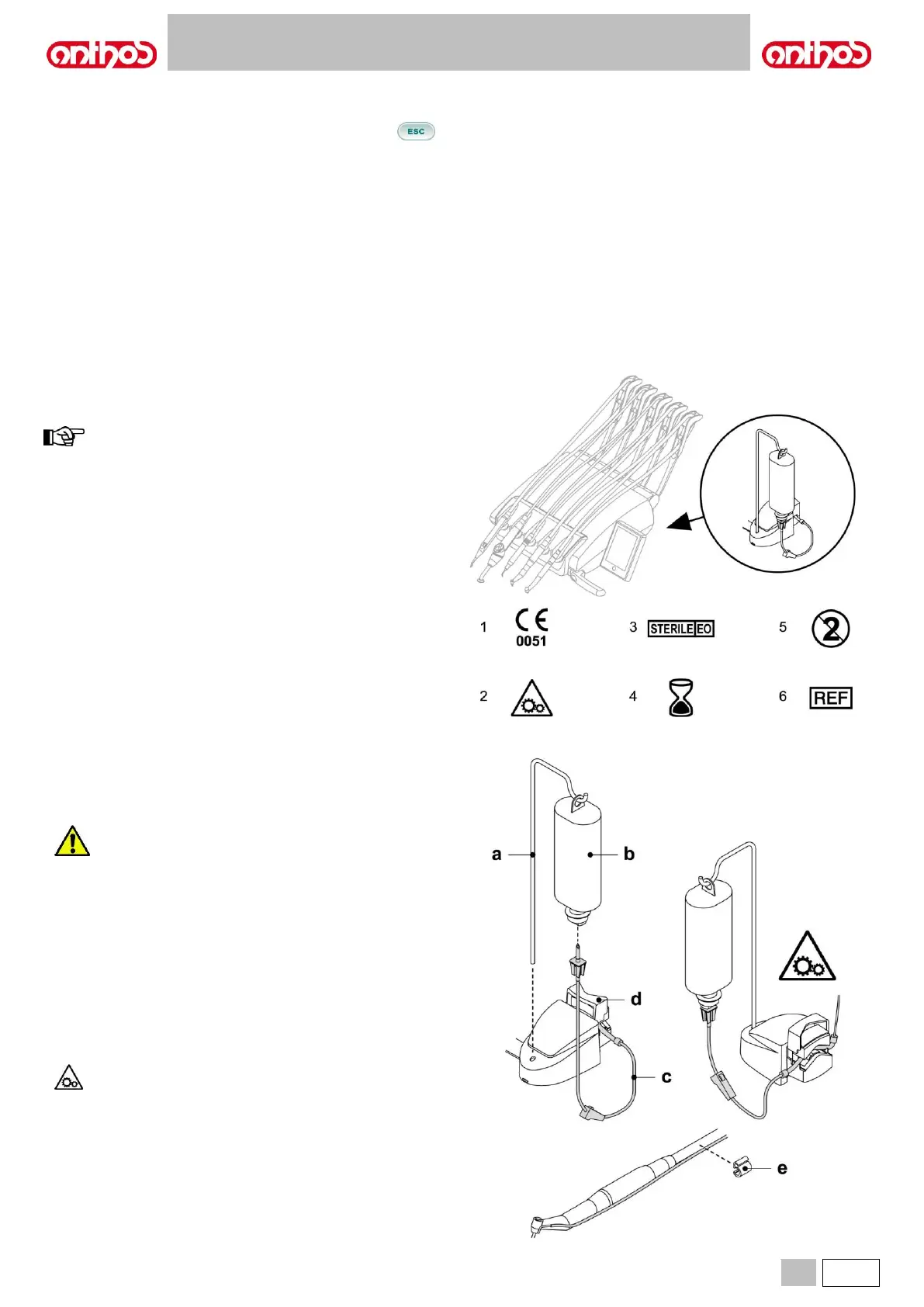

Description of the symbols present on the device.
1 Material in compliance with essential requirements of directive
93/42/EEC and subsequent changes.
2 WARNING: Pinching hazard.
Do not put your hands inside rotating parts.
3 Material sterilized by Ethylene Oxide.
4 Expiry date (yyyy-mm).
5 Disposable material.
6 Material identification code.
Commissioning.
• Aim and insert the IV pole ( a ) inside its seat and hang the bottle or
container ( b ) of saline solution.
• Open the irrigation sterile line package ( c ) and take out the contents.
Wear disposable sterile gloves.
Make sure that package is whole and check irrigation line
expiry date. Only CEFLA s.c. irrigation kits ensure a fail-
safe operation. These are sterile and disposable lines, do
not re-use them to prevent any microbiological
contamination of the patient.
• Open peristaltic pump cover ( d ) by turning it up.
• Insert hose, making sure to position the larger diameter section inside
the pump V-shaped seats. Pump rotates clockwise, so position hose so
that the section coming from bag is inserted on pump left-hand side
(see figure).
• Close cover ( d ). Should cover prove hard to be closed, open it again
and check hose position.
Do not run pump with cover (d) open, finger pinching
hazard.
• Pierce saline solution bottle cap ( b ) with the sharp end of irrigation
line ( c ).
