13.2.2 Sidestream CO
2
Module
Sidestream CO
2
module with dehydration flask:

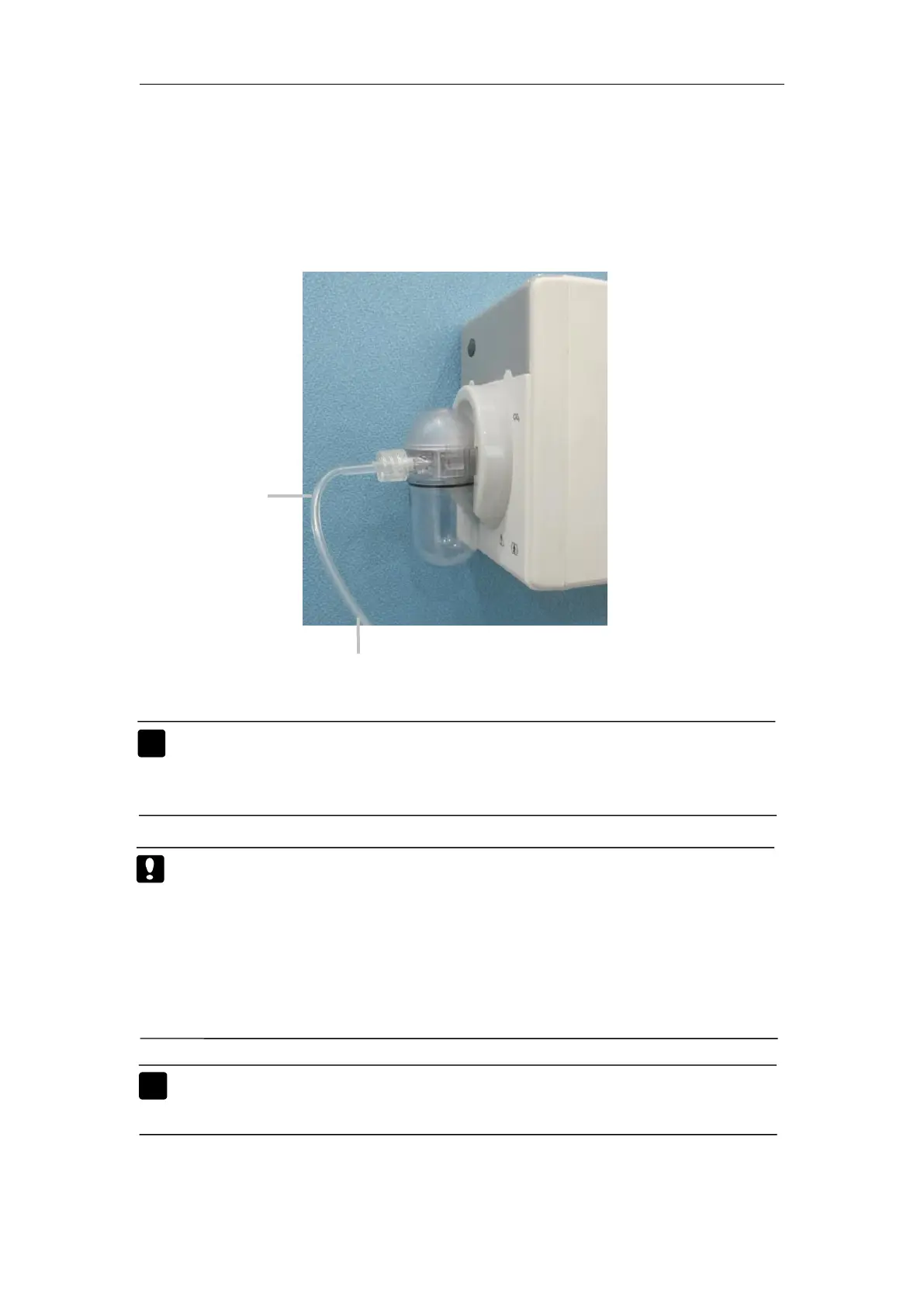

1. Fix the dehydration flask to the receptacle on the monitor, and connect the
CO
2
measurement components as follows:
Note: Inserting the CO
2
module into slot automatically starts the
sampling pump. Removal of the CO
2
module turns the sample
Pay attention to the water level of dehydration flask. If the highest water
level reaches, please replace the dehydration flask in time to prevent the
module from soaking by water.
Please keep the sampling tube clean, and prevent the tube from clogging
Note: Dehydration flasks and sampling tubes are disposable, please
use products provided or designated by manufacturer.
This end connected with the patient airway
