The state of the LED on the AG module：
Indication
Status
Steady green light
System OK
Blinking green light
Zeroing in progress
Steady blue light
Anesthetic agent present
Steady red light
Sensor error
Blinking red light
Check sampling line

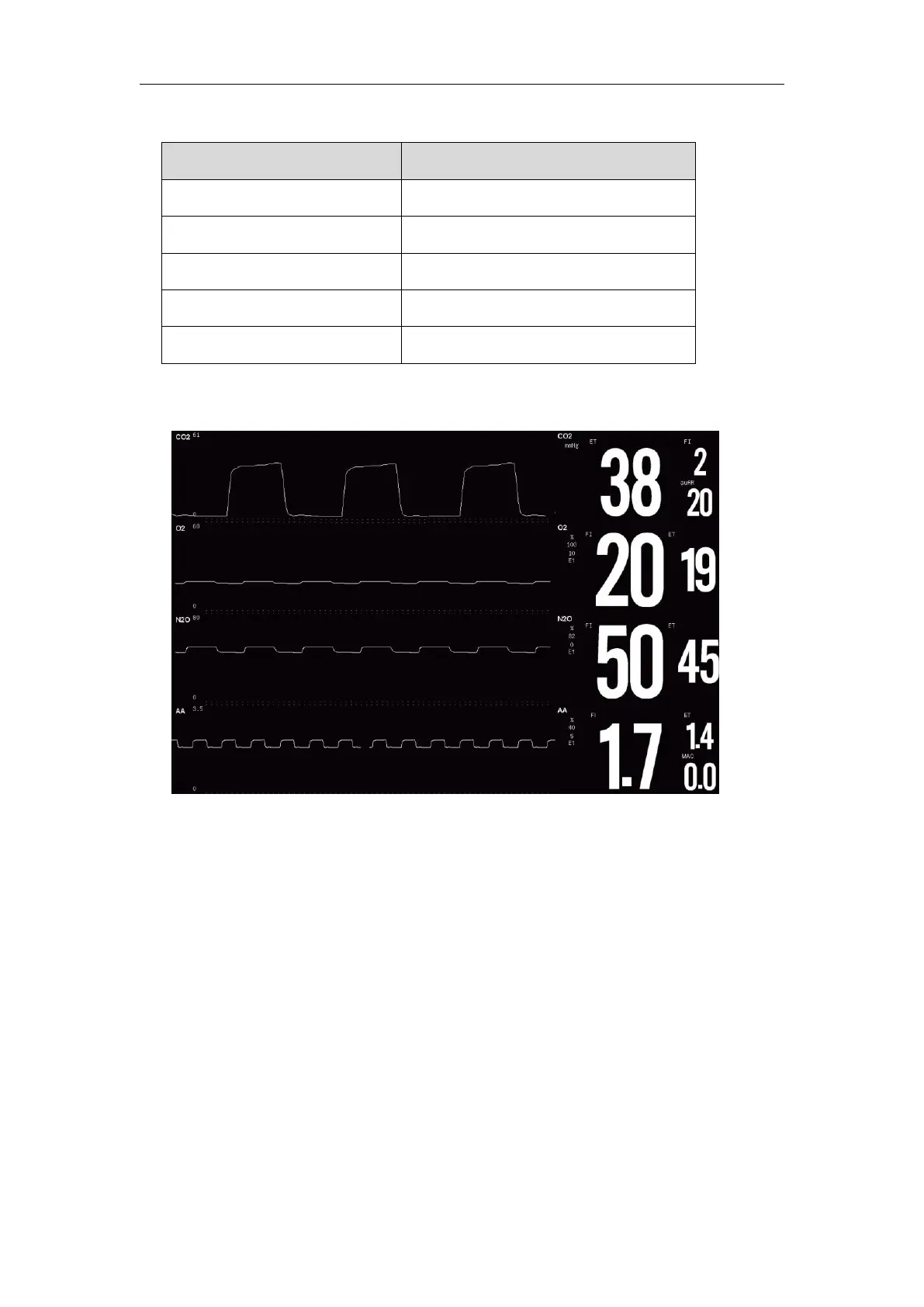

14.3 AG Display
AG module can send waves and numerics for all measured gases for
display on the monitor screen. Including:
1. Waveform of CO
2
, O
2
, N
2
O and AA*;
2. Et and Fi Value of CO
2
, O
2
, N
2
O and AA;
3. MAC: MAC is defined as the minimum alveolar concentration at
steady-state that prevents reaction to a standard surgical stimulus (skin
incision) in 50% of patients at 1 atmosphere (i.e. sea level);
4. Gas Unit;
5. Alarm limit of gas;
6. Alarm source of gas.
AA* means a kind of anesthetic agent among the Desflurane (DES),
Isoflurane(ISO), Enflurane (ENF), Sevoflurane (SEV) and Halothane (HAL).
