Anyview A6 - Chapter 19 EMS; 19.1 Appearance and Structure

Patient monitor User’s manual
Chapter 19-1
Chapter 19 EMS
19.1 Appearance and Structure

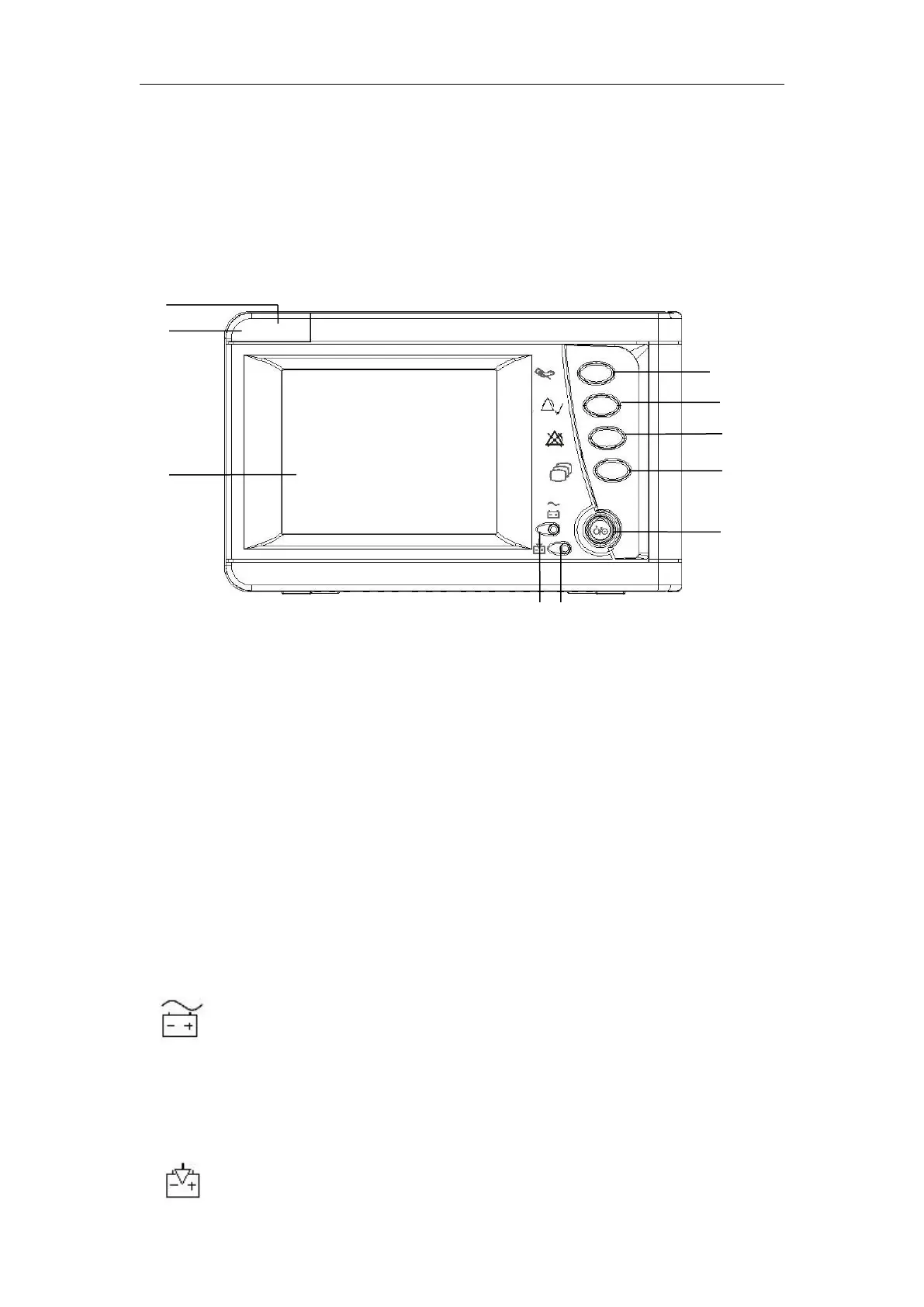

19.1.1 Front View
1. Physiological alarm indicating lamp
When a physiological alarm occurs, this lamp will light up as defined
below:
 High level alarm: the lamp quickly flashes red.
 Medium level alarm: the lamp slowly flashes yellow.
 Low level alarm: the lamp lights yellow without flashing.
2. Technical alarm indicating lamp
When a technical alarm occurs, this lamp will light up as defined below:
 Medium level alarm: the lamp slowly flashes yellow.
 Low level alarm: the lamp lights blue without flashing.
3. Display screen
4. Power indicating lamp
 Green: When AC mains is connected.
 Orange: When AC mains is not connected and monitor is powered
by battery.
 Off: When AC mains is not connected.
5. Battery charging indicating lamp
