Patient monitor User’s manual
Chapter 8-3

Parameter Display
8.5 Setting Resp
8.5.1 Setting Resp Parameter
Select Resp parameter area to enter Resp parameter setting menu.
 Setting Resp Lead
In the Resp setting menu, select【Resp Lead】, and you can select【RA-LL】
or【RA-LA】.
 Setting Apnea Alarm Time
In the
【
Resp Setup
】
, select
【
Apnea Alm
】
, and select the apnea time as
required in the options are 【10s】 to 【60s】. The monitor indicates an alarm
when a pre-adjusted time has elapsed since the last detected breath.
 Setting Wave Gain
If Resp wave on the screen is too small or be cut much, you shall select
【Wave Gain】 in the 【Resp Setup】menu to change the amplitude of Resp
wave. The options are【0.25×】,【1×】,【2×】and【4×】.
 Setting Wave Speed
In the 【Resp Setup】menu, select【Wave Speed】, and select proper sweep
speed in the options are 【6.25mm/s】， 【12.5mm/s】and【25mm/s】.

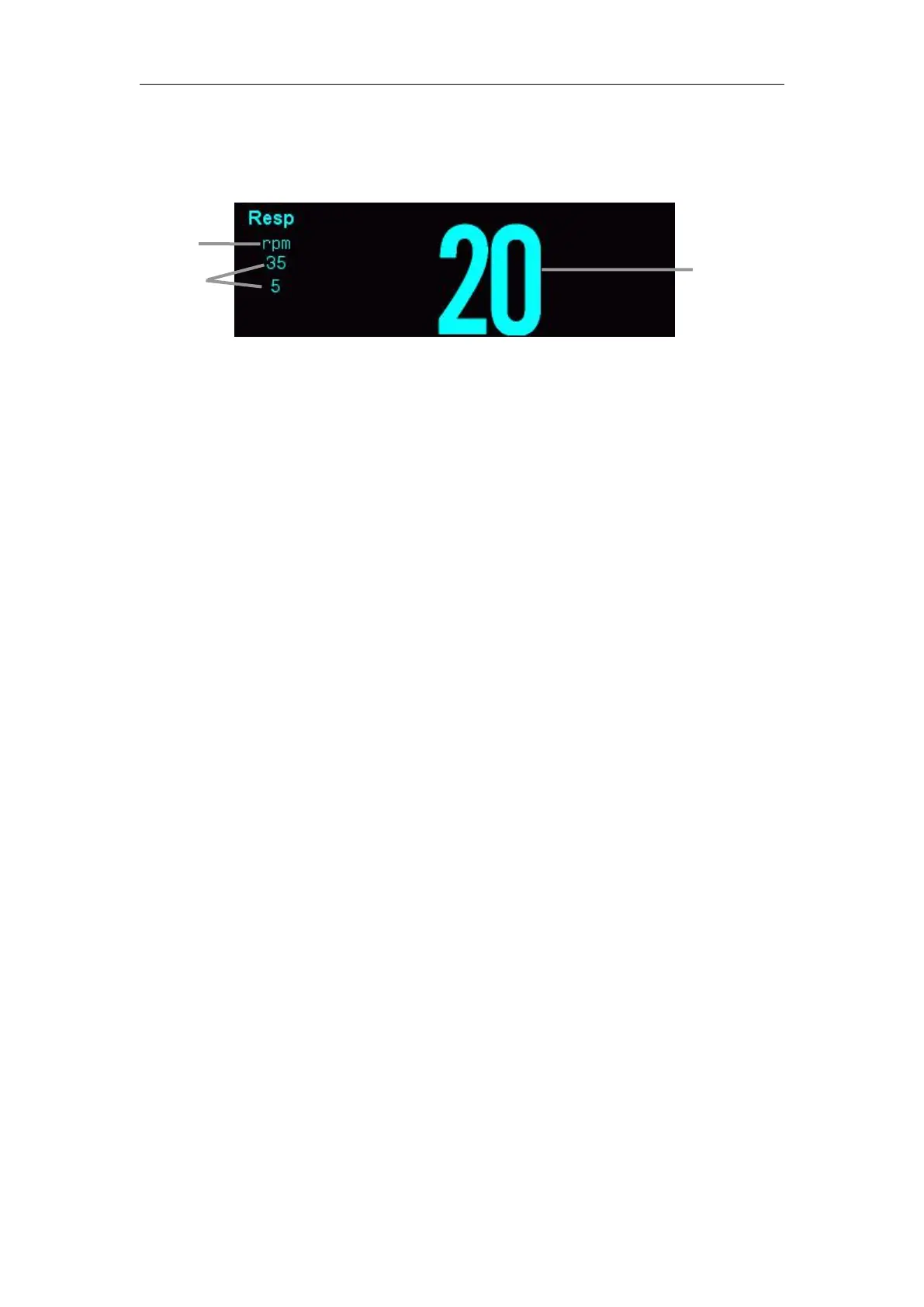

RR
alarm limit
RR value
RR unit
