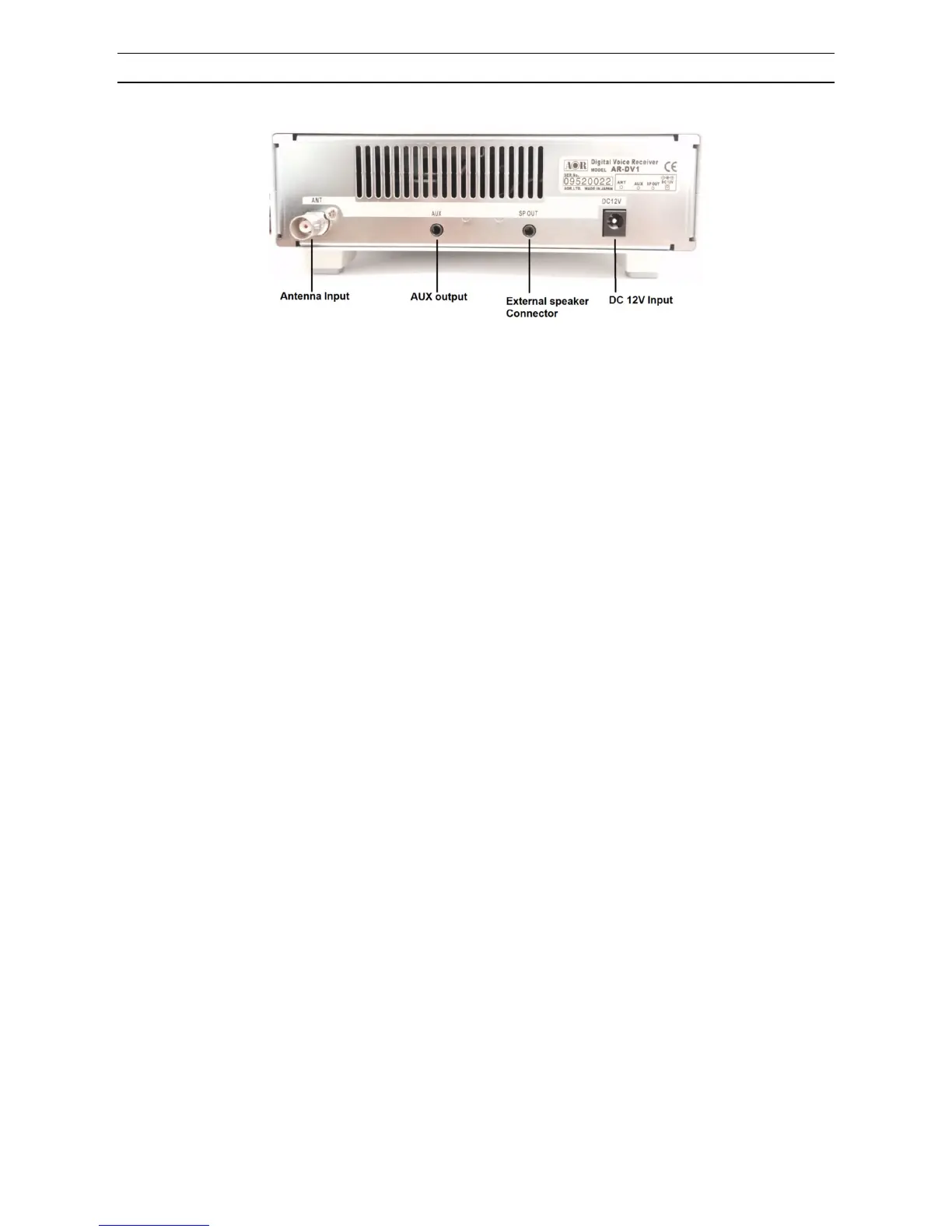

2-2 REAR PANEL
1. Antenna input
This input can be used to connect either the supplied telescopic antenna or an external antenna.
When an external antenna is used, select one with 50 Ohms of impedance, unbalanced.
2. AUX output
3.5mm mono jack. The discriminator output (in FM mode only, 6kHz and 15kHz bandwidth) is 600 Ohm
nominal, -20dBm output.
3. External speaker connector
3.5mm mono jack. When an external speaker is used, the internal speaker will be disabled.
4. DC 12V input
Connect the supplied AC adapter to this connector. When using your own power supply, select one with
12V DC, 1 A. capacity. To minimize noise getting into the receiver, please avoid using any switching type
power supply.
