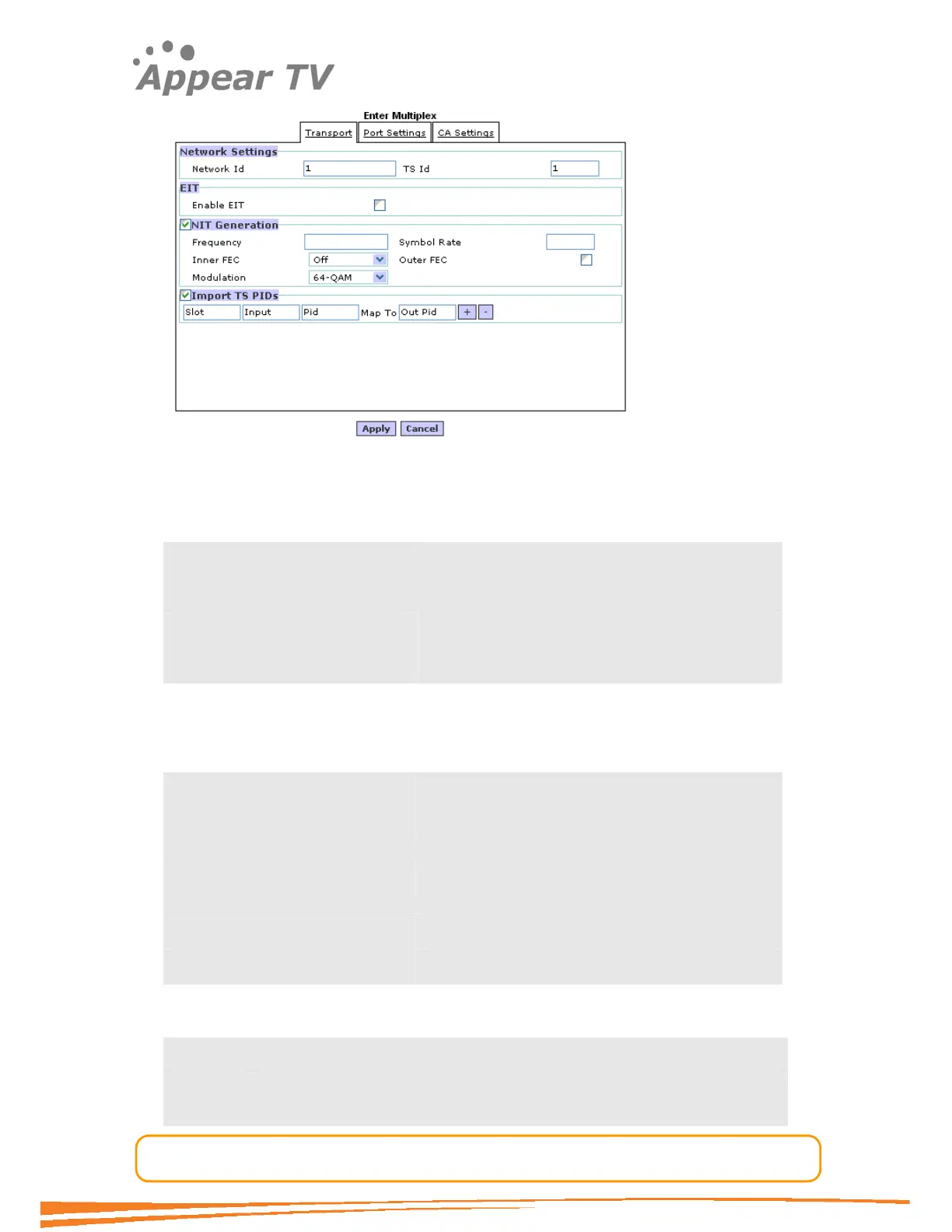

Figure 63 - IP MPTS “Transport”-tab
The basic MPTS parameters are first configured. These parameters are listed below
with a short explanation:
Network Id Set the Network Identification tag
TS Id Set the Transport Stream Identification tag
Enable EIT Enable EIT regeneration.. When enabled the EIT
for all the services added to this MPTS output will
be regenerate and added to the MPTS output.
If the case that the IP MPTS stream is to be converted to QAM modulation further
down the signal chain it is possible to add the QAM parameters which then will be
added into the NIT. Check the NIT Generation check box and enter the QAM
parameters.
Frequency Set the carrier frequency in MHz
Inner FEC Valid inner FEC values are 1/2, 2/3, 3/4,5/6,
7/8, 8/9, 3/5, 4/5 or 9/10
Modulation Modulation type can be 16-QAM, 32-QAM, 64-
QAM, 128-QAM or 256-QAM
Symbol Rate Set the Symbol Rate of the QAM Modulator
Outer FEC Enable outer FEC
Tick the Import TS PIDs box to configure PIDs not signaled in the transport stream.
Then enter the parameters.
Slot The slot position of the input module containing the PID to be forwarded
Input Enter an integer number for the input port. Port A = 0, Port B = 1, Port C
= 2 and Port D = 3.
