SW Version 2.04 30-January-2009 Page 84 of 128
PID Input PID to be forwarded
Out PID Input PID is mapped to this output PID number. Note that each output
PID occupies one channel through the output card like any other channel.
The maximum number of channels through the output card is 250.

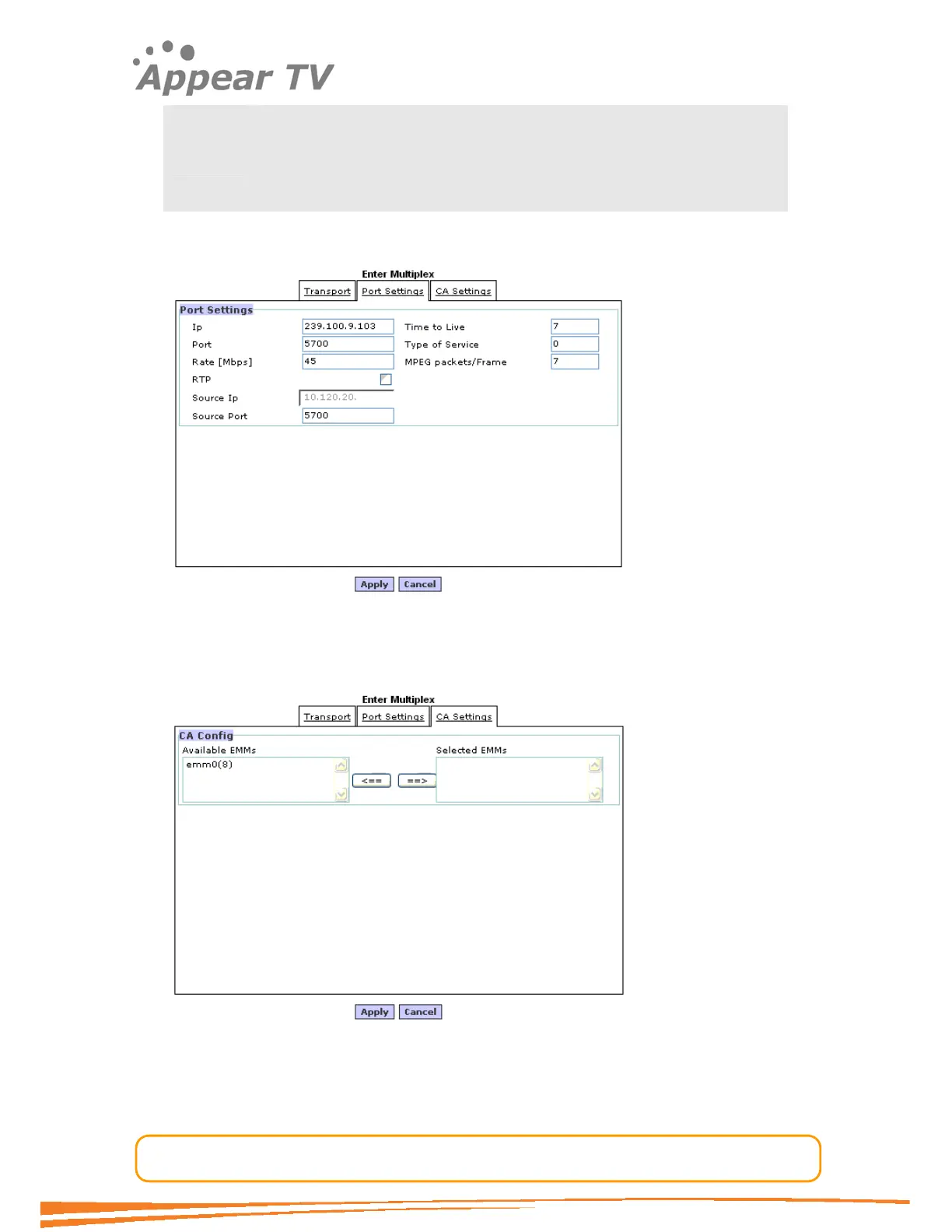

The Port Settings tab is card-specific and will differ according to whether it is for an
IP or an ASI output card. For the IP output card the following dialog yields.
This dialog is identical to the one for the IP SPTS configuration. Please refer to the
SPTS configuration description for details.
The CA Settings
In MPTS mode it is possible to add EMM streams from the connected CA system. Add
the desired EMM(s) and click Apply.
