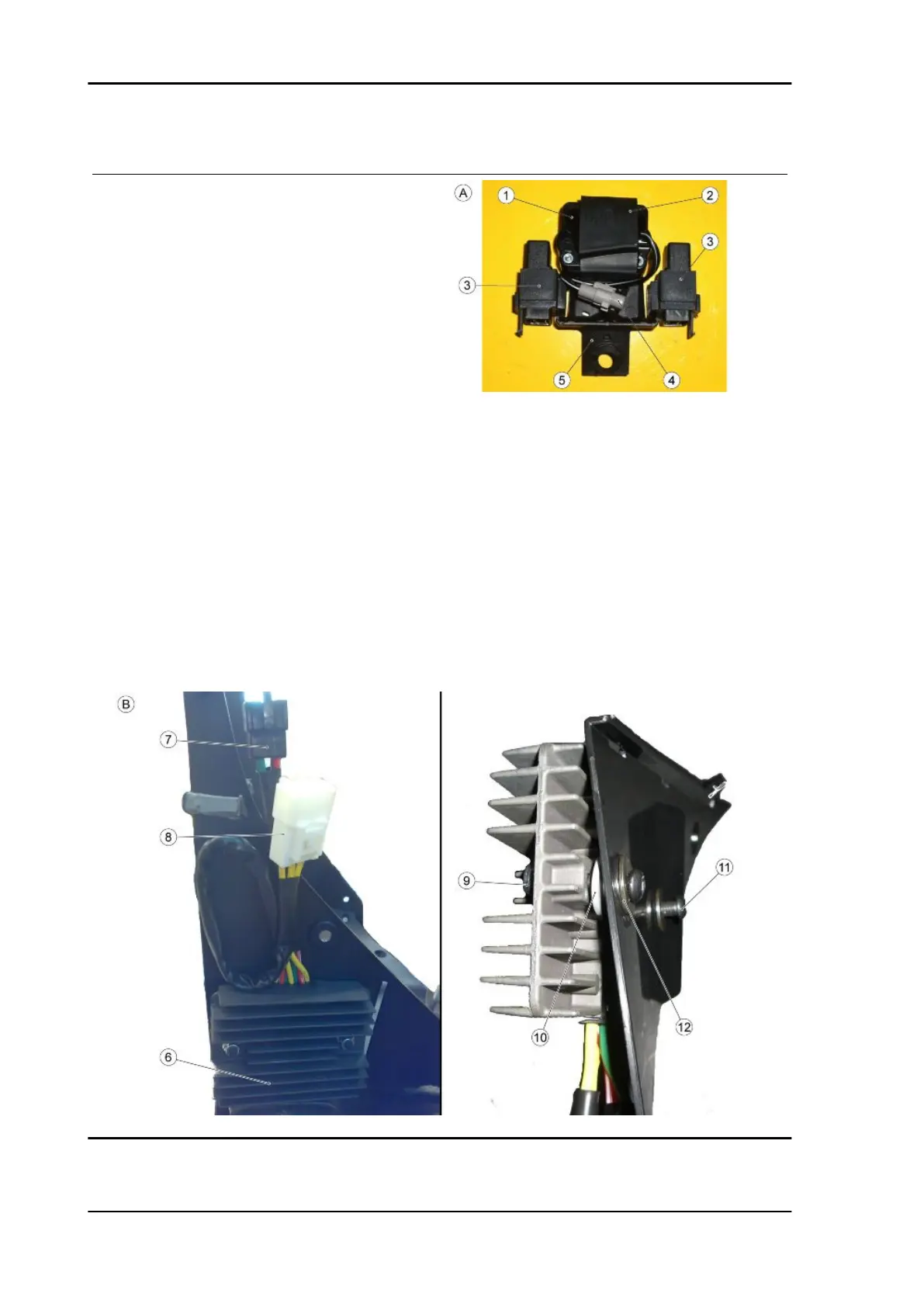

TABLE A - RELAY AND FALL SENSOR
MOUNTING PRE-FITTING
Check that the fall sensor has been positioned
correctly, with the arrow above the indication UP-
PER facing upward.
1. fall sensor
2. Fall sensor rubber ring
3. Relay
4. Fall sensor connector
5. Mounting
TABLE B - REGULATOR PRE-FITTING
6. Regulator
7. Regulator connector
8. Flywheel connector
9. Self-locking nut (x2)
10. T-shaped bushing (x2)
11. TBEI M6x30 screw (x2)
12. Washer (x2)
TABLE C1 - HEADLAMP PRE-FITTING
Electrical system RSV4 Factory a-PRC
ELE SYS - 104
