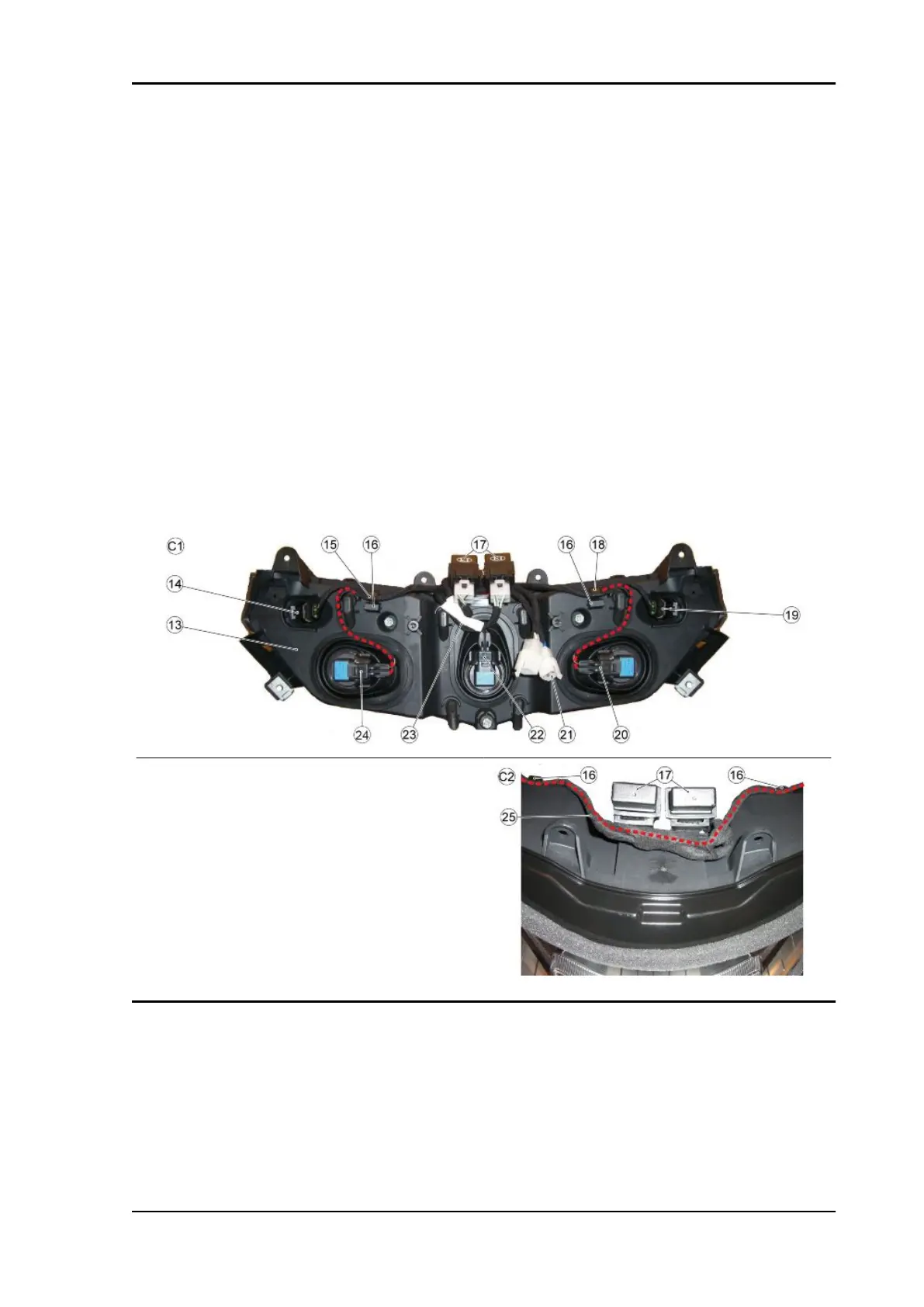

The headlamp cable harness (23) and the two relays with a relay socket rubber ring (17) must be fit on
the headlamp (13) as shown in the photos below.
13. Headlamp
14. Left position light connector
15. Cable harness routing in the cable grommet
16. Cable grommet
17. Relay with relay socket rubber ring
18. Cable harness routing in the cable grommet
19. Right position light connector
20. Right low beam light connector
21. Vehicle cable harness interface connectors
22. High beam light connector
23. Headlamp cable harness
24. Left low beam light connector
TABLE C2 - HEADLAMP PRE-FITTING
16. Cable grommet
17. Relay with relay socket rubber ring
25. Cable harness routing behind the relay
TABLE D - HANDLEBAR CONTROLS
26. Left handlebar control
26A. Quick Shift control on handlebar
27. Clutch connector
28. Right handlebar control
RSV4 Factory a-PRC Electrical system
ELE SYS - 105
