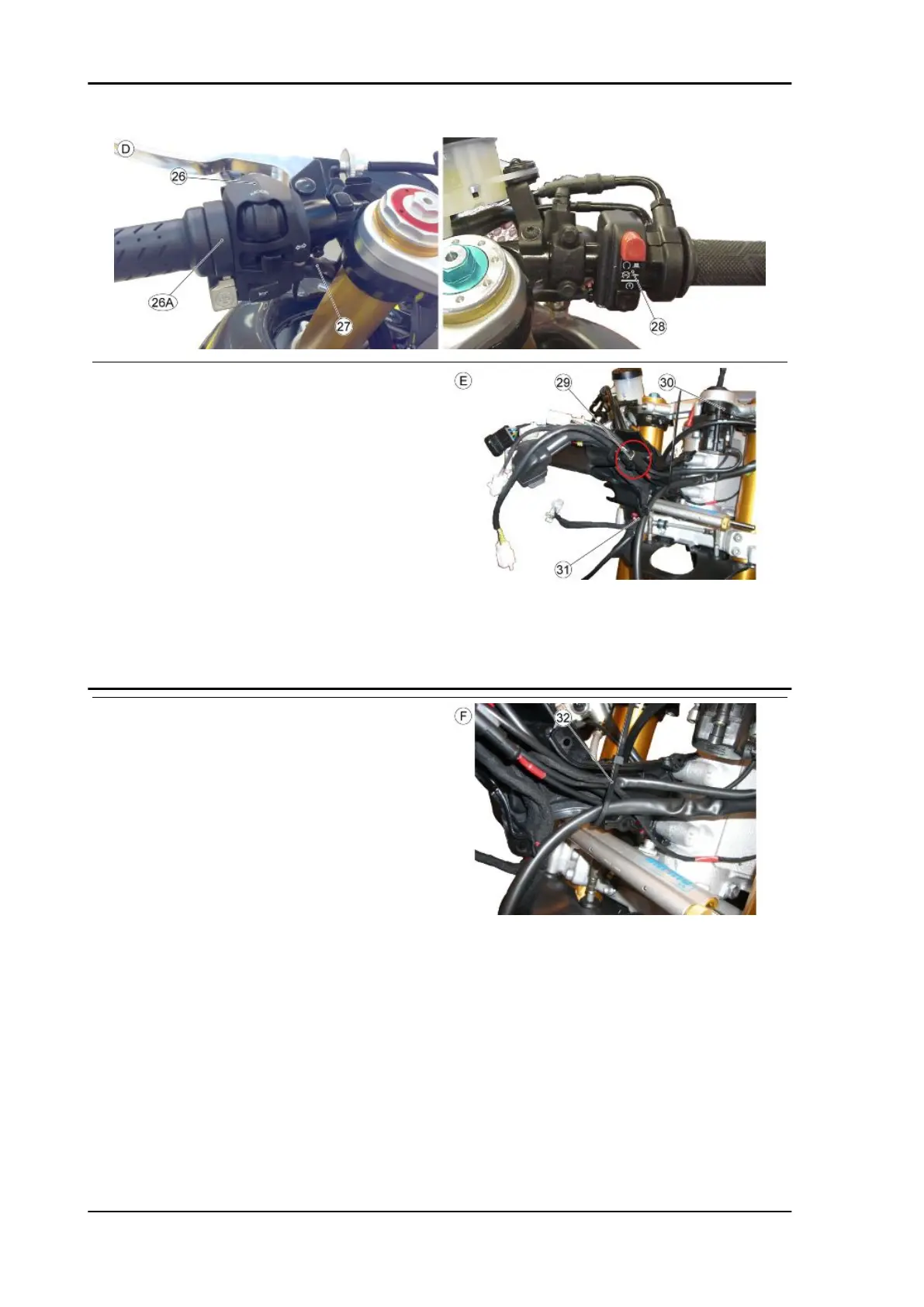

TABLE E - INSTRUMENT HOLDER SUPPORT
AND FRONT PART
Use a clamp (31) to fasten the vehicle cable har-
ness, in correspondence of the grey taping, on the
specific seat located on the instrument holder sup-
port.
Connect the Immobilizer antenna connector (30)
to the corresponding cable harness connector.
29. Antenna connector
30. Ignition switch
31. Clamp
TABLE F - INSTRUMENT HOLDER ARCH
BRACE AND FRONT PART
Pass all the cable harnesses arriving from the right
semi-handlebar (right handlebar control + front
stop switch) and from the left semi-handlebar (left
handlebar control + key switch) inside of the right
arch brace, as shown in the figure; also pass the
cable with the clutch connector on the vehicle ca-
ble harness together with the left switch cable
harness.
Use a clamp (32), as shown in figure, to hold the
various cable harnesses inside the arch brace.
32. Clamp
Electrical system RSV4 Factory a-PRC
ELE SYS - 106
