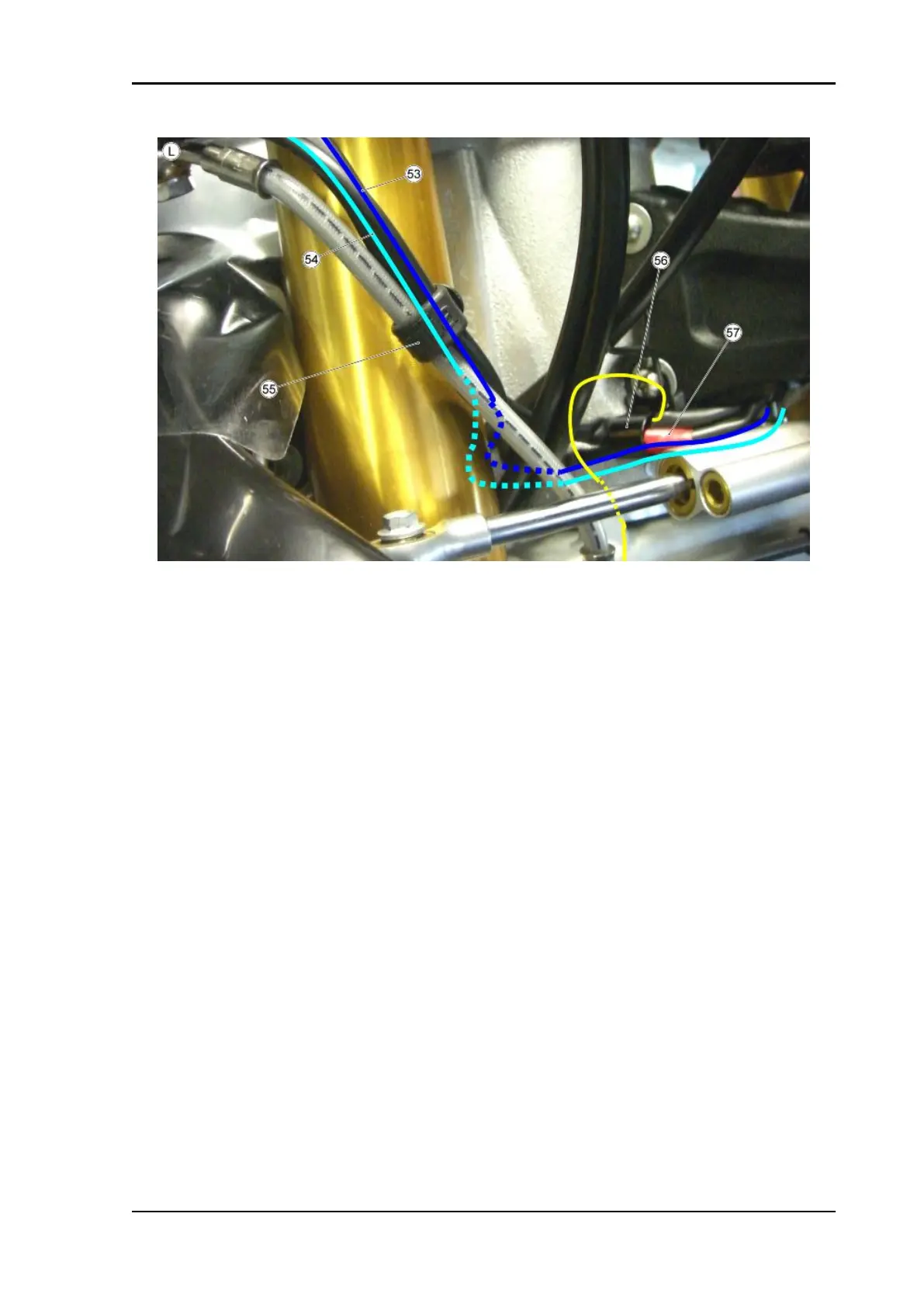

TABLE M - INSTRUMENT HOLDER SUPPORT AND FRONT PART
Left side
Check that the cable grommets are not tensioned on the right and left cable grommet during
steering rotation.
58. Antenna cable harness routing
59. Ignition switch cable harness routing
60. Rubber clamp
61. Cable harness routing to left handlebar control
61A. Quick Shift control cable harness routing
62. Clutch cable harness routing
63. Cable grommet
64. Red tape on the clutch and left handlebar control cable harness in correspondence of the cable
grommet.
RSV4 Factory a-PRC Electrical system
ELE SYS - 109
