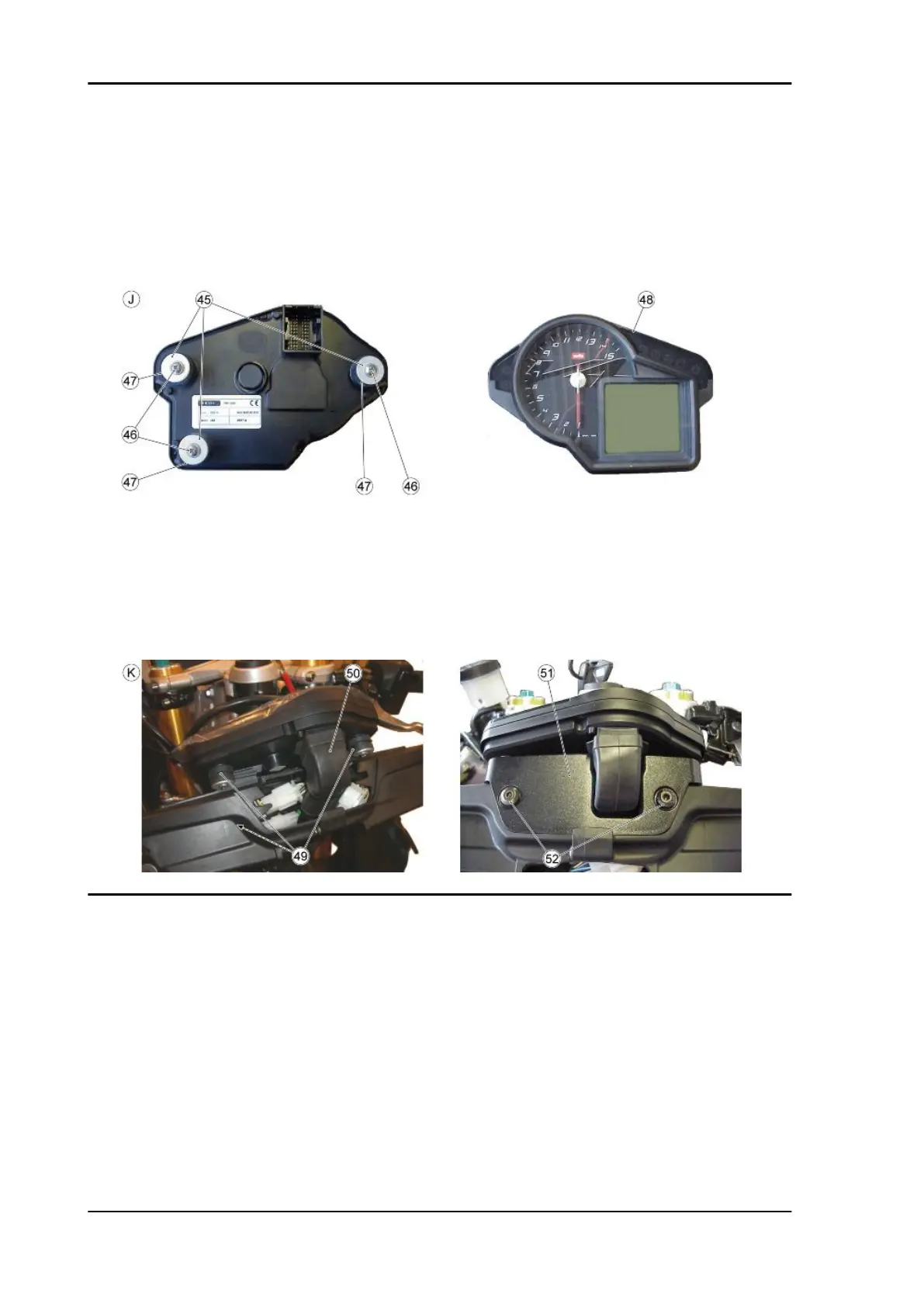

TABLE J - INSTRUMENT HOLDER ARCH BRACE AND FRONT PART
45. Rubber ring (x3)
46. Screw (x3)
47. Washer (x3)
48. Instrument panel
TABLE K - INSTRUMENT HOLDER ARCH BRACE AND FRONT PART
49. Insert the instrument panel rubber rings in their seats on the arch brace.
50. Instrument panel connector
51. Instrument panel mounting cover
52. Screw
TABLE L - INSTRUMENT HOLDER SUPPORT AND FRONT PART
Right side
Check that the cable grommets are not tensioned on the right and left cable grommet during
steering rotation.
53. Cable harness routing to right handlebar control
54. Front stop switch cable harness routing
55. Rubber clamp
56. Cable grommet
57. Red reference tape on the right handlebar control cable harness in correspondence of the cable
grommet.
Electrical system RSV4 Factory a-PRC
ELE SYS - 108
