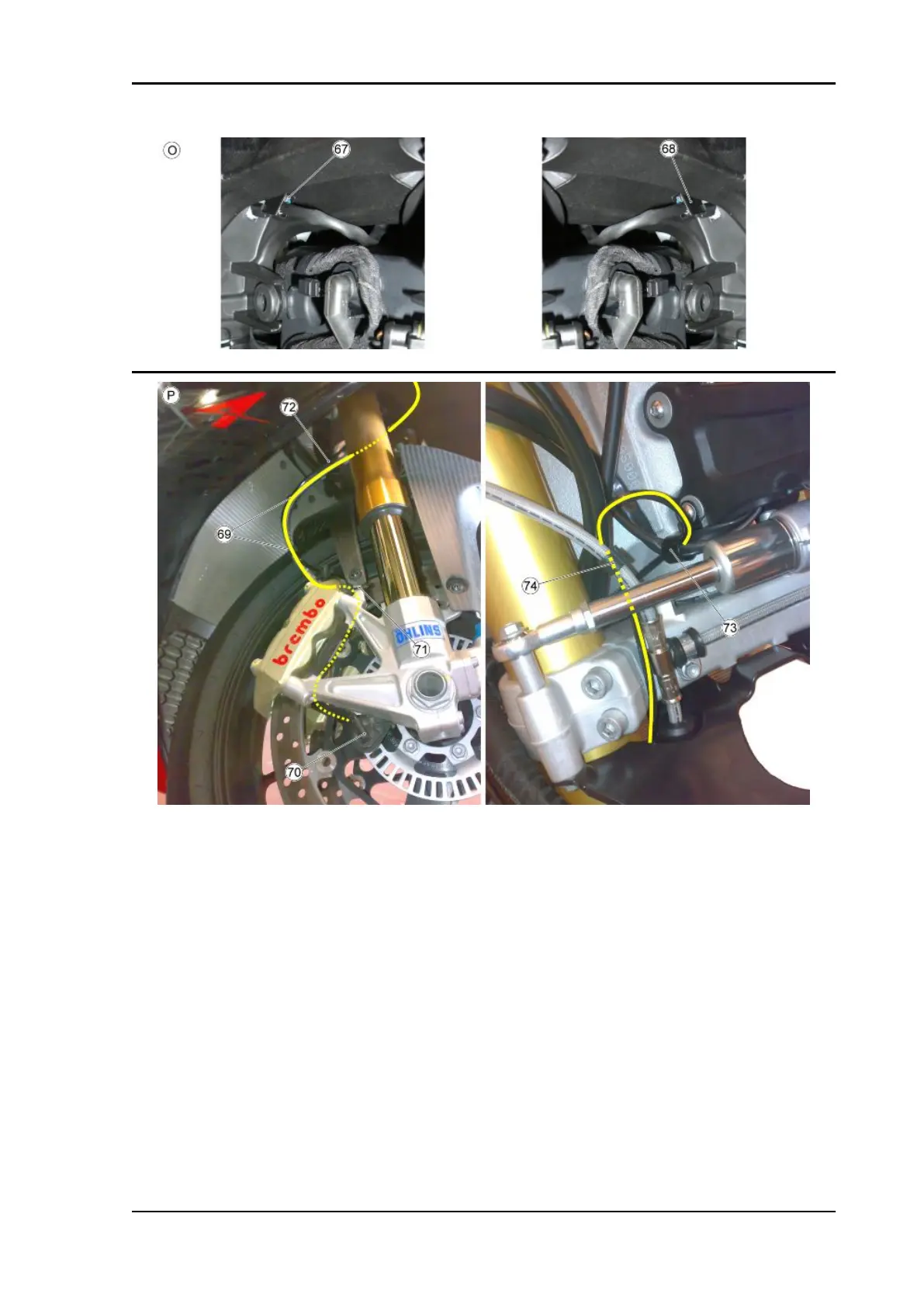

TABLE P - FRONT SPEED SENSOR
69. Cable grommet
70. Front speed sensor
71. Clamp
72. Front speed sensor cable harness routing
73. Speed sensor cable harness routing inside the cable grommet, between throttle cables and frame
74. Cable grommet
Ensure that the cable grommet (74) is not interfering with the steering damper during its move-
ment
RSV4 Factory a-PRC Electrical system
ELE SYS - 111
