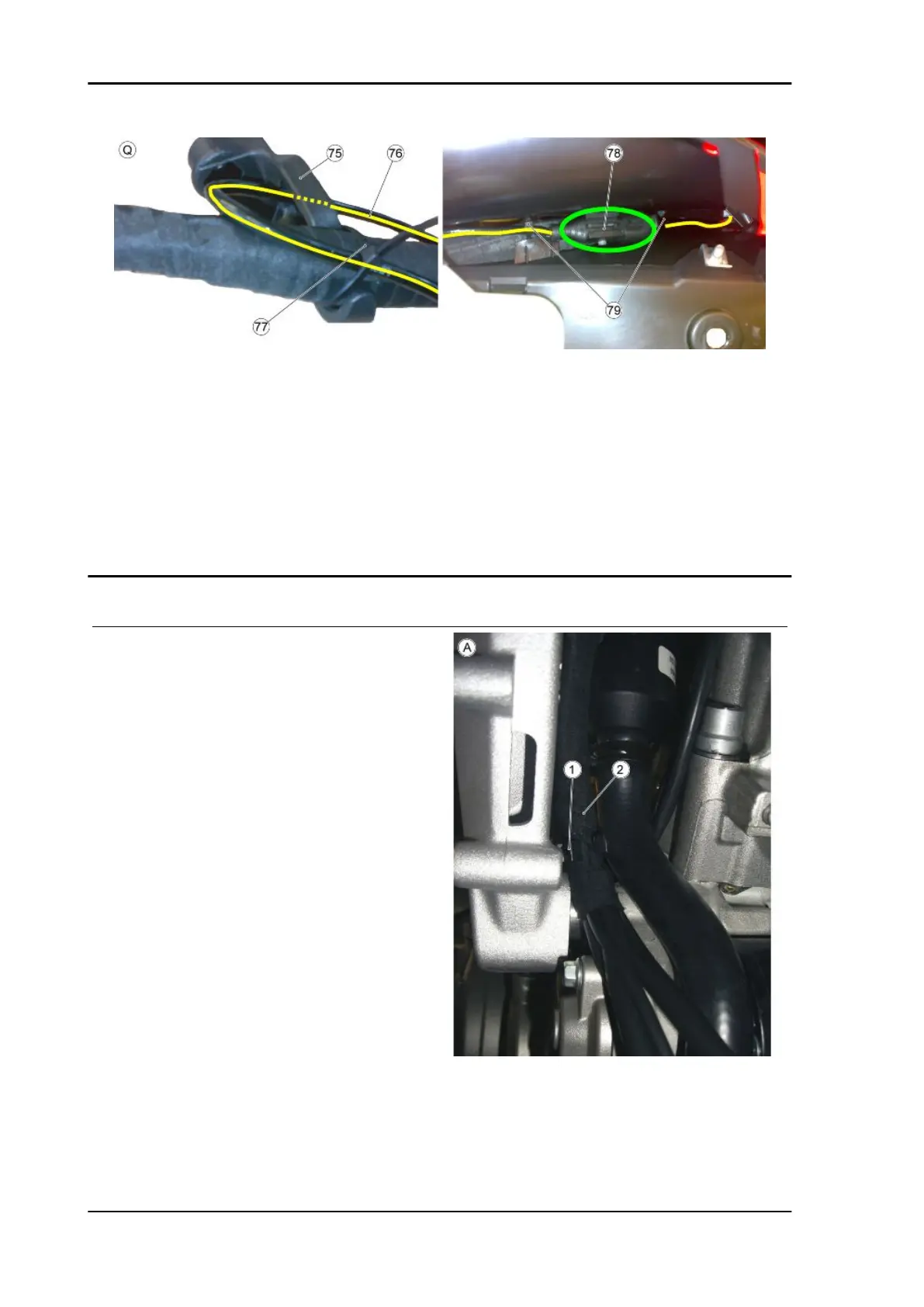

TABLE Q - FRONT SPEED SENSOR CONNECTOR POSITION
75. Radiator support
76. Front speed sensor cable harness
77. Clamp
Route cable harness on clutch cable grommet and tie it together with the front speed sensor
78. Front speed sensor connector
79 Clamps
Central part
TABLE A - RADIATOR AREA
Right side
1. Cable grommet
2. Vehicle cable harness
Electrical system RSV4 Factory a-PRC
ELE SYS - 112
